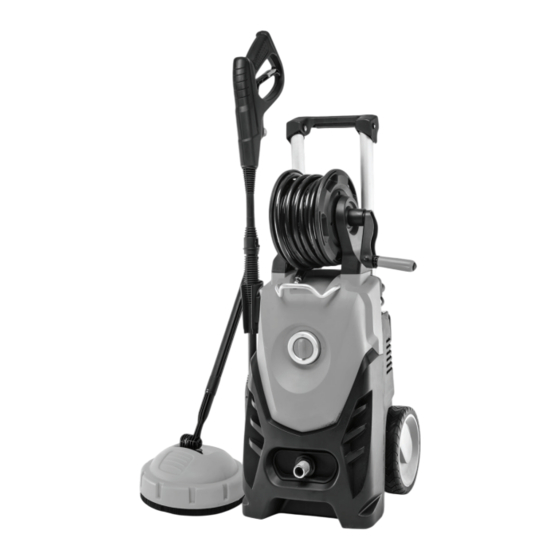

PRESSURE WASHER
Instruction Manual
WARNING!
Protect yourself and others by observing all safety
information, warnings and cautions. Failure to comply
with instructions could result in personal injury and/or
damage to product or property.
Please retain instructions for future reference!
Hotline: 1300 418 640
Monday/Friday: 9.00am to 4.30pm
Saturday: 9.00am to 3.00pm
Email: service@actionspares.com.au
Model: EW U15

Advertisement

Table of Contents
loading

Related Manuals for Yard force EW U15

Summary of Contents for Yard force EW U15

  • Page 1 Model: EW U15 PRESSURE WASHER Instruction Manual WARNING! Protect yourself and others by observing all safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference! Hotline: 1300 418 640 Monday/Friday: 9.00am to 4.30pm...
  • Page 2 Read this manual carefully prior to assembling and operating the pressure washer. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
  • Page 3 Fig. 1 Fig. 2...
  • Page 4 Fig. 4 Fig. 3 Fig. 6 Fig. 5 Fig. 8 Fig. 7 Fig. 10 Fig. 9 <40...
  • Page 5 Fig. 12 Fig. 11 Fig. 14 Fig. 13 Fig. 16 Fig. 15 Fig. 18 Fig. 17...
  • Page 6 Fig. 20 Fig. 19 Fig. 21...

  • Page 7: Table Of Contents

    EW U15 Instruction Manual CONTENTS Intended use Parts description Package contents Symbols Safety warnings Assembly and preparation Operation Cleaning, maintenance & storage Troubleshooting Technical data Warranty...

  • Page 8: Intended Use

    WARNING: Read instruction manual carefully before using this pressure washer. Failure to follow the instructions may result in severe injury or damage to the pressure washer. Keep the instruction manual for future use. If you give the pressure washer to others, please ensure that the instruction manual is included. WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use...

  • Page 9: Package Contents

    PACKAGE CONTENTS Parts description (Fig. 2) 1 x Patio cleaner. 1 x Extension lance 1 x Turbo lance. 1 x Adjustable lance. 1 x Spray gun. 1 x Water inlet adapter. 1 x Nozzle cleaning pin. 1 x Instruction manual. 1 x Detergent bottle.

  • Page 10: Symbols

    SYMBOLS Symbols are used in this manual and/or on the product to attract your attention to possible risks. These symbols and the explanations that accompany them must be understood. WARNING! OR CAUTION! READ the user manual before using the pressure washer. Disconnect the mains plug immediately if the mains cable is damaged, has been badly twisted or is completely cut through and when the...
  • Page 11 SYMBOLS Do not connect to potable water without the use of a check valve. Rated sound power level. Double insulation, Class II pressure washer. Australian Regulatory Compliance Mark.

  • Page 12: Safety Warnings

    SAFETY WARNINGS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. This pressure washer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, lack of experience and knowledge.
  • Page 13 SAFETY WARNINGS To ensure pressure washer safety, use only original spare parts from the manufacturer or approved by the manufacturer. The pressure washer shall be disconnected from its power source during cleaning or maintenance and when replacing parts or converting the pressure washer to another function.
  • Page 14 SAFETY WARNINGS Do not overreach or stand on unstable support. Keep good footing and balance at all times. Follow the maintenance instructions specified in the instruction manual. Always wear protective clothing and safety glasses. Loose particles and other debris are propelled at high speed by the water jet.
  • Page 15 SAFETY WARNINGS Do not carry the pressure washer with your finger on the ON/OFF switch when it is connected to the mains. Remove the main plug from the plug socket if you are not using the pressure washer, when transporting it or when it is left unattended, when checking the pressure washer, cleaning it or removing blockages, when undertaking cleaning or maintenance work or...
  • Page 16 SAFETY WARNINGS Ensure that the mains voltage matches the information of the label. Before each use, check the pressure washer, power cable and plug for damage. Damaged cables, coupling and plugs or connecting leads not to be used. Remove the mains plug from the plug socket immediately if the mains cable is damaged or cut.

  • Page 17: Assembly And Preparation

    ASSEMBLY AND PREPARATION WARNING: Unplug the power cord before assembly. NOTE: A Phillips type screw driver will be required for assembly of the pressure washer. Follow these steps in conjunction with Fig. 1 & 2. Insert the hose wheel handle (J) into the installation hole at the side of the hose wheel and press in firmly until the handle lock into position.

  • Page 18: Operation

    OPERATION WARNING! Before switching on the pressure washer, make sure that the pressure washer is completely assembled and all the hoses are properly connected. WARNING! Make sure the pressure washer stands on flat ground in a secure and stable position. WARNING! Hold the spray gun and the lance with both hands when using.
  • Page 19 OPERATION STARTING THE PRESSURE WASHER (FIG. 14 & 15) - Check that the water supply is turned on. - Check that the pressure washer and high pressure hose have been primed. - Engage the trigger lock on the spray gun to stop accidental operation. - Plug the pressure washer into the mains power outlet.
  • Page 20 OPERATION NOTE: The pressure washer cannot dispense detergent in high pressure mode. CAUTION! Before using the pressure washer to clean patio paving slabs it is advisable to test a small area first, the use of a pressure washer could damage the surface.

  • Page 21: Cleaning, Maintenance & Storage

    CLEANING, MAINTENANCE & STORAGE WARNING! Before cleaning, maintenance or storing, make sure that the pressure washer ON/OFF switch is in the OFF position, the power plug is removed from the electrical supply, the water supply has been turned off, the water supply hose is disconnected and any residual pressure in the lance and high pressure hose has been released.

  • Page 22: Troubleshooting

    TROUBLESHOOTING WARNING! Faults that cannot be rectified with the help of the following table must be referred to an authorised service centre. Problem Possible cause Possible solution No Power. Check power outlet is turned ON. Residual pressure in high Press the gun trigger on spray gun. pressure hose.

  • Page 23: Technical Data

    TECHNICAL DATA Model No. EW U15 Rated input voltage 230-240V~, 50 Hz Rated input power 2000 W Rated pressure 1600 PSI / 11 MPa Max. pressure 2200 PSI / 15.2 MPa Max inlet pressure 87 PSI / 6 Bar Rated Flow rate 5.5 L/min...

  • Page 24: Warranty

    WARRANTY WARRANTY This product is covered by a 1 year parts and labour warrant against manufacturing defects. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
