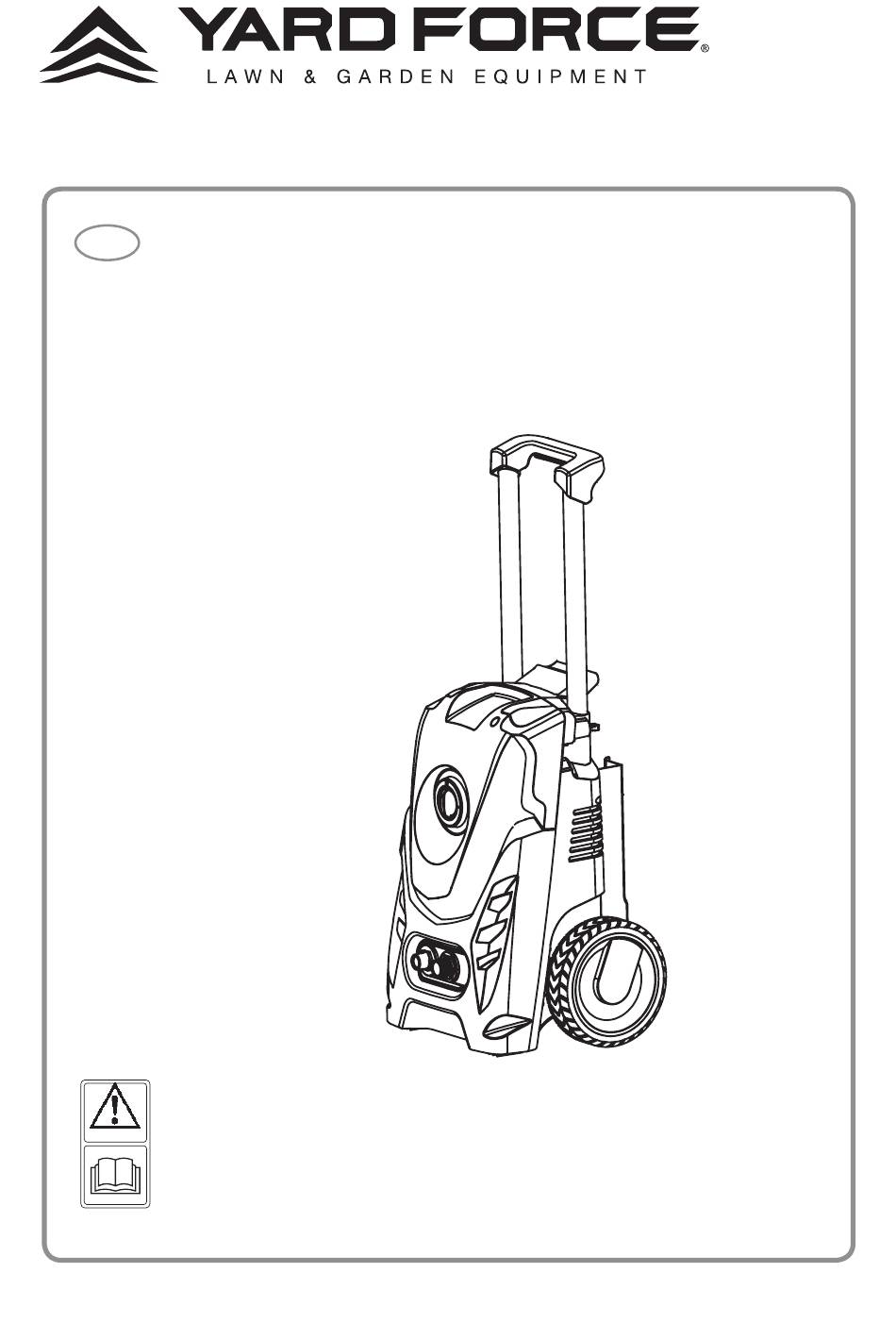

- Page 1 EW U13A Q1W-SP23-1900 1800W HIGH PRESSURE WASHER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 2 Read this manual carefully prior to assembling and operating the pressure washer. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
- Page 4 <40 C(104...
- Page 5 High pressure Low pressure...
-
Page 6: Table Of Contents
EW U13A Original Instruction CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting CE declaration... -
Page 7: Intended Use
INTENDED USE The machine is intended for cleaning the outside walls, facades, terraces, footpaths, garden equipment, machinery, vehicles and tools. If required, you can also use the machine with added household cleaning agents. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. - Page 8 GENERAL SAFETY WARNINGS • The electric supply connection should be made by a qualified electrician and comply with IEC 60364-1. It is recommended that the electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30ms or a device that will prove the earth circuit.
- Page 9 GENERAL SAFETY WARNINGS • WARNING: Water that has flowed through backflow preventers is considered to be non-potable. • WARNING: The machine should be disconnected from its power source during cleaning or maintenance and when replacing parts or converting the machine to another function by removing the plug from the socket-outlet.
-
Page 10: Product Safety Warnings
PRODUCT SAFETY WARNINGS WARNING! When using the product, the safety rules must be followed. For your own safety and that of others please read these instructions before operating the product. Please keep the instructions safe for later use. Training • Read the instructions carefully and ensure that you are familiar with the controls and the proper use of the product. - Page 11 PRODUCT SAFETY WARNINGS be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60 mm above the ground. • WARNING: The appliance is not designed for connecting to tap water.
- Page 12 PRODUCT SAFETY WARNINGS • Always disconnect the product from the power supply: - When leaving the product unattended. - Before clearing a blockage. - Before checking, cleaning or working on the product. - When the cord becomes damaged or tangled. - Whenever the product starts vibrating abnormally.
- Page 13 PRODUCT SAFETY WARNINGS TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. • Do not use the product if the cord is damaged or worn. • Do not expose the product to rain. Maintenance and storage • Disconnect the product from the power supply (i.e. remove the plug from the power supply or the battery pack) and check for damage after use.
- Page 14 PRODUCT SAFETY WARNINGS • Only use the product as intended by its design and these instructions. • Ensure that the product is in good condition and well maintained. • Keep a tight grip on the handles/gripping surface. • Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Page 15 PRODUCT SAFETY WARNINGS • Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained. • Injuries and damage to property due to broken application tools or the sudden impact of hidden objects during use.
-
Page 16: Symbols
PRODUCT SAFETY WARNINGS pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns the pump off and, the high-pressure jet stops. If the lever is pulled the pump is turned on again. Flow monitors DO NOT alter the original diameter of the spray head nozzle - HAZARDOUS ALTERATION OF OPERATING PERFORMANCE. - Page 17 SYMBOLS WARNING: Be sure to read and understand all safety instructions in this operator’s manual, including all safety alert symbols such as “DANGER”, “WARNING”, and “CAUTION” before using this tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.
- Page 18 SYMBOLS Disconnect the mains plug immediately if the cable is damaged, has been badly twisted or is completely cut through. Also disconnect the mains plug when the machine is left unattended. Double insulation. Appliance not suitable for connection to the potable water mains (kitchen tap).
-
Page 19: Technical Data
TECHNICAL DATA Input voltage rating 230 V~, 50 Hz Input power 1800 W Working pressure 10 MPa Max pressure 13 MPa Flow rate 5.2 l/min IP number IPX5 Safety class Class II Inlet pressure 0.6 MPa Supply water temperature (max.): Measured sound pressure level (L 80 dB(A), K=3 dB(A) Measured sound power level (L... -
Page 20: Description Of Product
DESCRIPTION OF PRODUCT Parts description (See FIG.A) Spray gun Gun holder Water outtake Water intake On/Off switch Carrying handle Needle Detergent Bottle Check the delivery parts (See FIG.B) Remove the machine from its packaging carefully and make sure that the following parts are present: Detergent bottle Spray gun holder... -
Page 21: Installation
INSTALLATION WARNING: Pull out mains plug before carrying out any work on the equipment and use only original parts. Before starting any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture. -
Page 22: Operation
OPERATION WARNING: Wear suitable clothing, ear and eye protection when working with the equipment. Ensure that the equipment is functional before each use. Ensure that the mains voltage value matches the label on the equipment. Check the condition of the machine: –... - Page 23 OPERATION Hold the hand-held spray gun and the jet tube firmly with both hands. Unlock the safety button and press the trigger on the handheld spray gun. The high-pressure pump starts running as soon as you operate the hand-held spray gun. The high-pressure pump stops running as soon as you release the trigger on the hand-held spray gun.
-
Page 24: Maintenance And Storage
MAINTENANCE AND STORAGE Overview of cleaning Clean the machine. Wipe the unit with a slightly damp cloth. Do not clean the machine using a high-pressure water jet. Clean the high-pressure nozzle with needle. (Fig. O) The pressure washer is equipped with a water filter to protect the pump. If the filter is not kept clean, the water flow to the machine will be restricted and the pump may be damaged. -
Page 25: Troubleshooting
TROUBLESHOOTING WARNING: Before performing any repair work, always ensure that the mains power cable has been unplugged. WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially when handling sharp objects. Symptom Cause Solution ON/OFF switch is in the “OFF” Turn switch to the “ON”... - Page 26 TROUBLESHOOTING Symptom Cause Solution Detergent container is empty. Add more detergent. Detergent bottle or suction Check connections. tube not properly connected. Dilute detergent. Detergent is too thick. Run warm water through filter to remove Filter on detergent suction tube build-up. is clogged.
-
Page 27: Ce Declaration
Unit A&B, Escrick Business Park Escrick, York YO 19 6FD Declare that the product: Machine Description: 1800W High Pressure Washer Q1W-SP23-1900 / EW U13A Function: Clean the walls of buildings etc. Complies with essential health and safety requirements of the following directives:... - Page 28 MEROTEC GmbH, Otto-Brenner-Straße 8, 47877 Willich/ Deutschland Declare that the product: Machine Description: 1800W High Pressure Washer Q1W-SP23-1900 / EW U13A Function: Clean the walls of buildings etc. Complies with essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC...
- Page 29 59 bis Rue du Mûrier, 37540 Saint Cyr Sur Loire, France Declare that the product: Machine Description: 1800W High Pressure Washer Q1W-SP23-1900 / EW U13A Function: Clean the walls of buildings etc. Complies with essential health and safety requirements of the following directives:...
