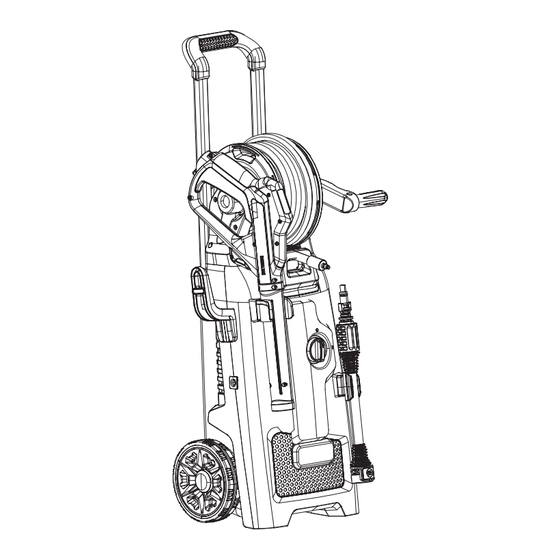

2200W HIGH PRESSURE WASHER
Original Instructions
READ & UNDERSTAND INSTRUCTION MANUAL
Save all warnings and instructions for future reference.
EW U15E
Q1W-SP01-2175CA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW U15E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yard force EW U15E

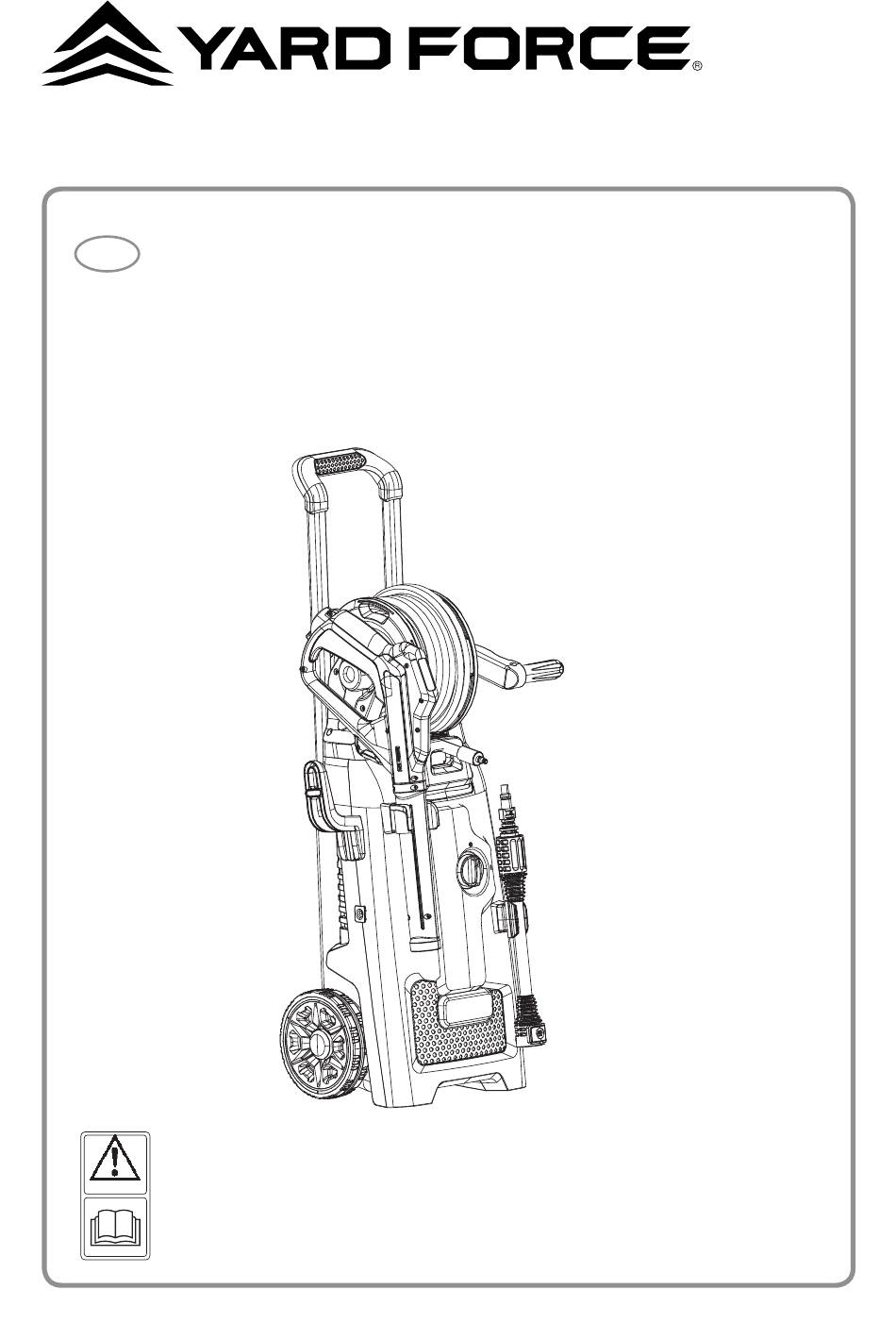

  • Page 1 EW U15E Q1W-SP01-2175CA 2200W HIGH PRESSURE WASHER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
  • Page 2 V 1.0...
  • Page 5 < 40 °C (104 °F)
  • Page 7: Table Of Contents

    EW U15E Original Instructions CONTENT Intended use Safety Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting Declaration of conformity Disposal...
  • Page 8: Intended Use

    INTENDED USE The washer is designed only for cleaning façades, patios, walkways, garden tools, machines, vehicles, tools, etc. It is only intended for private use and is not suitable for commercial use. Use the washer only as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury.
  • Page 9 SAFETY the leakage current to the earth exceeds 30 mA for 30 ms, or that it be equipped with an earth tester. - Connect the washer only if the mains voltage of the socket corresponds to the rating plate specification. - Connect the washer only to an easily accessible socket to allow the washer to be disconnected from the mains quickly in the event of a fault.
  • Page 10 SAFETY the mains plug. - Never use the mains cord as a carrying handle. - Keep the washer, mains plug and mains cord away from open flames and hot surfaces. - Lay the mains cord so that it does not pose a tripping hazard.
  • Page 11 SAFETY - This washer must not be used by children. Children must be supervised to ensure that they do not play with the device. - Do not leave the washer unattended during operation. - Do not let children play with the packaging. Children may get caught in it when playing and suffocate.
  • Page 12 SAFETY - Do not use the washer within range of other persons unless they are wearing protective clothing. - Do not point the washer at yourself or other persons to clean clothing or footwear. - Before first start-up, familiarise yourself with the control elements and safety functions of the washer and the spray gun.
  • Page 13 SAFETY WARNING! Risk of injury! Even if you use this washer in compliance with applicable regulations, there are always residual risks. The following risks associated with the construction and design of this washer may occur: - Injury to health attributed to hand and arm vibrations if the washer is used over a prolonged period of time or if it is not guided and maintained properly.
  • Page 14 SAFETY NOTE! Risk of damage! Improper handling of the washer may result in damage to the washer. - Do not use the washer if a connection line or important parts of the washer are damaged, e.g. safety equipment, high pressure hoses, spray gun, etc. - High-pressure hoses, fittings and couplings are important for guaranteeing the safety of the device.
  • Page 15: Symbols

    SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures.
  • Page 16 SYMBOLS Caution! Read the user manual prior to start-up! This symbol indicates that the mains plug must be disconnected from the power supply immediately if the cord is damaged, twisted or knotted, if it has been severed, or if the washer is left unsupervised, even for a short period of time.
  • Page 17 SYMBOLS This symbol indicates the loudness of the washer during operation. This symbol indicates that the device complies with the protection class II. IPX5 Protection against water jets from all directions Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all the applicable Community regulations of the European Economic Area.
  • Page 18: Technical Data

    TECHNICAL DATA Model EW U15E Power consumption 2200W Operating pressure: max. pressure 16.5 MPa (165 bar) Nominal pressure: 11.5MPa (115 bar) Input pressure/temperature max. 0,6 MPa (6 bar) / 40 °C Sound power level = 85 dB(A) K=1.88 dB(A) Guaranteed sound power level...
  • Page 19: Description Of Product

    DESCRIPTION OF PRODUCT Parts description (Fig. A) Hand crank (foldable) High-pressure hose Spray gun Cable hook ON/ OFF switch Extension tube Wheels Water inlet Turbo nozzle 10. Vario pressure nozzle 11. Carry handle 12. Cleaning pin Check the delivery parts (Fig. B) Remove the appliance from its packaging carefully and make sure that all of the following parts are present: High pressure washer...
  • Page 20: Installation

    INSTALLATION Assembly the accessories (Fig. C) Install the cord hook onto the housing left side Install the gun holder on the front housing. Install the extension lance on the front decorating panel. WARNING! Rist of injury! The washer could be inadvertently activated and cause injury. Ensure that the washer is disconnected from the mains before you assemble the washer.
  • Page 21: Operation

    OPERATION NOTE! Risk of damage! Using the washer without water could result in damage to the washer. Never operate the washer without water, as dry operation could damage the pump. Use a water filter if the supplied water is contaminated. Fully open the water tap for the water intake.
  • Page 22 OPERATION Fill the suction hose with water and allow all of the entrapped air to escape. Connect the suction hose to the washer. Remove all attachments. Switch on the washer and press the trigger until the washer discharges a steady stream of water.
  • Page 23 OPERATION The turbo nozzle produces a rotating high-pressure jet that can also get rid of stubborn dirt. Place the turbo nozzle on the quick lock of the spray lance in such a way that the small rectangular elevation fits exactly into the rectangular recess in the spray lance. Press the turbo nozzle down firmly on the spray lance.
  • Page 24: Maintenance And Storage

    MAINTENANCE AND STORAGE WARNING! Risk of electric shock! Cleaning and maintenance of the washer while it is connected to the mains may lead to an electric shock. Each time before cleaning or maintenance work, switch the washer off and disconnect it from the mains.
  • Page 25 MAINTENANCE AND STORAGE Storage NOTE! Risk of damage! There is always some leftover water in the washer and the pump that could result in damage to the washer. Do not store the washer at temperatures below the freezing point, as this may result in frost damage.
  • Page 26: Troubleshooting

    TROUBLESHOOTING WARNING! Tampering with the washer could pose a risk to life from electric shock, damage the washer and void warranty claims. Do not make any modifications to the washer. The following table provides assistance in the event of malfunctions. If the solutions provided here are unsuccessful, contact the manufacturer or an authorised service centre at the service address specified on the warranty card.
  • Page 27 TROUBLESHOOTING Fault/ Cause Remedy malfunction Clean the high-pressure The high-pressure nozzle is nozzle; see chapter “Cleaning clogged. the high-pressure nozzles”. Large fluctuations in pressure. There is only insufficient Check the water pressure. water pressure. The water inlet hose is Check the water inlet hose. kinked.
  • Page 28: Declaration Of Conformity

    MEROTEC GmbH Otto-Brenner-Str. 8, D-47877 Willich, Germany Declare that the product: Machine Description: High Pressure Water Cleaner Model no.:EW U15E / Q1W-SP01-2175CA Function: Clean the walls of building etc. Complies with the following directives: 2006/42/EC Machinery Directive 2014/30/EU EMC Directive...
  • Page 29 Unit A&B Escrick Business Park Escrick, York YO19 6 FD/ United Kingdom Declare that the product: Machine Description: 2200W High Pressure Washer Model no.:EW U15E / Q1W-SP01-2175CA Function: Clean the walls of buildings etc. Complies with the essential health and safety requirements of the following directives:...
  • Page 30: Disposal

    DISPOSAL Disposing of packaging Dispose of packaging according to type. Sort the paperboard and cardboard as waste paper and the film as recyclable material. Disposing of the washer Applicable in the European Union and other European countries with systems for separate collections of recyclable waste. This symbol indicates that this product may not be disposed of together with domestic waste in compliance with the (2012/19/EU) Regulation pertaining to waste electrical and...
