Servend MD-175 Quick Start Manual

Duratran/medallion replacement

Hide thumbs Also See for MD-175:

Table of Contents

Download this manual

Duratran/Medallion Replacement

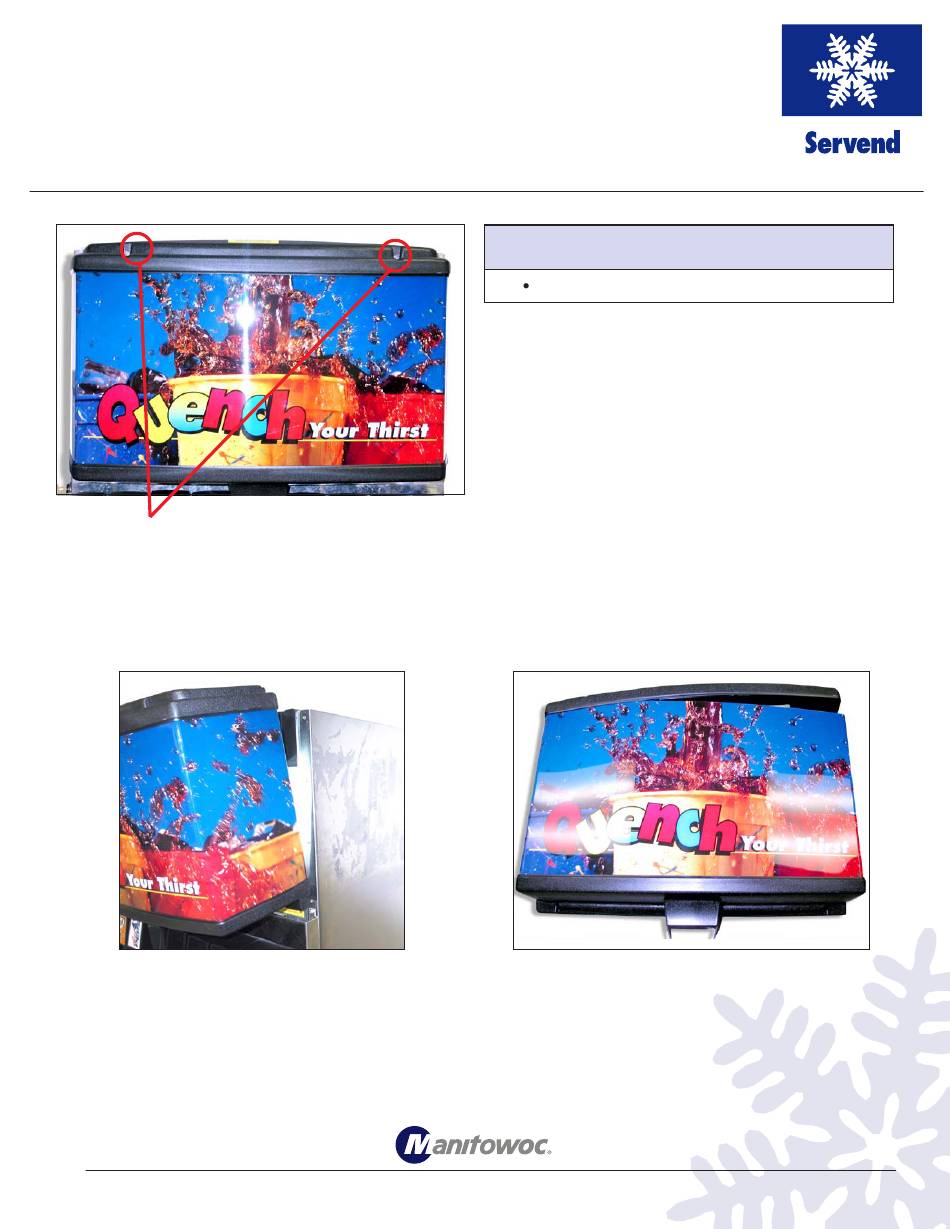

FIGURE 1

Knurl Screws

FIGURE 2

If you have any questions concerning this bulletin, please contact Manitowoc Beverage Equipment's Technical Service Department at (800) 367-4233

MD-175

Flat head screw driver

1. Disconnect power to the dispenser.

2. Remove full lid or manual fill lid from unit.

3. Remove the 2 Knurl screws from top of merchandiser.

(See figure 1)

4. Remove the merchandiser from the unit by pulling the top

of the merchandiser up and forward then push the mer-

chandiser upward to release from unit. (See Figure 2)

Note: The Merchandiser for the MD-175 consist of three

parts that push together - (Merch Top, Merch Bottom,

and the center is the medallion. (See figure 5)

5. Pull the top of the merchandiser from the Medallion.

(See Figure 3)

FIGURE 3

Foodservice Group

Tools Required

IN-SV04-03

REV 05/14/04
