Chapter 3
Device Management

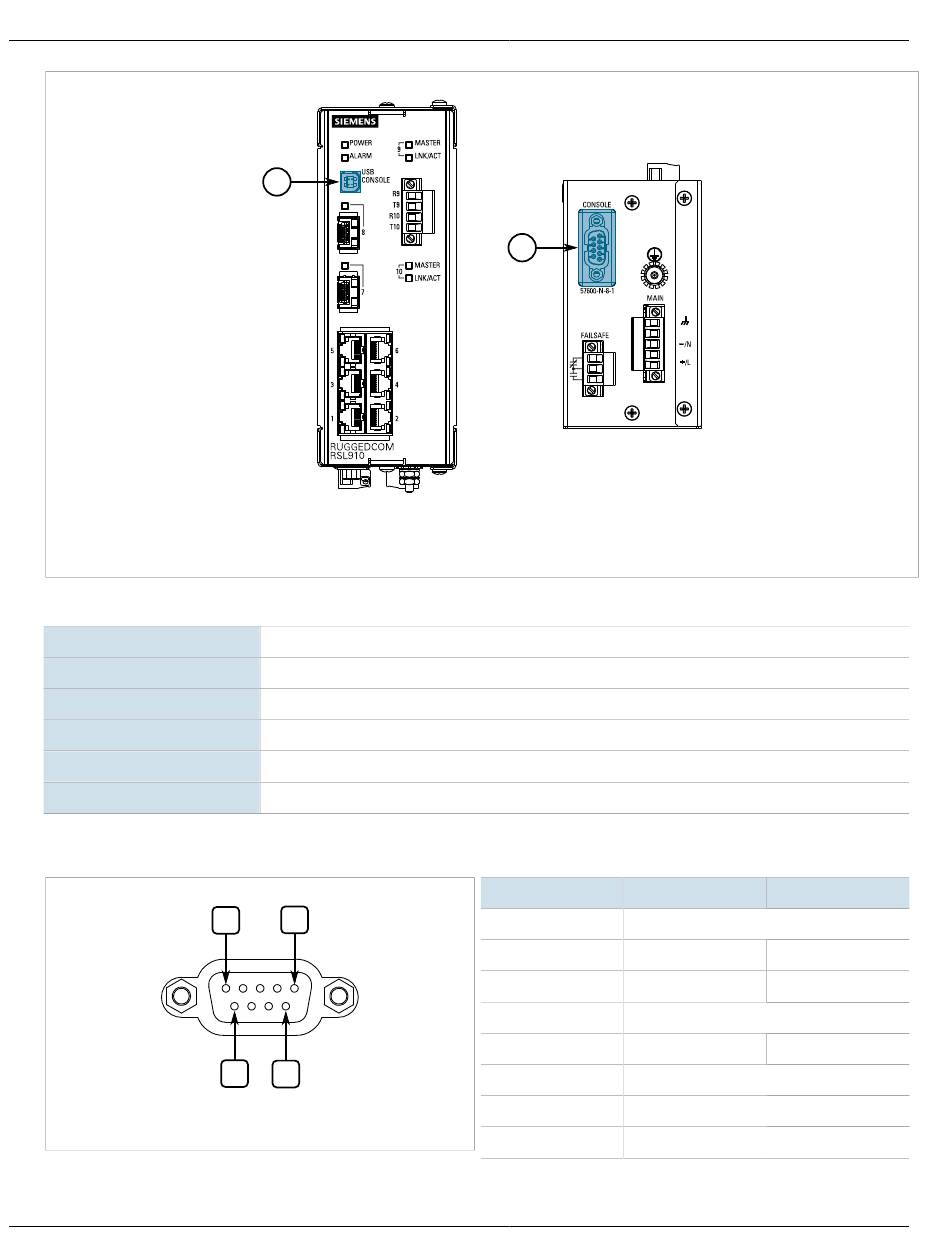

Figure 10: Console Ports
1. USB Type-B Console Port 2. Serial DB9 Console Port
Use the following settings to connect to either port:
Speed
Data Bits
Stop Bit
Parity
Flow Control
Terminal ID
The serial console port implements RS232 DCE (Data Communication Equipment) on a DB9 connector. The
following is the pin-out for the port:
Figure 11: Serial DB9 Console Port
18
1
57600 baud
8
1
None
Off
VT100
1
5
9
6
2
Pin
Name
a
1
Reserved (Do Not Connect)
2
TX
3
RX
a
4
Reserved (Do Not Connect)
5
GND
a
6
Reserved (Do Not Connect)
b
7
Reserved (Do Not Connect)
b
8
Reserved (Do Not Connect)
RUGGEDCOM RSL910
Installation Guide
Description
Transmit Data
Receive Data
Signal Ground
