FCC-XG-19620-3 / BG03-300A
USER MANUAL
Assembly, maintenance and safety
!
OUTDOOR USE ONLY
READ THE MANUAL, FOLLOW THE ASSEMBLY
INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR
BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE
USING THE APPLIANCE!
SCAN QR CODE AND
SCAN QR CODE FOR
REGISTER BARBECUE FOR
EXTENDED WARRANTY
EX
WARRANTY:
BARBECUE
ASSEMBLY VIDEO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-GRILL MASTER FCC-XG-19620-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for FCC BBQ X-GRILL MASTER FCC-XG-19620-3

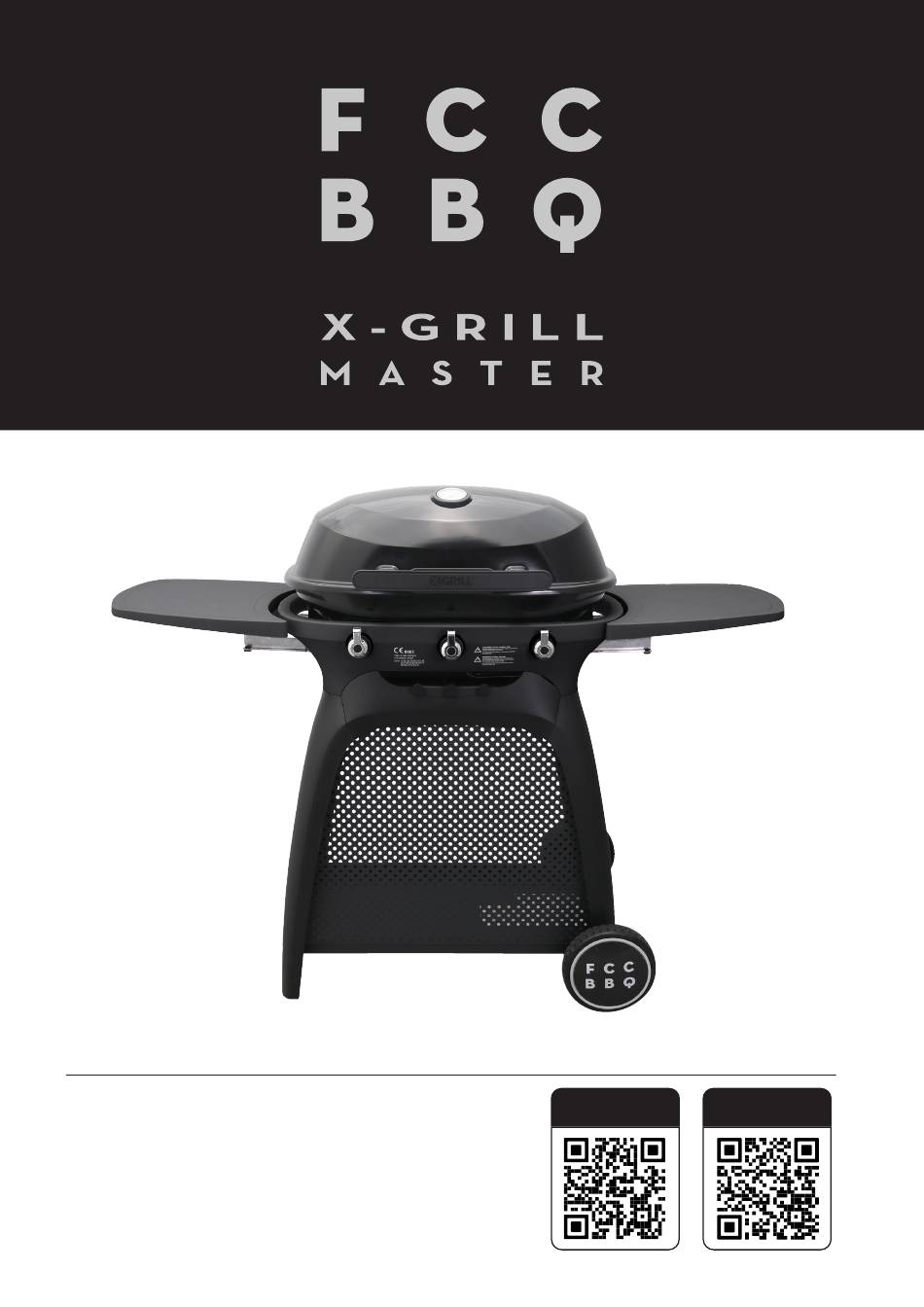

  • Page 1 FCC-XG-19620-3 / BG03-300A USER MANUAL SCAN QR CODE AND SCAN QR CODE FOR REGISTER BARBECUE FOR BARBECUE Assembly, maintenance and safety EXTENDED WARRANTY ASSEMBLY VIDEO WARRANTY: OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!
  • Page 2: The Story Of Fcc

    It´s fantastic flavors, it´s tough, it´s cool and it’s love for the most amazing cooking method in the world! 2023 will be the sixth year for FCC BBQ, and we´re very proud and humble for the success and what we as a company have achieved.
  • Page 3 Hans-Kristian, Mathias, Trond and Tor...
  • Page 4: Table Of Contents

    C O N T E N T S The story of FCC................... 2 Warnings ......................5 Technical Data ....................6 Read before assembly ................7 Parts List ......................8 Exploded Drawing ..................9 Assembly Instructions ................10 Moving the grill .....................17 Regulator and Hose - Connecting the gas ........18 Check for leaks before using the barbecue ........19 Last Check ....................20 Lighting Instructions ...................21...
  • Page 5: Warnings

    W A R N I N G S ! ● ACCESSIBLE PARTS OF THE BARBECUE BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE BARBECUE IS INTENDED FOR OUTDOOR USE ONLY IN WELL-VENTILATED AREAS.
  • Page 6: Technical Data

    T E C H N I C A L D A T A Total Heat input: 8.2kw (propane) Gas consumption: 547gram/hour Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region.
  • Page 7: Read Before Assembly

    If the barbecue is damaged during transport, do not assemble the barbecue before contacting your dealer or support@fccbbq.com. Transport damage to parts, varnish or enamel must be reported to the dealer or FCC BBQ before mounting and using the barbecue. If damage is reported after, there is a possibility that damage may have occurred during assembly.
  • Page 8: Parts List

    P A R T S L I S T CODE DESCRIPTION HANDLE BAKELITE HEAT SHIELD THERMOMETER THERMOMETER BASE RIGHT GRILL LEFT GRILL MIDDLE GRILL LEFT BURNER MID BURNER THE FIRE TANK RIGHT BURNER COLLECTOR BOX RIGHT SUPPORT SIDE TABLE LEFT SUPPORT SIDE TABLE FURNACE BODY SIDE TABLE CONNECTING PLATE ASSEMBLY...
  • Page 9: Exploded Drawing

    E X P L O D E D D R A W I N G HARDWARE CODE DESCRIPTION CODE DESCRIPTION ST4.2x10 Screw M6 Butterfly Nut ST4.2x14 Screw M4x8 Screw M5x65 Screw M8 Locking Nut M5 Spring Washer M8 Washer M5 Washer Hexagonal Wrench M6x25 Screw Wrench...
  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS A S S E M B L Y BG03-300A PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. Step 1: 将车架左右侧板(25) (27)用螺丝 A 分别固定在车架底板(26)左右两侧. Fix the left and right side panels (25) (27) of the frame to the left and right sides of the frame bottom plate (26) with screws A.
  • Page 11 A S S E M B L Y Step 3: 按图示用螺丝 A 将车架前板 (28) 固定在车架左右侧板和车架前横梁上, 用螺丝 A 将工具挂钩 (24) 固定在车架前横梁上. Fix the front panel (28) of the frame to the left and right side panels with screws A, and fix the tool hook (24) to the front cross of the frame also with screws A.
  • Page 12 A S S E M B L Y Step 5: 将车轮轴(30)穿过车轮(31)和车架右侧板,用 K,J 将其固定.(按图示用外六角扳手 M1 在卡槽 处将车轮轴固定,用 M2 卡住 J 顺时针转动将其锁紧) Pass the wheel axle (30) through the wheel (31) and the right side of the frame, and fix it with K, J. (As shown in the figure, use the hex wrench M1 to fix the wheel axle at the card slot and clamp it with M2.
  • Page 13 A S S E M B L Y 1 stk. 4stk. 4s tk. NOTE! TWO PERSONS IS RECOMMENDED WHEN LIFTING THE STOVE BODY. Place the frame assembly (15) on the frame as shown and secure it with H, G. Step 8: 按图示用螺丝...
  • Page 14 A S S E M B L Y Step 9: 用螺丝 E 将边台板组件固定在炉体组件左右两侧(用内六角扳手 L 顺时针将 E 锁紧). 1. Loosen the pre-assembled screws with the Allen key. 2. Carefully attach the side table to the left and right sides of the grill body (use Allen key to lock the screw). Step 10: 按图示用...
  • Page 15 A S S E M B L Y Step 11: 按图示将左烤网(6)中烤网(7)右烤网(5)平放在炉体上 NOTE! The pattern on the grill surface may vary and does not necessarily match the drawings. Place the grilling net (7) in the left grilling net (6) on the right Step 12: 将接油盒(20)平放在炉体下面.
  • Page 16 A S S E M B L Y Use screw (A) to fix the bracket that secures the gas intake connector.
  • Page 17: Moving The Grill

    M O V I N G T H E G R I L L IMPORTANT! NEVER MOVE THE GRILL BY HOLDING THE SIDE TABLE! To move the grill correctly, do the following: Gently lift the edge of the side table 45 degrees. Gently pull the side table to the edge about 20mm.
  • Page 18: Regulator And Hose - Connecting The Gas

    G A S L E A K T E S T FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE TO YOUR BARBECUE AND CAUSE PERSONAL INJURY. HOSE • Connect the gas hose to the gas inlet on the barbecue. Tighten well. •...
  • Page 19: Gas Leak Test

    FIXED INSTALLATIONS AND YOUR BARBECUE. If detected leakage cannot be rectified, do not attempt to cure leakage but consult your dealer or FCC BBQ Products support at support@fccbbq.com for help in solving the problem. ● LEAK TEST MUST BE DONE REGULARLY AND EVERY TIME THE GAS CYLINDER, REGULATOR OR HOSE IS REPLACED.
  • Page 20: Final Check

    L A S T C H E C K PLACEMENT OF THE TABLE TOP BARBECUE • Ensure that the barbecue is placed at least 150 cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. •...
  • Page 21: Lighting Instructions

    L I G H T I N G I N S T R U C T I O N S LIGHTING INSTRUCTIONS Set all control knobs to off. Open the lid. The lid must always be open when lighting the barbecue. Open the gas valve of the gas cylinder.
  • Page 22: Maintenance

    M A I N T E N A N C E KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. down on flame tamers and on the grease tray. IF A GREASE FIRE OCCUR Do not leave the barbecue when it is lit and close In case of grease fire, close the gas supply on the the gas supply as soon as possible if there is a sign regulator/barbecue and disconnect the regulator.
  • Page 23: Plastic Parts

    M A I N T E N A N C E FIRES CAUSED BY FAT, CAN DAMAGE THE METAL, PAINT AND ENAMEL. DAMAGE TO THE BARBECUE CAUSED BY FAT BURNING, IS NOT COVERED BY THE GUARANTEE AS IT IS DUE TO INCORRECT USE. CLEANING COOKING GRATE OG FLAME TAMERS All cleaning and maintenance must be performed...
  • Page 24: Advice, Tips And Safety

    • We recommend the use of FCC BBQ original covers for the best possible protection against rain, pollen and pollution. Remember that the barbecue must be completely dry and cold before applying the coating.
  • Page 25: Troubleshooting

    T R O U B L E S H O O T I N G PROBLEM POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace gas cylinder Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty...
  • Page 26 N O T E S...
  • Page 27 N O T E S...
  • Page 28: Warranty Claim

    WARRANTY CLAIM This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
