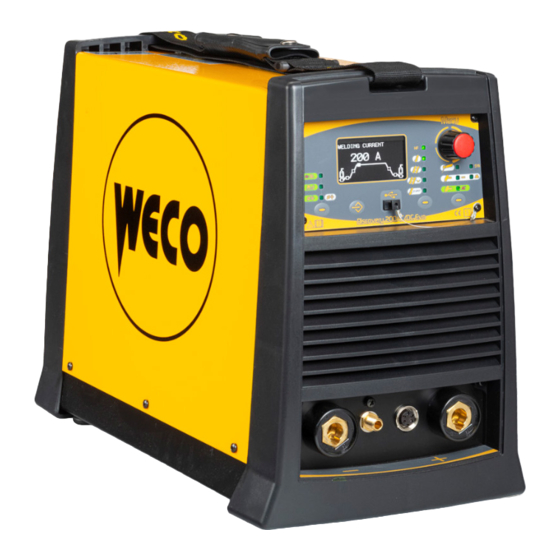

Discovery 200AC/DC Evo
Instruction manual
Translation of original instructions
ENG

Advertisement

Table of Contents
loading

Related Manuals for Weco Discovery 200AC/DC Evo

Summary of Contents for Weco Discovery 200AC/DC Evo

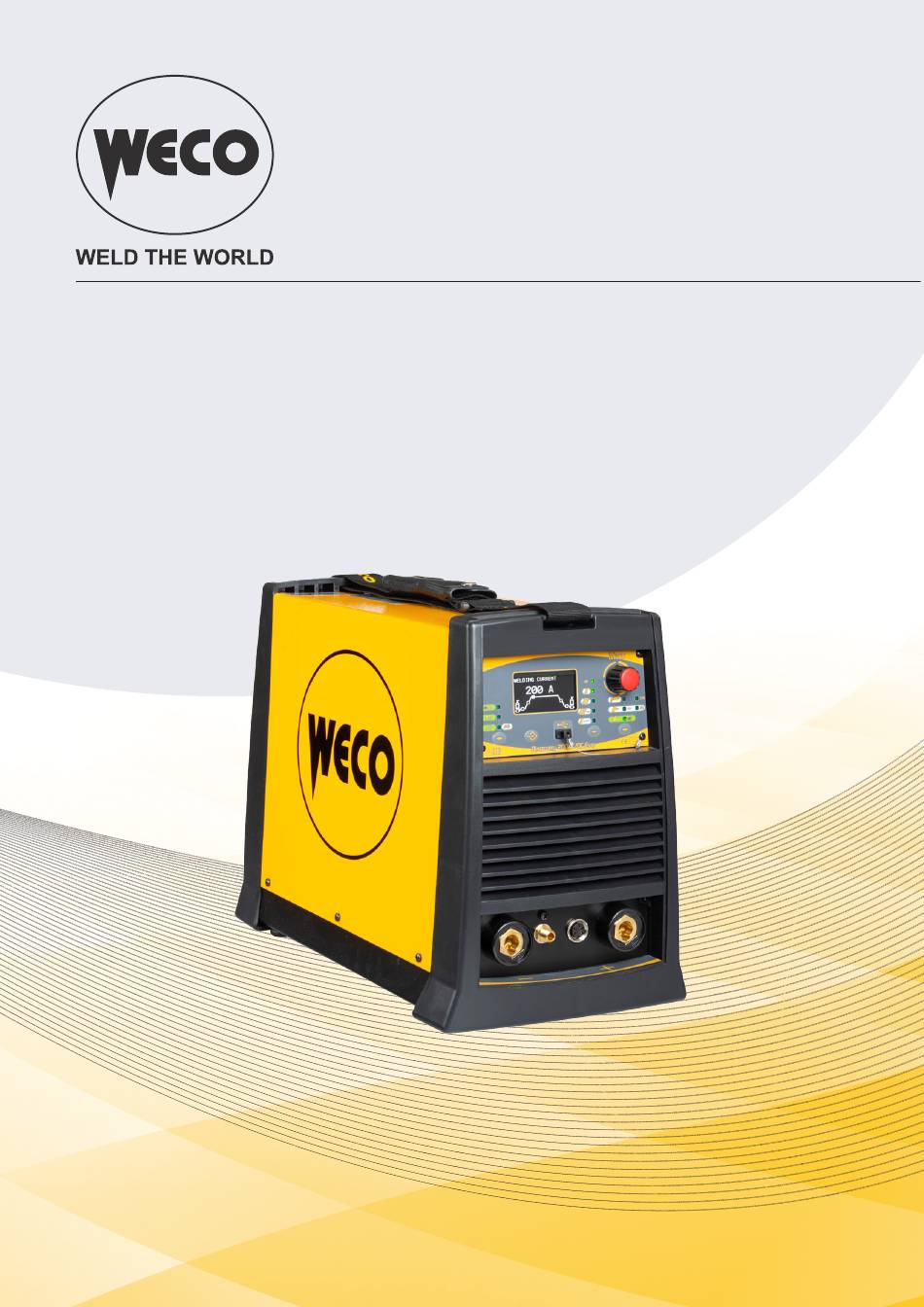

  • Page 1 Cod. 006.0001.2320 13/02/2023 V.1.0 Discovery 200AC/DC Evo Instruction manual Translation of original instructions...
  • Page 2 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH...

  • Page 3: Table Of Contents

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH INDEX INTRODUCTION ............................4 INTRODUCTION ............................5 INSTALLATION ............................6 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK ..............6 FRONT PANEL ............................. 6 REAR PANEL ............................... 7 PREPARING FOR MMA WELDING ......................8 PREPARING FOR TIG WELDING .......................

  • Page 4: Introduction

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH INTRODUCTION IMPORTANT! This handbook must be consigned to the user prior to installation and commissioning of the unit. Read the "General prescriptions for use" handbook supplied separately from this handbook before installing and commissioning the unit.

  • Page 5: Introduction

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 1.1 INTRODUCTION Discovery 200 AC/DC Evo is an advanced technology single-phase welding power source for AC and DC TIG welding operations. AC TIG functions are ideal for aluminium, magnesium and related alloys welding. AC TIG welding is optimized thanks to: Synergic arc ignition selection located on the front panel, it modifies the ignition according to electrode diameter. Advanced Soft AC-Square Waveform for outstanding welding quality through faster welding speed, bet- ter pool control and noise reduction. Mild steel, stainless steel and copper can be easily welded in DC TIG. Slow Pulse (0.1Hz-5.0 Hz) and Fast Pulse (5.0 Hz-250 Hz) are available in TIG DC. Special HF control provides 100 % rapid and precise arc ignition. Up to 3,25 mm diameter electrode welding is possible in MMA. Accessories/ancillary devices that can be connected to the unit: - Overcut device to protect the power source from power supply voltage spikes that could damage the electrical components.

  • Page 6: Installation

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH INSTALLATION DANGER! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. 2.1 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK The mains power supply features to which the equipment should be connected are given in chapter “12 TECHNICAL DATA” at page 56.

  • Page 7: Rear Panel

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 2.3 REAR PANEL ○ Remote control connector [Item 1]. ○ Connector for gas feed hose: gas flow from the cylinder to the power source [Item 2]. ○ Cooling unit power feeding connector [Item 3]. • Voltage: 230 V a.c. • Current output: 1.35 A • IP protection rating: IP20 (cap open) / IP66 (cap closed) DANGER! High voltage! If the socket is not connected to any devices always close the cap ○ Welding power source ON/OFF switch [Item 4].

  • Page 8: Preparing For Mma Welding

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 2.4 PREPARING FOR MMA WELDING 1. Set the welding power source ON/OFF switch to “O” (unit switched off). 2. Plug the power cable plug into a mains socket outlet. 3. Choose the electrode based on the type of material and thickness of the workpiece to be welded. 4. Insert the electrode in the electrode holder. 5. Connect the electrode holder cable to the welding socket based on the polarity requested by the type of electrode used. 6. Connect the plug of the ground clamp to the welding socket on the basis of the polarity required. 7. Connect the earth clamp to the workpiece being processed. DANGER! Electric shock hazard! Read the warnings highlighted by the following symbols in the “General prescriptions for use”.

  • Page 9: Preparing For Tig Welding

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 2.5 PREPARING FOR TIG WELDING NOTE: For the cooler to power source assembly procedure refer to the cooler instruction manual. 1. Set the welding power source ON/OFF switch to “O” (unit de-energized). 2. Plug the power cable plug into a mains socket outlet. 3. Connect the gas hose from the welding gas cylinder to the rear gas socket. 4. Open the cylinder gas valve. 5. Choose the electrode based on the type of material and thickness of the workpiece to be welded. 6. Insert the electrode in the TIG torch.

  • Page 10: User Interface

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH USER INTERFACE Discovery 200AC/DC Evo Menu Menu E1/S5 Q-SPOT CODE SYMBOL DESCRIPTION AC TIG mode: illumination shows that the following parameter can be set: AC FREQUENCY (Hz) AC TIG mode: illumination shows that the following parameter can be set: AC TIG BALANCE AC TIG mode / DC TIG mode: illumination shows that the following parameter can be set: ELECTRODE DIAMETER (mm) AC TIG mode: This LED flashes when the set welding current is too high in relation to the cho- sen electrode diameter.
  • Page 11 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH CODE SYMBOL DESCRIPTION This LED illuminates to show that the following welding mode is selected: PULSED DC TIG DC TIG mode: Press the button to select the DC TIG special functions. Possible choices:ELECTRODE DIAMETER AC TIG mode: Press the button to select AC TIG special functions. Possible choices: AC FREQUENCY – AC BALANCE - ELECTRODE DIAMETER Press the button to access the JOB MENU. AC TIG mode / DC TIG mode: This button selects the torch trigger procedure. This button selects the welding mode. -Keep the button pressed while powering on the power source: the button opens the SET-UP menu. -Press and release: the button selects the first level menu parameters. -Hold down for 3 seconds: the button opens the second level menu. When in the menu, press Menu Menu E1/S5 and release the button to select the parameters.

  • Page 12: Unit Power-Up

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH UNIT POWER-UP Set the welding power source ON/OFF switch to “I” to switch on the unit. The message appears on the following display: D1. FX.X = software version 200AC/DC F.X.X First power-up or power-ups following a RESET procedure The welding power source sets up for welding with the factory pre-sets. Subsequent power-ups The welding power source sets up for welding in the latest stable welding configuration that was active at the time of power-off. RESET (LOAD FACTORY SETTINGS) Menu Menu ACTIVATION SET-UP (14/15) ----------------------------------------------------- E1/S5 MAX CORR.UP SELECTION COUNTERS ***** RESET Q-SPOT OUTPUT The reset procedure involves complete restoration of the default values, parameters and memory set- tings set in the factory.
  • Page 13 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH PARTIAL RESET The reset procedure involves restoration of the parameter values and settings, except the following settings: - Settings of the SETUP menu. - Saved JOBS. TOTAL RESET The reset procedure involves complete restoration of the default values, parameters and memory set- tings set in the factory.

  • Page 14: Set Up (Initial Set-Up Of The Welding Power Source)

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH SET UP (INITIAL SET-UP OF THE WELDING POWER SOURCE) Menu Menu ACTIVATION SET-UP (1/15) ----------------------------------------------------- E1/S5 LANGUAGE SELECTION COOLING TYPE STARTING CURRENT Q-SPOT OUTPUT ○ Set the welding power source ON/OFF switch to “O” to switch the unit off. Menu Menu ○ Holding the S5 button down, turn the power source switch to “I” to start the unit [...
  • Page 15 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH Tab. 1 - Impostazioni di Setup IMPOSTAZIONE DEFAULT NOTE LANGUAGE ENGLISH ITALIANO FRANÇAIS DEUTSCH ESPAÑOL PORTUGUES DUTCH CESKY SRBSKI POLSKI SUOMI STARTING CURRENT FINAL CURRENT HF CURRENT 20 A 200 A HF TIME 0.5 s...
  • Page 16 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH Consequences of a higher value: • Arc striking is facilitated, even on very dirty workpieces. • Risk of piercing excessively thin gauge workpieces. - HF TIME ○ This parameter defines the maximum high frequency (HF) arc strike duration. - PULSED TYPE ○ SLOW = This setting enables slow pulsed mode. The peak time and base time are set. ○ FAST= This setting enables fast pulsed mode. The frequency and duty-cycle are set.
  • Page 17 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH SET UP The reading is carried out as follows: 7 hours and (0.2x60) POWER ON 7.2 h 12 minutes T. ARC. ON 5.3 h P. ARC ON 0.7 h RESET ○ The reset procedure involves complete restoration of the default values, parameters and memory settings set in the factory.

  • Page 18: Alarm Management

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH ALARM MANAGEMENT S T O P This symbol is shown if an incorrect operating condition occurs. An alarm message appears on the following display: D1. Tab. 2 - Alarm messages MESSAGE MEANING EVENT CHECKS • Make sure that the power re- Overheating alarm quired by the welding process is Indicates tripping of the welding lower than the maximum rated power source thermal protection.
  • Page 19 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH MESSAGE MEANING EVENT CHECKS Torch button alarm Indicates that when the power • Make sure the torch trigger is source was powered up a short All functions disabled. not pressed, jammed, or short...

  • Page 20: Mma Welding

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH MMA WELDING 8.1 MMA WELDING - FIRST LEVEL MENU Menu Menu SETTING E1/S5 SELECTION Q-SPOT ACTIVATION Menu Menu ○ Press the S4 button to activate the MMA mode. E1/S5 Q-SPOT Menu Menu ○ Press the S5 button to scroll the list of settings to edit.
  • Page 21 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH Tab. 3 - Parameters of the 1st level menu: MMA SETTING DEFAULT NOTES WELDING CURRENT MAX: Maximum value of welding 10 A 80 A MAX A MAXIMUM CURRENT WITH REMOTE CONTROLLER current...

  • Page 22: Mma Welding -Second Level Menu

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 8.2 MMA WELDING -SECOND LEVEL MENU Menu Menu SECOND LEVEL (1/4) ----------------------------------------------------- E1/S5 ELECTRODE TYPE SETTING ARC VOLTAGE Q-SPOT OUTPUT Menu Menu ○ Hold down the S5 button button for 3 seconds to access the 2nd level menu. - The setting to edit and its value are shown in the display D1. Menu Menu ○ Select with l’encoder E1 the setting to be edited.
  • Page 23 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH Tab. 4 - Parameters of the 2nd level menu: MMA mode SETTING DEFAULT NOTES bAS= basic rUt= rutile Crn= chromium/nick- ELECTRODE TYPE Only MMA ALU= aluminium MMA POLARITY The value is permanently OUTPUT VOLTAGE REDUCTION set to “ON” in VRD series...

  • Page 24: Mma Welding - Special Functions

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 8.3 MMA WELDING - SPECIAL FUNCTIONS Menu Menu SETTING E1/S5 Q-SPOT ACTIVATION OUTPUT ○ Press the S1 button to activate the special function. - The setting to edit and its value are shown in the display D1. Menu Menu ○ Using the encoder E1 , edit the value of the selected setting. The value is saved automati- cally. ○ Exit with confirmation - Press the S3/S4 button Tab.

  • Page 25: Tig Welding

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH TIG WELDING 9.1 TIG WELDING - FIRST LEVEL MENU Menu Menu SELECTION E1/S5 SETTING Q-SPOT ACTIVATION Menu Menu ○ Press the S4 button to activate the TIG mode. E1/S5 CONTINUOUS DC TIG PULSED DC TIG L13 + L12...
  • Page 26 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH SLOPE UP 0.0 s 0.0 s 25.0 s Recommended value 0-1s WELDING CURRENT MAXIMUM CURRENT WITH REMOTE 80 A MAX A MAX: Maximum value of welding current CONTROLLER SECOND CURRENT B-LEVEL 10 % 50 % 200 % DOWN SLOPE 0.0 s...
  • Page 27 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH For a better understanding of the parameter functions described in the table, refer to the following diagram. (I1) WELDING CURRENT (I2) BASE CURRENT (I3) FINAL CURRENT (I4) STARTING CURRENT (t1) UP SLOPE TIME...
  • Page 28 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH - SECOND CURRENT B-LEVEL ○ With a rapid press and release (less than 0.5 seconds) of the torch trigger during welding, the out- put current value switches to the value set by means of the “B-level second current” parameter. ○ This function makes it possible to avoid interrupting the welding process when the geometry of the workpiece changes; alternatively, the welding current can be reduced to decrease heating of the part if it becomes too hot during execution of the welding process. ○ In DC TIG welding, the parameter is useful when welding different gauge workpieces during the same pass; when moving between different gauges the output current can be changed simply by pressing the torch trigger. - BASE CURRENT ○ Pulsed wave minimum current. - Consequences of a higher value: • - Faster creation of weld pool. • - Increase of heat-affected zone.
  • Page 29 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH - FINAL CURRENT ○ During electrode welding the parameter makes it possible to obtain a uniform deposit of filler ma- terial from the start to the end of the welding process, closing the deposition crater with a current such as to deposit a final droplet of filler material. ○ The value of this parameter can be set as a percentage of the welding current or as an absolute value expressed in Amperes. ○ The parameter is displayed but it is not used during the welding process when the following set- ting is present: MULTI TACK = ON ○ By keeping the torch trigger pressed during the 3rd time, the crater filler current is maintained thereby ensuring optimal crater filling, until the post gas time is started by releasing the torch trig- ger (4th time). - POST GAS TIME ○ Time of post gas delivery when the welding arc is extinguished. - Consequences of a higher value: • More effective pickling (improved appearance of workpiece at the end of the welding pass).

  • Page 30: Tig Welding - Second Level Menu

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 9.2 TIG WELDING - SECOND LEVEL MENU Menu Menu ACTIVATION SECOND LEVEL (1/2) ----------------------------------------------------- E1/S5 HF STRIKE SELECTION REMOTE CONTROL SETTING Q-SPOT OUTPUT Menu Menu ○ Hold down the S5 button button for 3 seconds to access the 2nd level menu. - The setting to edit and its value are shown in the display D1. Menu Menu ○...
  • Page 31 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH Tab. 8 - Parameters of the 2nd level menu: DC TIG mode SETTING DEFAULT MAX NOTES SPOT TIME 0.01s 0.01s 10.0s Solo con 2 Tempi SPOT Only with 2 STROKE SPOT PAUSE TIME 0.01s OFF 10.0s...
  • Page 32 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH HF ARC IGNITION PROCEDURE Position the tungsten electrode on the ignition point, so that there is a distance of about 2-3mm between the electrode and the workpiece Press the torch button according to the mode selected. The voltaic arc ignites without touching the weld workpiece. • LIFT-ARC: This type of arc blow is derived from a short low-amperage circuit (to avoid elec- trode damage) that the operator created between the electrode tip and the workpiece and the consequent rise of the electrode tip that maintains the current flow by creating the so-called electric arc. It is advisable to use LIFT-ARC priming in applications such as maintenance of machinery in operation, welding close to printed circuits or soldering near computers. PROCESS FOR ARC IGNITION IN LIFT-ARC MODE:...

  • Page 33: Tig Dc Welding - Special Functions Menu

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 9.3 TIG DC WELDING - SPECIAL FUNCTIONS MENU Menu Menu SETTING E1/S5 Q-SPOT OUTPUT ACTIVATION ○ Press the S1 button to activate the special function. - The setting to edit and its value are shown in the display D1. ○ Using the encoder E1 Menu Menu , edit the value of the selected setting. The value is saved automati- cally.

  • Page 34: Tig Ac Welding - Special Functions Menu

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 9.4 TIG AC WELDING - SPECIAL FUNCTIONS MENU Menu Menu SETTING E1/S5 Q-SPOT ACTIVATION OUTPUT ○ Press the S1 button to activate the special function. - The setting to edit and its value are shown in the display D1. ○ Press the S1 button to scroll the list of settings to edit.
  • Page 35 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH - AC INVERSION FREQUENCY ○ The frequency in TIG AC is the number of inversions by DC + to DC- as a unit of time (T1) and adjusted in Hertz (Hz). The reduction in the frequency value of the electric arc inversion tends to widen its size, therefore it is advisable to use low frequencies for the welding of relatively large thicknesses or for filling passes in multipass bevels. Conversely, in increasing the inversion fre- quency value, the arc size tends to decrease and therefore increases the concentration of the pool and the precision of the welding. It is therefore advisable to use high values of frequency for the welding of very thin thickness or for facings on edges of moulds - Consequences of a higher value: • Arc concentration. • Reduction of heat-affected zone. • Slower melt speed. INVERSION FREQUENCY LOW FREQUENCY T1 (s) T1(s) HIGH FREQUENCY...
  • Page 36 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH - AC BALANCE ○ This parameter establishes the positive wave vs. negative wave time ratio. The following figure shows graphs with waves with different AC balance values: “0” BALANCE represents the optimum ratio between “Cleanliness and Penetration” “+” BALANCE represents the curve of the current curve with an AC Balance with a positive value (cleaner); in this case the percentage of the positive wave is greater than the negative one. “-” BALANCE represents the curve of the current with a negative value AC balance (more penetration) in which it can be seen that there is a low percentage of positive wave when compared with the negative. - Consequences of a higher value: • Greater weld penetration. • Less cleanliness.

  • Page 37: Torch Trigger Procedure

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 10 TORCH TRIGGER PROCEDURE Menu Menu E1/S5 Q-SPOT SELECTION Menu Menu ○ Press the S3 button to select the desired PULSED TORCH mode. E1/S5 2 STROKE 4 STROKE 4 STROKE BI-LEVEL 2 STROKE SPOT (Q-SPOT) Q-SPOT Depending on the welding mode selected, specific torch button procedures are available. The...
  • Page 38 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH Tab. 16 - Pulsed Torch button mode table. → PROCEDURE ↓ Q-SPOT Q-SPOT MODE 2T HF 4T HF 4T B-L 4T B-L HF 2T Q-SPOT 2T Q-SPOT HF √ √ √ √...
  • Page 39 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH - 2 STROKE + HF ○ Bring the torch up to the work until the electrode tip is approximately 2 or 3 mm away. ○ Press (1T) and keep the torch trigger pressed. ○ The arc strikes without contact with the workpiece and the voltage discharges (HF) cease auto- matically. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ Release (2T) the trigger to start the weld completion procedure. ○ The current reaches the end current value in the time set in the down slope time parameter. ○ The arc is extinguished. ○ Gas delivery continues for the time set in the post gas parameter. 1St TIME 2nd TIME...
  • Page 40 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH - 4 STROKE LIFT: ○ Touch the workpiece with the torch electrode. ○ Press (1T) and keep the torch trigger pressed. ○ Slowly lift the torch to strike the arc. ○ The arc strikes, the welding current assumes the pilot current value. (if activated from the SET UP menu.) ○ Release (2T) the torch trigger. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ Press (3T) the trigger and keep it pressed to start the weld completion procedure. ○ The current reaches the end current value in the time set in the down slope time parameter.
  • Page 41 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH - 4 STROKE + HF ○ Bring the torch up to the work until the electrode tip is approximately 2 or 3 mm away. ○ Press (1T) and keep the torch trigger pressed. ○ The arc strikes without contact with the part and the voltage discharges (HF) cease automatically, the welding current will assume the pilot current value. (if activated from the SET UP menu.) ○ Release (2T) the torch trigger. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ Press (3T) the trigger and keep it pressed to start the weld completion procedure. ○ The current reaches the end current value in the time set in the down slope time parameter. ○ The arc continues and the current output will be the value set in the end current parameter.
  • Page 42 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 4 STROKE B-LEVEL LIFT: ○ Touch the workpiece with the torch electrode. ○ Press (1T) and keep the torch trigger pressed. ○ Slowly lift the torch to strike the arc. ○ The arc strikes, the welding current assumes the pilot current value. (if activated from the SET UP menu.) ○ Release (2T) the torch trigger. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ Press and immediately release the torch trigger to switch to the second welding current. ○ The trigger must not be pressed for more than 0.3 seconds; otherwise, the weld completion stage will start.
  • Page 43 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH - 4 STROKE B-LEVEL: ○ Bring the torch up to the work until the electrode tip is approximately 2 or 3 mm away. ○ Press (1T) and keep the torch trigger pressed. ○ The arc strikes without contact with the part and the voltage discharges (HF) cease automatical- ly, the welding current will assume the pilot current value. (if activated from the SET UP menu.) ○ Release (2T) the torch trigger. ○ The arc strikes without contact with the workpiece and the voltage discharges (HF) cease automatically.

  • Page 44: Stroke Spot - Q-Spot Function

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 10.1 2 STROKE SPOT - Q-SPOT FUNCTION Menu Menu ACTIVATION E1/S5 SELECTION/ SETTING Q-SPOT ACTIVATION OUTPUT ○ Press the S3 button to select the TORCH 2 STROKE SPOT BUTTON mode. Menu Menu ○...
  • Page 45 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH - Q-SPOT: ○ This function, only present in 2 STROKE SPOT, facilitates spot-welding: • It allows the exact positioning of the electrode at the point to be joined. The electrode is con- veniently placed at the desired location. • Only after lifting of the electrode, the machine emits pulse welding for the stipulated time. • It considerably reduces the risk of contamination of the joint with the electrode. • While pressing the torch button, the process may be repeated as many times as required. ○ This function is ideally suited to the welding of thinner gauges, head to head position and the pipes. Place the torch with the electrode on the precise point to be fixed.
  • Page 46 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH - 2 STROKE SPOT HF: ○ Bring the torch up to the work until the electrode tip is approximately 2 or 3 mm away. ○ Press (1T) the torch trigger. ○ The arc strikes without contact with the workpiece and the voltage discharges (HF) cease auto- matically. ○ Release (2T) the torch trigger. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ The welding procedure continues, at the pre-set current, for the time set with the spot time pa- rameter. ○ The current reaches the end current value in the time set in the down slope time parameter. ○ The arc is extinguished. ○ Gas delivery continues for the time set in the post gas parameter.
  • Page 47 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ The welding procedure continues, at the pre-set current, for the time set with the spot time pa- rameter. ○ The current reaches the end current value in the time set in the down slope time parameter. ○ The arc is extinguished. ○ Gas delivery continues for the time set in the post gas parameter. ○ Touch the workpiece with the torch electrode. ○ Slowly lift the torch to strike the arc. The welding parameters are available in accordance with the selected welding mode and procedure. Certain parameters are available only after other parameters or functions of the unit have been enabled or set. The table shows the settings required to enable each parameter. LEGEND √: ____ Always available. 1: ____ Available with the following setting: MULTI TACK = OFF 2: ____ Available when remote control is enabled and a remote control pedal is connected to the unit. 3: ____ Available with the following setting:...
  • Page 48 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH Tab. 19 - Table showing enabled Welding Parameters MODE → MENU PROCEDURE Q-SPOT Q-SPOT Q-SPOT ↓ → PARAMETER ↓ WELDING 1° √ √ √ √ √ √ √ √ √ √ √...
  • Page 49 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH Tab. 19 - Table showing enabled TIG AC Welding Parameters MODE → MENU PROCEDURE Q-SPOT Q-SPOT ↓ → PARAMETER ↓ 1° WELDING CURRENT 1° HOT-START 1° ARC-FORCE 1° PRE-GAS TIME 1° STARTING CURRENT √...

  • Page 50: Jobs Management

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 11 JOBS MANAGEMENT Personalised welding settings, or JOBs, can be saved in memory locations and subsequently uploaded. Up to 50 JOBS can be saved (j01-j50). JOBs can be managed only when the unit is not in welding mode. The SETUP menu settings cannot be saved by means of the JOBs. When a JOB is loaded and an UP/DOWN torch is installed, press the torch triggers to select the saved JOBS. If there are no JOBS loaded, the UP/DOWN buttons on the torch serve to adjust the welding current. 11.1 SAVING A JOB Menu Menu SELECTION JOB MENU ----------------------------------------------------- E1/S5 CONFIRMATION --->> SAVE MENU to confirm Q-SPOT ACTIVATION OUTPUT ○ Press the S2 button to enter the JOB MENU.

  • Page 51: Deleting A Job

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 11.2 DELETING A JOB Menu Menu SELECTION JOB MENU ----------------------------------------------------- E1/S5 --->> DELETE CONFIRMATION MENU to confirm Q-SPOT ACTIVATION OUTPUT ○ Press the S2 button to enter the JOB MENU. Menu Menu ○...

  • Page 52: Loading A Job

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 11.3 LOADING A JOB Menu Menu SELECTION JOB MENU ----------------------------------------------------- E1/S5 --->> LOAD CONFIRMATION MENU to confirm Q-SPOT ACTIVATION OUTPUT ○ Press the S2 button to enter the JOB MENU. Menu Menu ○...

  • Page 53: Exporting/Importing Jobs (Through A Usb Memory Stick)

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 11.4 EXPORTING/IMPORTING JOBs (through a USB memory stick) By using a USB memory stick, the JOBs saved on the panel can be exported and imported into another panel. When a USB memory stick is connected, the JOB MENU will display the items related to the importing and exporting procedure. WARNING! The JOBs are exported to the USB memory stick with the name of the location where they are saved on the panel. If the file names of the JOBs saved onto the USB memory stick are changed by using a PC, after they are imported into the destination panel, they will still be saved in their original location. This means that, if the destination panel already contains JOBs saved in the same location as those exported to the memory stick, they will be overwritten. We recommend not to change the name of the files exported to the USB memory stick. The file extension (.bin) must never be changed.
  • Page 54 Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH Menu Menu ○ Use the encoder E1 , to select USB EXPORT. Menu Menu ○ Press the S5 button to confirm. - Wait for the JOB export procedure to terminate. ○ Uscita - Press the S3/S4 button Tab. 20 - JOB exporting operation messages...

  • Page 55: Selecting Jobs Using The Torch Buttons

    Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH Menu Menu ○ Use the encoder E1 to select USB IMPORT. Menu Menu ○ Press the S5 button to confirm. - Wait for the JOB import procedure to terminate. - If no valid JOB file is present, the “IMPORT FAILED” message is displayed ○ Exit - Press the S3/S4 button Tab.

  • Page 56: Technical Data

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 12 TECHNICAL DATA Waste electrical and electronic equipment (WEEE) Electromagnetic compatibility (EMC) Directives applied Low voltage (LVD) Restriction of the use of certain hazardous substances (RoHS) Construction standards EN 60974-1; EN 60974-3; EN 60974-10 Class A Equipment compliant with European directives in force Equipment suitable in an environment with increased hazard of electric shock Conformity markings Equipment compliant with WEEE directive Equipment compliant with RoHS directive Supply voltage 1 x 230 Va.c. ± 15 % / 50-60 Hz Mains protection 16 A Delayed This equipment complies with IEC 61000-3-12 provided that the maximum permis- sible system impedance is less than or equal to 30 mΩ at the interface point between...
  • Page 57 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH 30% (40° C) 15.0 A 40% (40° C) 16.7 A Maximum Effective Supply Cur- rent 60% (40° C) 17.2 A 15.5 A 100 % (40° C) 20.0 A 15.6 A No-load voltage (U0) 88 V Reduced no-load voltage (Ur) 10 V 13.5 kV...

  • Page 58: Electrical Diagram

    Cod. 006.0001.2320 Discovery 200AC/DC Evo 13/02/2023 V.1.0 ENGLISH 13 ELECTRICAL DIAGRAM 13.1 TORCH CONNECTOR (front panel) INTERNAL VIEW cod. 021.0004.3360 Torch UP/DOWN torch UP & DOWN T ORCH TORCH P. T. P. T. P. T. P. T. N.C. N.C. DOWN N.C.
  • Page 59 Discovery 200AC/DC Evo Cod. 006.0001.2320 13/02/2023 V.1.0 ENGLISH...
