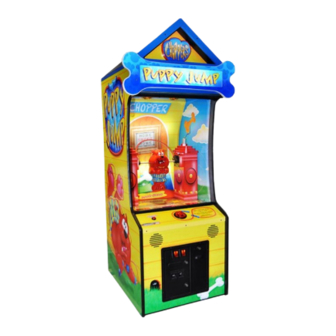

Bob's Space Racers Puppy Jump Operation Manual
  1. Manuals
  2. Brands
  3. Bob's Space Racers Manuals
  4. Arcade Game Machines
  5. Puppy Jump
  6. Operation manual

Bob's Space Racers Puppy Jump Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Puppy Jump
™
Rev. B
Operations Manual
WARNING
Be sure to read this Operation Manual before using your machine to ensure safe operation.
©2013 Bob's Space Racers Incorporated
th
427 15
Street, Daytona Beach, Florida 32117
Tel: (386) 677-0761 Fax: (386) 677-0794

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Puppy Jump and is the answer not in the manual?

Questions and answers

Related Manuals for Bob's Space Racers Puppy Jump

Summary of Contents for Bob's Space Racers Puppy Jump

  • Page 1 Puppy Jump ™ Rev. B Operations Manual WARNING Be sure to read this Operation Manual before using your machine to ensure safe operation. ©2013 Bob’s Space Racers Incorporated 427 15 Street, Daytona Beach, Florida 32117 Tel: (386) 677-0761 Fax: (386) 677-0794...

  • Page 2: Table Of Contents

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL Table of Contents Contents SPECIFICATIONS .................................. 5 Rated power supply: ................................5 Power consumption: ................................5 Dimensions: ..................................5 Weight: ....................................5 INTRODUCTION ..................................6 Overview: ..................................... 6 To Maintain Safety: ................................6 WARNING: (or) CAUTION: ..............................
  • Page 3 BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL MODEL VIEW...

  • Page 4: Specifications

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL SPECIFICATIONS Rated power supply: 120VAC ±5%, 60 Hz. (Note: Please refer to the label on the game for the actual voltage). Power consumption: 5Amp 120V Dimensions: 31” W x 40” D x 88” H...

  • Page 5: Introduction

    ARCADE GAME MANUAL INTRODUCTION Overview: Thank you for purchasing the new PUPPY JUMP™ from Bob's Space Racers ® . Built on a long tradition of value, the new PUPPY JUMP retains all of the great game play you have come to expect of a game from BSR, and is specifically designed for today's Arcade environment.

  • Page 6: Important Safety Information

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL Important Safety Information: IMPORTANT SAFETY INFORMATION WARNING: Unplug the game from the AC wall receptacle when servicing this product. Failure to do so could result in serious injury to yourself or others.

  • Page 7: Installation

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL INSTALLATION ATTENTION ●For indoor use only! Play zone (Operation Zone): This machine requires space for playing the game. Be sure to leave enough space when installing the machine. WARNING ● Be sure to check the Electrical Specifications. Ensure that this product is compatible with your location’s power supply, voltage and frequency requirement.

  • Page 8: Connecting The Power Cord

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL CONNECTING THE POWER CORD Pow er socket El ect r i cal w i r e box Pow er pl ug WARNING ● Do not put heavy items on power cord.

  • Page 9: Instruction For Play

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL INSTRUCTION FOR PLAY 1. Insert a Coin/Token. 2. Press the PUSH TO START button and wait for the game to start. 3. Press the JUMP button to make the toy jump over the hoop.

  • Page 10: Programming Options

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL FREE CHANCE (Option P3): Before the first 5 jumps, a player will receive a certain amount of free chances that are set in the option settings. Once a player has used up, or went over 5 jumps, and hits the hoop, the game will end.

  • Page 11: Explanation Of Programming Values

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL Explanation Of Programming Values VOLUME Sound level of speakers COINS PER CREDIT How many coins needed to play game POINTS PER TICKET Amount of points needed per ticket See FREE CHANCE...

  • Page 12: Maintenance

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL Maintenance: Due to the design of the machine, very little periodic maintenance is required. Start the game and verify the correct operation before putting the game into everyday operations. Clean the surface of the game as needed.

  • Page 13: Troubleshooting

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL WARNING For your safety, and to reduce risk of damage to your game read the Important Safety Information on page 7 before attempting any troubleshooting procedure. TROUBLESHOOTING PHILOSOPHY When troubleshooting any product, certain general guidelines should be followed.
  • Page 14 BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL Symptom Possible Problem Solution Sound Problems Low Volume Check Volume Control and adjust as necessary -No sound Faulty speaker harnessing Check connections and/or repair harnessing -Low Sound Faulty speaker Check and/or replace speaker...

  • Page 15: Servicing The Jump Assembly

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL SERVICING THE JUMP ASSEMBLY Removing the front Plexiglas 1. Remove the Upper and Lower Support Panels by removing the three (3) screws on each panel as shown in Fig.1 & 2.

  • Page 16: Removing The Jump Assembly

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL 3. Carefully twist back the Plexiglas back to remove from cabinet as shown in Fig. 4. Fig. 4 Removing the Jump Assembly Note: Do Not remove the Jump Assembly if you are just going to make adjustments to the Toy or Solenoid Height.
  • Page 17 BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL 3. Remove the ¼-20 Bolt that is located on the inside rear panel of the Jump Assembly (see Fig. 7). Fig. 7 Sensors / Solenoid Harness Connector Fig. 8 4. Disconnect the two (2) connectors that are attached to the Jump Assembly as shown in Fig’s 8 and 9.

  • Page 18: Adjusting The Toy And Solenoid Heights

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL 5. Securely grab the Jump Assembly by the Horizontal Support Bar with both hands, and pull the Jump Assembly straight up and out slowly, (careful not to scratch decals) as shown in Fig. 10.
  • Page 19 BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL 1. Loosen the four (4) 8-32 screws located on the back side of the Toy as shown in Fig. 11. Fig. 11 2. Insert the Height Block labeled “Toy Height Adjustment” under the Toy as shown in Figures 12 &...

  • Page 20: Adjusting The Solenoid Lift Height

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL 3. While the Toy is resting on the Height Block, Press down the Lift Bracket until it stops and is resting on the Horizontal Support Bar as shown in Fig. 14.
  • Page 21 BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL 2. Lift the Toy and place onto the Height Block labeled “Solenoid Height Adjustment” as shown in Fig. 16. Fig. 16 3. Push the Solenoid Piston up with your finger and move the locking collar to bottom side of the Lift Bracket, and then tighten set screw on collar as shown in Fig.
  • Page 22 BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL 4. Lock the upper locking collar to the top side of Lift Bracket and tighten set screw on collar as shown in Fig. 18. The Solenoid is now set to the proper height.

  • Page 23: Removing The Drive Belt

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL Removing the Drive Belt Drive Belt 1. Turn Motor Pulley by hand until Set Screw Set Screw is visible. 2. Loosen Motor Pulley Set Screw. 3. Pull off Motor Pulley from Motor Shaft.

  • Page 24: Check Hardware For Tightness (Monthly Maintenance Check)

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL Check hardware for tightness ( Monthly Maintenance Check Fig. 21 Fig. 22 Fig. 23 Fig. 24...

  • Page 25: Electronics Layout

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL ELECTRONICS LAYOUT Power Supply’s Main Controller Board Power Supply Power Supply (Electronics) (Solenoids) 12 Volt DC 27 Volts DC Main Controller Board Fig. 25 Fig. 26 Ticket Mech / Program Panel Coin Mech / Counters Coin Mech’s...

  • Page 26: Parts List

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL PARTS LIST Part Description Number E0800405 BOARD-MAIN PC (ROHS) E0022860 POWER SUPPLY 27VDC 11.7AMP SP-320-27 E0800180 POWER SUPPLY 65WATT MEANWELL DUAL ON-OFF E0020300 TICKET DISPENSER DELTRONIC 1005 BSR STYL M0800140 COIN MECH .25/QUARTER PLASTIC 42-3079-00...

  • Page 27: Schematic

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL SCHEMATIC...

  • Page 28: Warranty

    BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL WARRANTY BOB’S SPACE RACERS INC. 90 DAY COIN-OPERATED GAME WARRANTY ® 1. INCLUDED IN THIS WARANTY Bob’s Space Racers , Inc. warrants to the original purchaser only that the equipment that is the subject of this sale conforms to its specifications, and is free from defects under normal service for a 90 day period from the original date of deliver.
  • Page 29 BOB’S SPACE RACERS ® PUPPY JUMP ARCADE GAME MANUAL CALLING FOR SERVICE 1. When calling for service, please check the service manual first. Many times the answer to your problem has been addressed in this documentation. 2. Please make sure you have the serial number of the game ready when you call.
