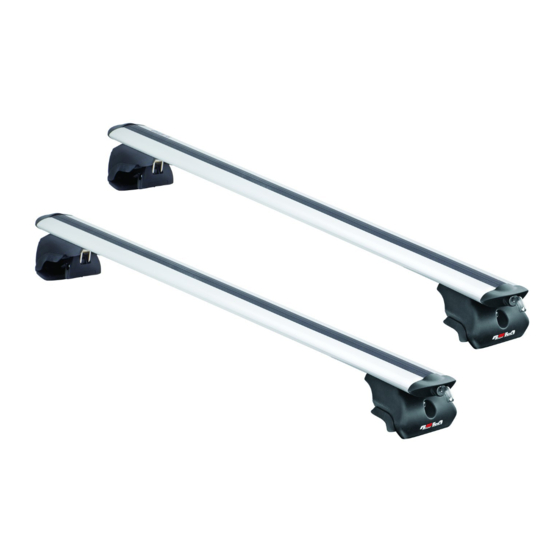

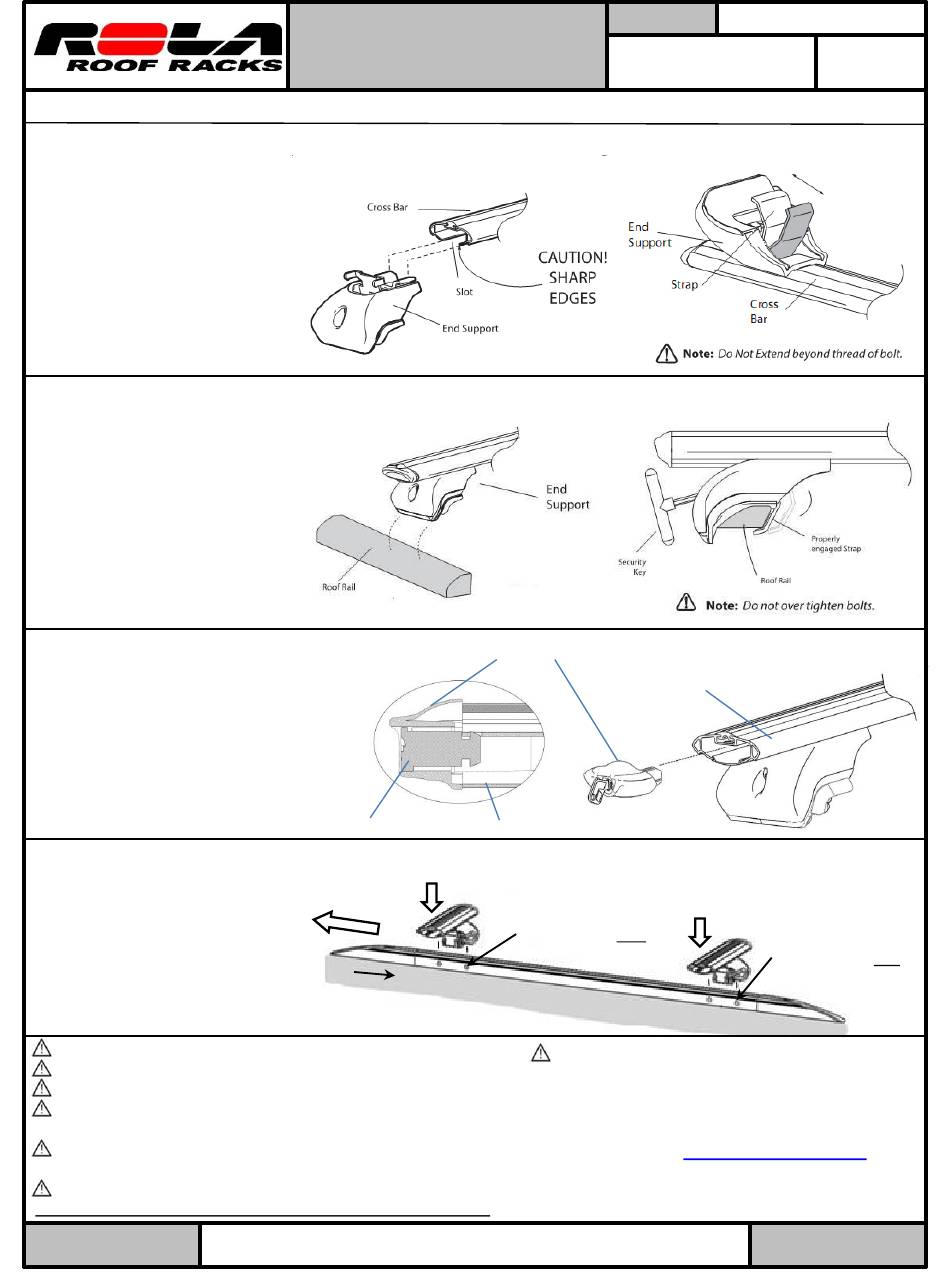

Rola 59790 Fitting Instructions

NOTICE: Cross Bars can cause wind noise. Remove cross bars when not in use.
Your cross bars come pre-assembled.
Ensure that side rails are clean
and free from dust and grease.
Straps are to be extended to
allow easy mounting of the
cross bars. (Fig 1)
Place the cross bars onto the
vehicle's side rails (note side
rails may have a position
marking on them).
Gradually tighten bolts
alternating sides with the
security key ensuring straps
are properly engaged and even
tension is achieved. (Fig 2)
Reverse procedure to remove.
Crossbar locking end caps may
be removed to access the
accessory T-slot channel. (Fig 3)
Service buffer strips may be
purchased should the buffers
need to be cut around
accessories.
Place Cross Bars on the
vehicle at the recommended
positions between holes as
shown along the Rail Bars.
( Fig. 4)
REGULARLY CHECK THE TIGHTNESS OF LOCKING STRAPS.
Loads should be evenly distributed and secured
Check the function of all doors and sunroof before driving.
Any weight carried on the vehicle will adversely affect its handling particularly in cornering or in a cross wind and the vehicle
should therefore be driven with increased caution.
For lost key replacement or other service items call customer service: 1-800-632-3290 or visit:
Please have lock core number or part numbers available.
Only use NON-STRETCH tie down straps.
A number of accessories for carrying special loads are available.
59790N Rev A 8-23-13
Soul with Side Rails
2014-On
Fitting Instructions
Lock Barrel
Front of
Vehicle
Vehicle roof
Actual side rails may be different
.
Printed in China
PART No:
CARRYING CAPACITY:
End Cap
Cross Bar
Cross Bars may be moved to accept
accessories. Undercover may need trimming.
Replacement Undercover is available.
Holes on the inside of
rails indicate front
cross bar location
Ensure bars are parallel and straps are tightened against
the side rails. Perform a check by tugging on the cross bars.
59790
50Kgs/
110 Lbs
Fig 1
Fig 2
Fig 3
Cross Bar
Holes on the inside of
rails indicate rear
cross bar location
www.rolaproducts.com.
Pg 1 of 1
Fig 4
