Rola 59793 Manual

• Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in
property damage, serious bodily injury, and/or death. Cequent Performance Products is not responsible for any property damage, personal
injury, or death occurred while using any ROLA products. Retain these instructions for future reference.
• Any modification or unintended use of this product voids any warranty and could create a hazardous condition.
• Loads must be secure according to local height and identification regulations and or laws.
• Secured loads and connections must be re-checked periodically for tightness.
• This product is designed for use on utility trailers with steel angle construction.
• When used on pick up truck beds, it is designed to be used with Cequent Performance Products Truck Rack #59742 and Top Rail Accessory
#59798 and secured to Top Rail using Top Clamps (Item 11). Accessories are sold separately.
• The mounting bracket is designed to sit on a flat surface. Some truck bed rails may permanently distort and conform to the flat surface of
mounting bracket.
6
8
7
Figure 1.
11
Top Rail
Attachment
Figure 5.
Wing Nut
Figure 4.
Cequent Performance Products, Inc.
Plymouth, MI 48170
Technical Service: (888) 521-0510
(9" to 15-3/4")
Spacing
9
12
Figure 3.
Figure 2.
Product Name:

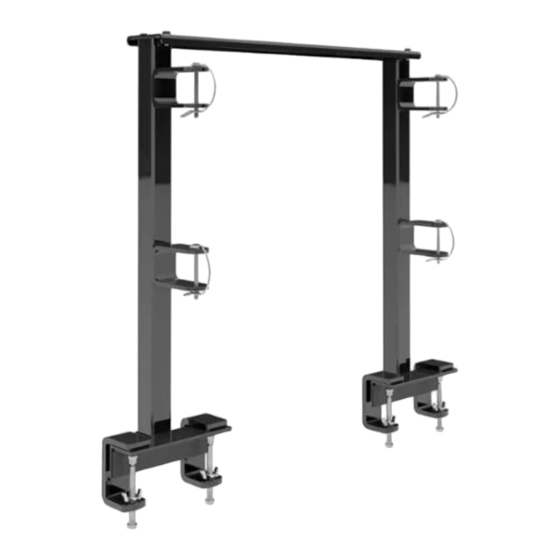

Trimmer Rack
Product Code:

WARNING!

IMPORTANT NOTES:

Required for Assembly: 7/16 & 9/16" Wrench

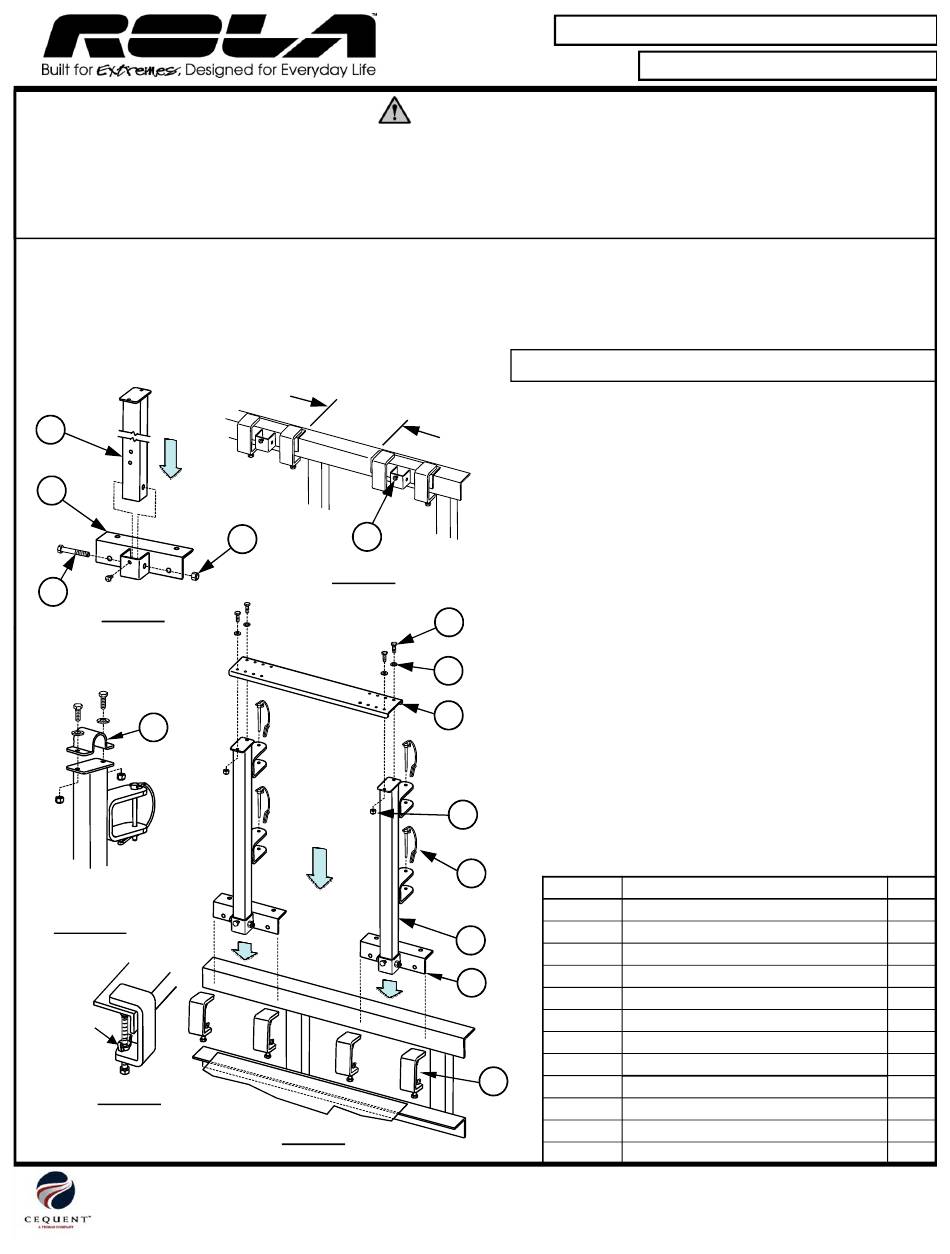

Step 1: Attach upright tubes (6) to mounting brackets (8) with the
3/8" hex bolt s (7) and 3/8 locknuts (12).
Firmly tighten 3/8 hex bolt. See Figure 1.
Step 2: Find a suitable location and install upright tube & mounting
bracket assemblies (step 1) to the trailer frame as shown using rail
clamps (10). See Figure 2.
Step 3: Set spacing between mounting brackets from 10" to 16" so
uprights align with top plate. See Figure 3.
Step 4: Securely tighten clamps and tighten wing nuts against
1
1
bottom of clamps. See Figure 4.
Step 5: Place the top plate (3) on the 2 uprights and attach with
2
four ¼"bolts (1), flat washers (2) and lock nuts (4).
Step 6: When used on Pickup trucks, secure upright tube to top rail
3
accessory. See important notes and Figure 5.
Step 7: Install and tighten the ¼-20 x .375 long hex bolts (9) into the
mounting brackets to minimize movement.
Optional: For permanent mounting use the pre-drilled holes in the
4
mounting bracket as a template, drill the truck or trailer. Secure
with four 3/8" Grade 5 lock washers, hex nuts, and hex bolts
(Purchased separately).
5
ITEM NO.
1
6
2
3
8
4
5
6
7
10
8
9
10
11
12
Page 1 of 4
59793
DESCRIPTION
HEX BOLT 1/4-20 X .750 GR5
FLAT WASHER 1/4
TOP PLATE
LOCKNUT 1/4-20 GR5
Ø1/4" X 2.75 LONG BAIL PIN
UPRIGHT TUBE ASSY
HEX BOLT 3/8-16 X 2.50 GR5
MOUNTING BRACKET
HEX BOLT 1/4-20 X .375 GR5
RAIL CLAMP
TOP RAIL ACCESSORY CLAMP
LOCK NUT 3/8-16 GR5
59793N Rev C
Printed in China
QTY.
4
4
1
4
4
2
2
2
2
4
2
2
5-1-14
