Installation-Indicator
Unit
0
0
0
0

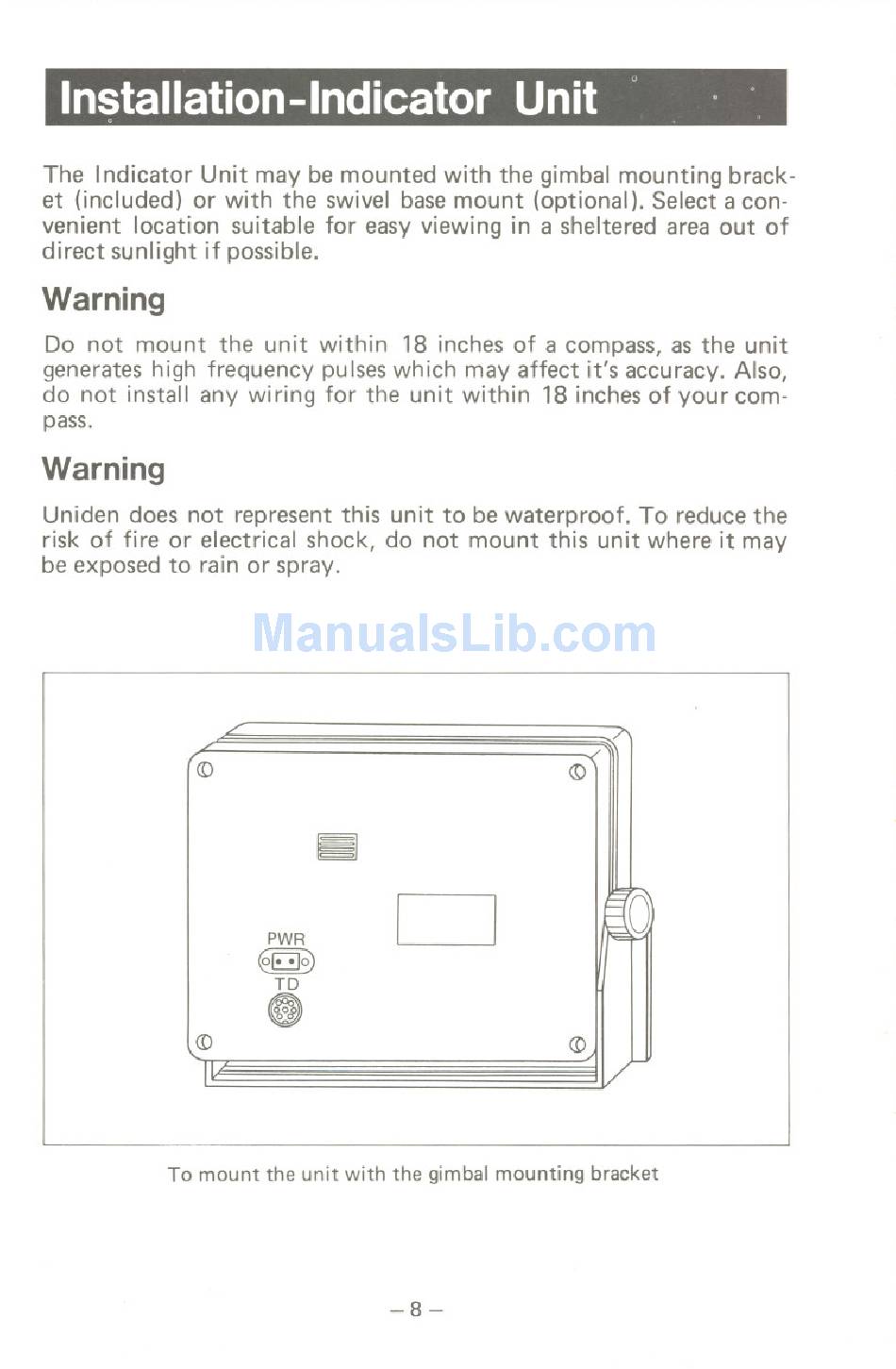

The Indicator Unit may be mounted with the gimbal mounting brack-
et (included) or with the swivelbase mount (optional). Select a
con-
venient location suitable for easy viewing in a sheltered area out of
direct sunlight if possible.
Warning
Do not mount the unit within 18 inches of a compass, as the unit
generates high frequency pulses which may affect it's accuracy. Also,
do not install any wiring for the unit within 18 inches of your com-
pass.
Warning
Uniden does not represent this unit to be waterproof. To reduce the
risk of fire or electrical shock, do not mount this unit where it may
be exposed to rain or spray.
To mount the unit with the gimbal mounting bracket
-8-
~!
I
i
I
j I I
,
i t
I
I
11
PWR
D
01o)
TO
e
<D
