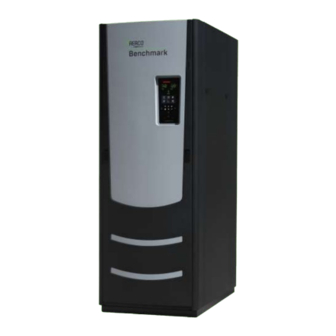

Watts AERCO Benchmark BMK750 Installation And Start-Up Manual

Watts AERCO Benchmark BMK750 Installation And Start-Up Manual

Natural gas, propane gas and dual fuel modulating & condensing boilers with edge i controller
Hide thumbs Also See for AERCO Benchmark BMK750:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Startup Manual
Benchmark
with Edge [i] Controller
Natural Gas, Propane Gas and Dual Fuel
Modulating & Condensing Boilers
Models 750 through 6000
Other documents for this product include:
OMM-0145, GF-218 Operation-Service Manual
OMM-0146, GF-219 Reference Manual
TAG-0019, GF-2070 Boiler Application Guide
TAG-0022, GF-2050 Vent-Combustion Air Guide
TAG-0047, GF-2030 Benchmark Gas Guide
TAG-0048, GF-2060 Benchmark Power Guide
Applies to serial numbers:
G-20-0100 and above – BMK750 – 5000N
N-20-0050 and above – BMK5000 & 6000
Disclaimer
The information contained in this manual is subject to change without notice
from AERCO International, Inc. AERCO makes no warranty of any kind with
respect to this material, including, but not limited to, implied warranties of
merchantability and fitness for a particular application. AERCO International is
not liable for errors appearing in this manual, not for incidental or
consequential damages occurring in connection with the furnishing,
performance, or use of these materials.
OMM-144_B • GF-217
• 5/25/2020
®
Boilers
Heating and Hot Water Solutions
AERCO International, Inc. • 100 Oritani Drive • Blauvelt, NY 10913
USA: T: (845) 580-8000 • Toll Free: (800) 526-0288 • AERCO.com
Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST
© 2020 AERCO

Advertisement

Table of Contents
loading

Related Manuals for Watts AERCO Benchmark BMK750

Summary of Contents for Watts AERCO Benchmark BMK750

  • Page 1 Installation and Startup Manual ® Benchmark Boilers with Edge [i] Controller Natural Gas, Propane Gas and Dual Fuel Modulating & Condensing Boilers Models 750 through 6000 Other documents for this product include: OMM-0145, GF-218 Operation-Service Manual OMM-0146, GF-219 Reference Manual TAG-0019, GF-2070 Boiler Application Guide TAG-0022, GF-2050 Vent-Combustion Air Guide TAG-0047, GF-2030 Benchmark Gas Guide...

  • Page 2: Table Of Contents

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual CONTENTS Table of Contents FOREWORD ...................... 5 SECTION 1: SAFETY PRECAUTIONS ..............9 1.1 WARNINGS & CAUTIONS ....................9 1.2 EMERGENCY SHUTDOWN ....................10 1.3 PROLONGED SHUTDOWN ....................10 1.4 IMPORTANT – FOR MASSACHUSETTS INSTALLATIONS ..........11 SECTION 2: INSTALLATION ................
  • Page 3 Benchmark 750-6000 with Edge [i]: Install-Startup Manual CONTENTS 2.11.13 Fault Relay (NC, COM, & NO) ....................41 2.11.14 Auxiliary Relay Contacts (NC, COM, & NO)................41 2.12 FLUE GAS VENT INSTALLATION ..................42 2.12.1 MASSACHUSETTS INSTALLATIONS ....................42 2.13 COMBUSTION AIR ......................43 2.13.1 DUCTED COMBUSTION AIR ......................
  • Page 4 Benchmark 750-6000 with Edge [i]: Install-Startup Manual CONTENTS (This page intentionally blank) OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 4 of 62...

  • Page 5: Foreword

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual FORWARD FOREWORD The AERCO Benchmark (BMK) 750 through 6000 natural gas and propane fueled boilers are modulating and condensing units. They represent a true industry advance that meets the needs of today's energy and environmental concerns. Designed for application in any closed loop hydronic system, the Benchmark's modulating capability relates energy input directly to fluctuating system loads.
  • Page 6 Benchmark 750-6000 with Edge [i]: Install-Startup Manual FORWARD Please consult the Benchmark Venting and Combustion Air Design Guide (TAG-0022, GF-2050) for a list of allowable and preferred vent materials. The Benchmark's advanced electronics are available in several selectable modes of operation offering the most efficient operating methods and energy management system integration.
  • Page 7 Benchmark 750-6000 with Edge [i]: Install-Startup Manual FORWARD AERCO Technical Terminology Meanings TERMINOLOGY MEANING Factory Mutual. Used to define boiler gas trains. GF-xxxx Gas Fired (an AERCO document numbering system) Ground Header Hexadecimal Number (0 – 9, A – F) Horse Power Heat Exchanger Hertz (Cycles Per Second)
  • Page 8 Benchmark 750-6000 with Edge [i]: Install-Startup Manual FORWARD AERCO Technical Terminology Meanings TERMINOLOGY MEANING Parts per Million Pounds per Square Inch (1 PSI = 6.89 kPa) Point-to-Point (usually over RS232 networks) P&T Pressure and Temperature ProtoNode Hardware interface between BAS and a boiler or water heater Poly Vinyl Chloride, a common synthetic plastic Pulse Width Modulation REF (Ref)

  • Page 9: Section 1: Safety Precautions

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 1 – SAFETY PRECAUTIONS SECTION 1: SAFETY PRECAUTIONS 1.1 WARNINGS & CAUTIONS Installers and operating personnel MUST, at all times, observe all safety regulations. The following warnings and cautions are general and must be given the same attention as specific precautions included in these instructions.

  • Page 10: Emergency Shutdown

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 1 – SAFETY PRECAUTIONS 1.2 EMERGENCY SHUTDOWN If overheating occurs or the gas supply fails to shut off, close the manual gas shutoff valve (Figure 1-1) located external to the unit. NOTE: The Installer must identify and indicate the location of the emergency shutdown manual gas valve to operating personnel.

  • Page 11: Important - For Massachusetts Installations

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 1 – SAFETY PRECAUTIONS 1.4 IMPORTANT – FOR MASSACHUSETTS INSTALLATIONS Requirements for Massachusetts Installations Boiler Installations within the Commonwealth of Massachusetts must conform to the following requirements: • Boiler must be installed by a plumber or a gas fitter who is licensed within the Commonwealth of Massachusetts.
  • Page 12 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 1 – SAFETY PRECAUTIONS Requirements for Massachusetts Installations 4. INSPECTION: The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

  • Page 13: Section 2: Installation

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION SECTION 2: INSTALLATION 2.1 INTRODUCTION This section provides the descriptions and procedures necessary to unpack, inspect and install AERCO Benchmark Boilers. 2.2 RECEIVING THE UNIT Each Benchmark Boiler System is shipped as a single crated unit. The shipping weight for these BMK models is approximately as follows: •...

  • Page 14: Site Preparation

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION When optional accessories are ordered, they may be packed within the unit’s shipping container, factory installed on the unit, or packed and shipped in a separate container. Any standard or optional accessories shipped loose should be identified and stored in a safe place until ready for installation or use.
  • Page 15 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION In multiple unit installations, it is important to plan the position of each unit in advance. Sufficient space for piping connections and future service/maintenance requirements must also be taken into consideration.
  • Page 16 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION NOTE: Ensure that condensate assembly is not located over the housekeeping pad. Figure 2-1b: BMK1500-2000 Clearances NOTE: Ensure that condensate assembly is not located over the housekeeping pad. Housekeeping Pad. Figure 2-1c: BMK2500-3000 Clearances OMM-144_B •...
  • Page 17 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION NOTE: Ensure that condensate assembly is not located over the housekeeping pad. Housekeeping Pad. Figure 2-1d: BMK4000-5000N Clearances Figure 2-1e: Benchmark Model 5000-6000 Clearances OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 17 of 62...

  • Page 18: Setting The Unit

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION WARNING! Keep the unit area clear and free from all combustible materials and flammable vapors or liquids FOR MASSACHUSETTS ONLY: For Massachusetts installations, the unit must be installed by a plumber or gas-fitter licensed within the Commonwealth of Massachusetts.
  • Page 19 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION Figure 2-2b: BMK1500-2000 Anchor Bolt Locations FRONT REAR Figure 2-2c: BMK2500-3000 Anchor Bolt Locations OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 19 of 62...

  • Page 20: Lifting Provisions

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION Figure 2-2d: BMK4000-5000N Anchor Bolt Locations Figure 2-2e. Benchmark 5000-6000 Anchor Bolt Locations 2.5 LIFTING PROVISIONS WARNING! When lifting or moving the boiler, DO NOT attempt to manipulate the boiler using the gas train or blower.
  • Page 21 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION WARNING! When using the lifting tab and bar, ensure there is no load placed on the gas train or blower. Attaching the Lifting Bar: BMK750-1000 Instructions 1. Remove the lifting bar from its shipping location at the rear of the unit (Figure 2-3a, View A). Retain the two (2) hex head cap screws, hex nuts and flat washers.

  • Page 22: Bmk1500 - 5000N Lifting Provisions

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.5.2 BMK1500 – 5000N Lifting Provisions Three lifting lugs are provided at the top of the primary heat exchanger as shown in Figure 2-3b. Remove the front top panel from the unit to provide access to the lifting lugs. Remove the four (4) lag screws securing the unit to the shipping skid.

  • Page 23: Supply And Return Piping

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.6 SUPPLY AND RETURN PIPING When connecting the hot water outlet and cold-water inlet to building piping, first make sure the mating surfaces are thoroughly clean. Gaskets of appropriate size for the pipe flange must be provided in the field.

  • Page 24: Bmk1500 - 5000N Supply And Return Piping

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.6.2 BMK1500 – 5000N Supply and Return Piping Benchmark 1500 – 3000 units have the following inlets and outlets: • 4” (10.2 cm) 150# flange water INLET (supply) and hot water OUTLET (return) piping. •...

  • Page 25: Bmk5000 - 6000 Supply And Return Piping

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.6.3 BMK5000 – 6000 Supply and Return Piping Benchmark 5000 and 6000 boilers utilizes 6” (15.24 cm) flanged fittings for the water system supply and return piping connections. The physical location of the supply and return piping connections are shown in Figure 2-4c.
  • Page 26 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION INSTALL TRIDICATOR GAUGE HERE (P/N 123675-TAB) PRESSURE RELIEF VALVE 3” HOT BOILER WATER OUTLET Figure 2-5a: BMK750-1000 P&T Relief Valve Location PRESSURE INSTALL RELIEF VALVE TRIDICATOR GAUGE HERE (P/N 123675-TAB) 4”...

  • Page 27: Condensate Drain And Piping

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.8 CONDENSATE DRAIN and PIPING The Benchmark Boiler is designed to condense water vapor from the flue products. Therefore, the installation must have provisions for suitable condensate drainage or collection. See below for information on the condensate drain and piping for the various models.
  • Page 28 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION TOP COVER THUMB TRAP INLET SCREWS (4 each) INTEGRAL ADAPTOR AND THUMBSCREW CONDENSATE TRAP COMBUSTION ANALYZER (P/N 24441) PROBE PORT 3/4” NPT NIPPLE UNION EXHAUST MANIFOLD HOSE CLAMP 1” DIAM. HOSE 4”...

  • Page 29: Gas Supply Piping

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.9 GAS SUPPLY PIPING AERCO’s Benchmark Gas Components and Supply Design Guide, TAG-0047 (GF-2030) must be consulted prior to designing or installing any gas supply piping. WARNING! Never use matches, candles, flames or other sources of ignition to check for gas leaks CAUTION! Many of the soaps used for gas pipe leak testing are corrosive to metals.
  • Page 30 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION NOTE: It is the responsibility of the customer to source and purchase the appropriate gas regulator as described above. However, AERCO offers for sale an appropriate regulator, which may be ordered at the time of unit purchase or separately.
  • Page 31 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION GAS PRESSURE REGULATOR NATURAL GAS INLET GAS INLET MANUAL SHUT-OFF VALVE Figure 2-7b: BMK1500 – 5000N Gas Regulator and Manual Shut-Off Valve NATURAL GAS MANUAL SHUT-OFF VALVE NATURAL GAS NATURAL GAS PRESSURE REGULATOR SUPPLY PROPANE...

  • Page 32: Manual Gas Shutoff Valve

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION PROPANE PRESSURE REGULATOR MINIMUM 10 PIPE DIAMETERS IN LENGTH DRIP LEG NATURAL GAS PRESSURE REGULATOR 2” MANUAL GAS SHUT-OFF VALVE NATURAL GAS SUPPLY DRIP LEG Figure 2-7d: BMK5000-6000 Manual Gas Shut-Off Valve Location – Dual Fuel 2.9.2.1 Massachusetts Installations Only For Massachusetts installations, a mandatory external gas supply regulator must be positioned as shown in Figure 2-7a –...

  • Page 33: Ac Electrical Power Wiring

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.10 AC ELECTRICAL POWER WIRING AERCO’s Benchmark Electrical Power Design Guide, TAG-0048 (GF-2060), must be consulted prior to connecting any AC power wiring to the unit. 2.10.1 Electrical Power Requirements Benchmark boilers are available with the following power options: BMK Model Voltage...

  • Page 34: Electrical Power Panel Internal Components

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION POWER BOX FRONT COVER Figure 2-8b: BMK1500 – 6000 Power Box with Closed Cover Each unit must be connected to a dedicated electrical circuit. NO OTHER DEVICES SHOULD BE ON THE SAME ELECTRICAL CIRCUIT AS THE BOILER. A switch must be installed on the electrical supply line, external to the unit, in an easily accessible location to quickly and safely disconnect electrical service.
  • Page 35 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION FUSE BLOCKS (2) POWER BREAKER 12V POWER SUPPLY TERMINAL BLOCKS FLAME ROD SIGNAL AMPLIFIER TRANSFORMER 115V/24V 24 V POWER SUPPLY (SEQUENCING VALVE) Figure 2-9a: BMK750-1000 Power Box Internal Components WIRE CONDUITS POWER BREAKER...

  • Page 36: Field Control Wiring - I/O Board

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION WIRE CONDUITS POWER BREAKER TRANSFORMER 24V POWER SUPPLY 12V POWER SUPPLY TERMINAL BLOCKS FUSE BLOCKS (2) Figure 2-9c: BMK2500 – 6000 Power Box Internal Components NOTES: • With the exception of the transformer shown in the Figures above, all of the components in the Power Box are mounted on a DIN rail.
  • Page 37 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION TERMINAL STRIPS BMK750/1000 BMK1500-6000 I/O BOARD Figure 2-10: Input/Output (I/O) Box Location NOTE: Use Figure 2-11, below, to determine the functions of the I/O board connections. Do not use the silkscreened label on the I/O board itself, as some labels may not match the functions.

  • Page 38: Outdoor Air & Air Sensor Common

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION Remote Intl’k OUT Air Sensor Common Remote Intl’k IN Air Temp Sensor O2 Sensor – NOT USED Not Used Delayed Intl’k OUT Spark Signal + Delayed Intl’k IN Spark Signal – Not Used O2 Sensor + Not Used...

  • Page 39: Air Temp Sensor

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.11.2 AIR TEMP SENSOR The AIR TEMP SENSOR terminal is used to monitor the air inlet temperature sensor (P/N 123449). This input is always enabled and is a “view only” input. It can be seen in the BST Main Menu →...

  • Page 40: Shield (Shld & Shld)

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION (a) If the valve fails with the Valve Stuck Open fault, the “Valve Stuck Open” message will be displayed and the unit will remain active. (b) If the valve fails with the Valve Stuck Closed fault, the “Valve Stuck Closed” message will be displayed and the unit will shut down.

  • Page 41: Interlocks

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.11.12 Interlocks The unit has two interlock circuits for interfacing with Energy Management Systems and auxiliary equipment such as pumps, louvers or other accessories. These interlocks are called the Remote Interlock and Delayed Interlock (REMOTE INTL’K IN and DELAYED INTL’K IN in Figure 2-11).

  • Page 42: Flue Gas Vent Installation

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.12 FLUE GAS VENT INSTALLATION AERCO’s Benchmark Venting and Combustion Air Design Guide, TAG-0022 (GF-2050) must be consulted before any flue or combustion air venting is designed or installed. Suitable, U/L approved, positive pressure, watertight vent materials MUST be used for safety and UL certification.

  • Page 43: Combustion Air

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION 2.13 COMBUSTION AIR The Benchmark Venting and Combustion Air Guide, TAG-0022 (GF-2050) MUST be consulted before any inlet air venting is designed or installed. Air supply is a direct requirement of ANSI 223.1, NFPA-54, CSA B149.1 and local codes.
  • Page 44 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION PUMP RELAY POWER BOX Figure 2-12a: BMK750/1000 Pump Relay Location POWER BOX PUMP RELAY Figure 2-12b: BMK1500 – 6000 Pump Relay Location (BMK2500/3000 Shown) See Figures 2-13 and 2-14 for wiring details. (Orange) –...

  • Page 45: Bst Sequencing Isolation Valve Installation

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION If pump/valve load exceeds the above contact ratings, use a separate contact relay, as shown in Figure 2-14. (Orange) – (Yellow) - Pump Relay Terminals Contact Relay (Supplied by Others) POWER PUMP(S) FROM INDEPENDENT FUSED CIRCUITS...
  • Page 46 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 2 – INSTALLATION Sequencing Isolation Valve Installation Instructions AERCO SEQUENCING ISOLATION VALVE HOT WATER OUTLET Figure 2-15: Sequencing Isolation Valve Installed 2. Find the grey cable inside the unit’s enclosure with the unused Molex connector with a cap containing a jumper wire inserted in it (the jumper wire allows units that do not have a sequencing isolation valve to operate normally).

  • Page 47: Section 3: Onaer Setup

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 3 – ONAER SETUP SECTION 3: onAER SETUP 3.1 INTRODUCTION AERCO has developed new connectivity capabilities to make its IoT offering, onAER, easier for its broad customer base to implement. The onAER feature lets AERCO boilers be monitored remotely.

  • Page 48: Confirming The Ethernet Connection

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 3 – ONAER SETUP Connecting The Ethernet Cable Instructions USB JACK ETHERNET JACK Figure 3-1: Edge Controller – Left Side View 3.1.2 Confirming the Ethernet Connection Refer to Figure 3-2, below, and complete the following instructions to confirm that the Ethernet cable connection is working.

  • Page 49: Confirm Ethernet Dhcp Configuration

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 3 – ONAER SETUP 3.1.3 Confirm Ethernet DHCP Configuration Once you have confirmed that the Ethernet connection is working, complete the following steps to confirm that the connection is active. Confirming Ethernet DHCP Configuration Instructions 1.
  • Page 50 Benchmark 750-6000 with Edge [i]: Install-Startup Manual SECTION 3 – ONAER SETUP (This page intentionally blank) OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 50 of 62...

  • Page 51: Appendix A: Dimensional And Clearance Drawings

    Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Appendix A: Dimensional and Clearance Drawings Benchmark 750-1000 Dimension Drawing AP-A-891 rev H OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 51 of 62...
  • Page 52 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 750-1000 Clearance Drawing AP-A-871 rev C OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 52 of 62...
  • Page 53 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 750-1000 Zero Side Clearance Drawing SD-A-872 rev C OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 53 of 62...
  • Page 54 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 1500-2000 Dimension Drawing AP-A-936 rev D OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 54 of 62...
  • Page 55 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 1500-2000 Clearance Drawing SD-A-995 rev A OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 55 of 62...
  • Page 56 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 2500-3000 Dimension Drawing AP-A-900 rev E OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 56 of 62...
  • Page 57 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 2500-3000 Zero-Side Clearance Drawing SD-A-898 rev C OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 57 of 62...
  • Page 58 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 4000-5000N Dimensional Drawing AP-A-1052 rev D OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 58 of 62...
  • Page 59 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 4000-5000N Clearance & Dimensional Drawing Number: SD-A-1191 rev C OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 59 of 62...
  • Page 60 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 5000-6000 Dimension Drawing AP-A-1048 rev A OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 60 of 62...
  • Page 61 Benchmark 750-6000 with Edge [i]: Install-Startup Manual APPENDIX A – DIMENSIONAL AND CLEARANCE DRAWINGS Benchmark 5000-6000 Zero-Side Clearance Drawing SD-A-919 rev F OMM-144_B • GF-217 • Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST 5/25/2020 Page 61 of 62...
  • Page 62 Benchmark 750-6000 with Edge [i]: Install-Startup Manual Change Log: Date Description Changed By 12/6/2019 Rev A: Initial release (internal ref DIR-19-46) Chris Blair Rev B: DIR 20-13: Updated Figure 2-5a to show new location for Tridicator on BMK 750/1000 units. Linley 5/25/2020 Added BMK 5000N to various sections.\...
