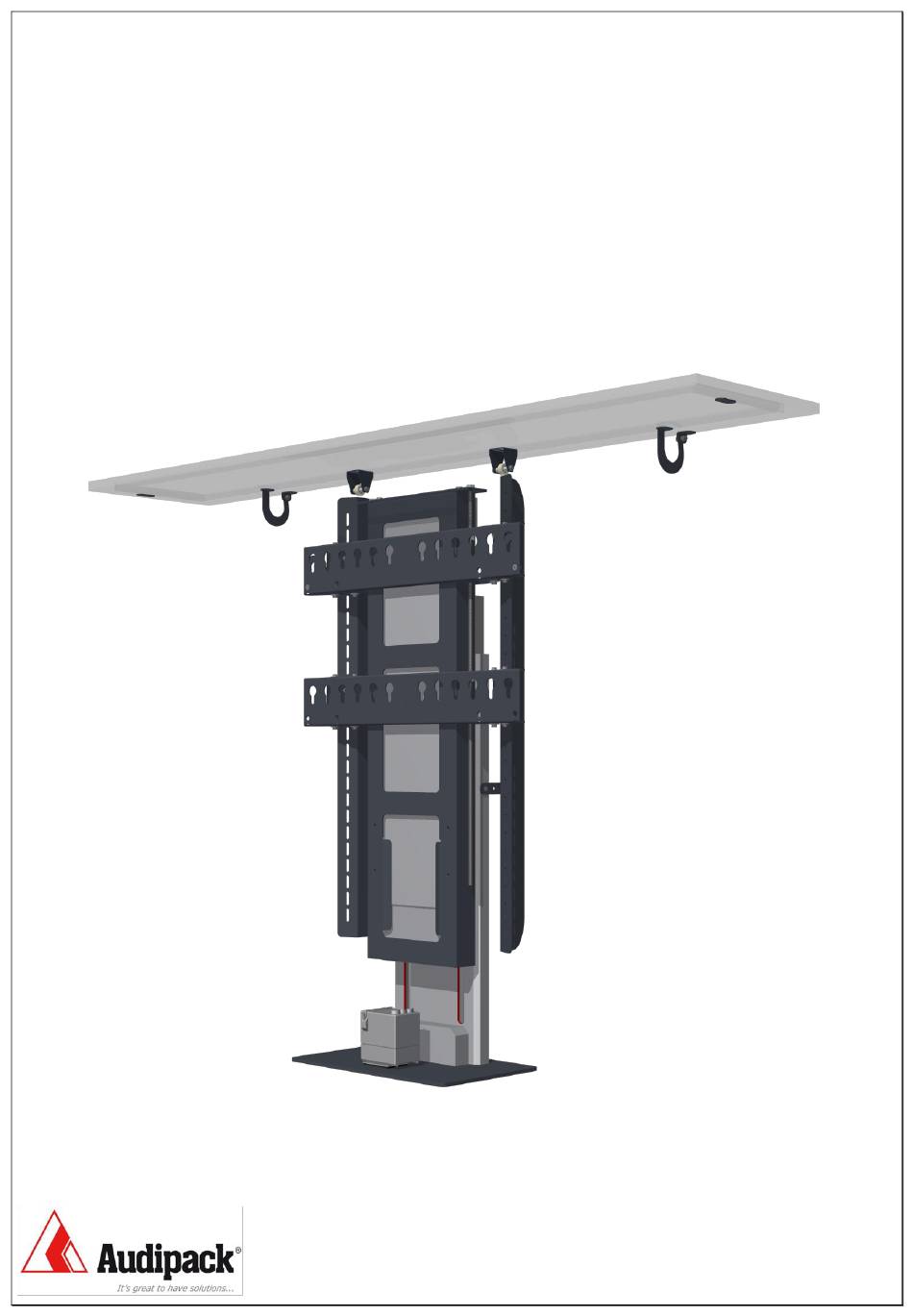

  • Page 1 FPL-90E Flat panel XXL lift system Mounting instructions Montage handleiding...
  • Page 2 Safety instructions:  Check the unit for damages caused by transport. In case of damage please report directly to the transporter and Audipack to provide a quick solution.  Read the manual carefully before installing.  The lift weighs aprox. 56 Kg. Please install the lift system with at least two installers.

  • Page 3: Table Of Contents

    Index Table of Contents General features ................... 4 Specifications ..................4 Technical data ................4 Scope of delivery ................4 Accessories ..................4 Required for installation ................. 5 Mounting experiences ..............5 Mounting the product compact ............... 6 Preparations for mounting in the cabinet ..........6 Table hatch of the cabinet ..............

  • Page 4: General Features

    Package of contents 1 General features (EN) Slim telescopic lift system suitable for the larger flat panels up to 90 inch (max. 1300 m height). (NL) Slanke telescopische hefkolom voor de grotere beeldschermen tot 90 inch (max. 1300 m hoogte). 2 Specifications 2.1 Technical data (EN)

  • Page 5: Required For Installation

    Mounting tools 3 Required for installation (EN) For the installation of the lift you need at least the following mounting tools: (NL) Om het product te kunnen installeren / monteren heeft u minimaal de volgende gereedschappen nodig: drill drill bit hammer screwdriver boormachine...

  • Page 6: Mounting The Product Compact

    Assembling 4 Installing the product 4.1 Preparations for installing in the cabinet (EN) Make sure the system is level positioned, flat surface and free of obstructions. Use all available mounting holes to install the system. Also this model has an wall mounted anti-tip bracket.
  • Page 7 Assembling 4.2 Table hatch of the cabinet (EN) The lift needs an opening in the cabinet. The cut out in the hatch is determined by the size (width) of the monitor and lift system (depth). Apply extra space next to the monitor for safety clearance (30 mm for fingers). Check the given lift dimensions for placing the lift in the cabinet.
  • Page 8 Assembling Pagina 8 van 13...

  • Page 9: Mounting The Table Hatch

    Assembling 4.3 Mounting the table hatch (EN) Install the hinge parts on the lid. (NL) Monteer de scharnieronderdelen op de klep. Hatch/ Klepsteunen Hinges/ Scharnieren Wheels/ Loopwielen 5 Mounting the lift in the cabinet (EN) Install the lift system on the bottom of the cabinet. Be sure that the system is positioned in a way that it is centered in the table top cut out.

  • Page 10: Mounting The Monitor

    Assembling (NL) De lift is een plug-and-play systeem. Graag alvorens de specificaties op het etiket van de lift controleren en de stroomvoorzieningen. Zorg ervoor dat de lift niet op het lichtnet is aangesloten bij het schoonmaken en het onderhoud van de lift.

  • Page 11: Mains Connection Of The Control Unit

    Controller 6 Mains connection of the control unit For connecting or activating the system use the standard control or control it with a DIN plug. When the system must be connected or activated with an external control system, use the above listed option: Use a separate potential free relay or switch with neutral middle position for each direction.

  • Page 12: Dimensions And Illustrations

    Technical data 7 Dimensions and illustrations Pagina 12 van 13...
  • Page 13 Email: audipack@audipack.com www.audipack.com Audipack reserves the right to make changes in specifications and other information contained in this document without prior written notice. The information provided herein is subject to change without notice. In no event shall Audipack be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Audipack has been advised of, known, or should have known, the possibility of such damages.
