Read the manual carefully before installing!
−−−−−−−
Lees aandachtig de gebruiksaanwijzing alvorens te beginnen met de installatie!
−−−−−−−
Bitte beobachten Sie den gebrauchsanleiting bevor Sie anfangen mit installieren!.
−−−−−−−
S'il vous pla
t, lisez attentivement le mode d'emploi avant commencer l'installation!
î
ML/XL350
© AUDIPACK
Advertisement
Related Manuals for Audipack ML-350 Series
Summary of Contents for Audipack ML-350 Series

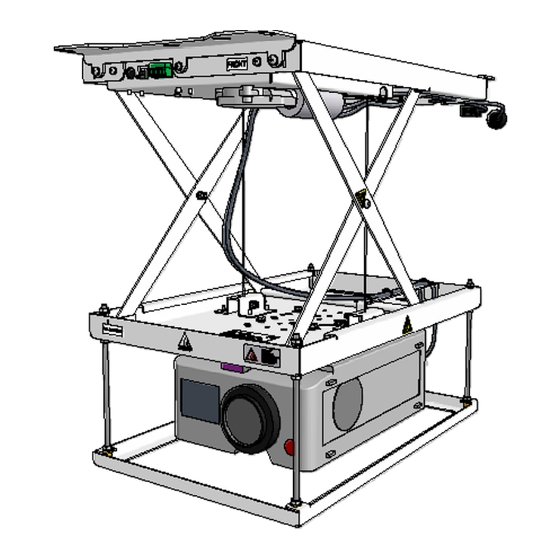

- Page 1 Read the manual carefully before installing! −−−−−−− Lees aandachtig de gebruiksaanwijzing alvorens te beginnen met de installatie! −−−−−−− Bitte beobachten Sie den gebrauchsanleiting bevor Sie anfangen mit installieren!. −−−−−−− S’il vous pla t, lisez attentivement le mode d’emploi avant commencer l’installation! î ML/XL350 © AUDIPACK...
- Page 2 AUDIPACK Industriestraat 2-4 2751 GT Moerkapelle the Netherlands Tel: +31(0)795931671 Fax: +31(0)795933115 Email: audipack@audipack.com ® AUDIPACK www.audipack.com ML-350 Series XL-350 Series Mounting instructions Montagevoorschrift Instructions de montage Montageanleitung ML/XL350_01_2008-08 © AUDIPACK...
- Page 3 ML/XL350 © AUDIPACK...
- Page 4 Optional / Optioneel / Optional 39..Remote Control / Afstandsbediening / Fernbedienung 440109 IR CABLE DIN 125 - M6 2x AAA 1.5V RF CABLE DIN 934 - M6 260195 (IR) 260196 (RF) DIN 975 - M6X245 IR/ RF RECEIVER 260192 ML/XL350_02_2008-10 © AUDIPACK...
- Page 5 ≥4x CONCRETE WOOD BETON HOLZ BÉTON BOIS BETON HOUT DIN 571 - M6x80 DIN 16268 - M6x75 min. min. min. ML/XL350_03_2006-05 © AUDIPACK...
- Page 6 12-24 VDC and 230 VAC! 'appendix 260204 MOTOR CARD'. Controlled by computer (for example). External cable control box DOWN COMMON DOWN -K1 and K2 are relays. -k1 and k2 are relays. ML/XL350_04a_2010-03 AUDIPACK...
- Page 7 Wall switch External cable control box (not the motor control box!) (with neutral position) (not supplied) DOWN COMMON -A and B are potential free contacts. -A: up or down. -B: down or up. -M: middle position (!). MKT Series-04b-2010-03 AUDIPACK...
- Page 8 ML/XL350_05_2006-05 © AUDIPACK...
- Page 9 392266 39..(Optional) oder M6x20 (4X) Max. 10kg ML/XL350_06_2007-09 © AUDIPACK...
- Page 10 XL=480mm Dimensions are indications, not to be used for any preparations. No rights can be derived from the above dimensions. ML/XL350_07_2006-05 © AUDIPACK...
- Page 11 11.1. ML-350=355mm XL-350 =515mm 515mm 11.1.1. M4x12 (8X) + (4X) ML/XL350_08_2006-05 © AUDIPACK...
- Page 12 11.1.2. 11.2. 340mm ML-350 = ≥ 500mm XL-350 = ≥ 500mm ≥ Dimensions are indications, not to be used for any preparations. No rights can be derived from the above dimensions. ML/XL350_09_2006-05 © AUDIPACK...
- Page 13 11.2.1. (4x30) (4X) Max. 11.2.2. ML/CL350_10_2006-05 © AUDIPACK...
- Page 14 11.2.3. Naar boven Nach oben Down Naar beneden Herunter ML/XL350_11_2006-05 © AUDIPACK...
- Page 15 DIN 125-1 - A 4,3 - ST 8.8 (6X) 868 MHz (3X) DIN 7985 - M4x10 - 4.8 - H - ST 8.8 NR.1 DOWN DOWN DOWN NR.5 1-12 KANALEN 1-12 CHANNELS 1-12 CANAUX 10-12 1-12 KANALEN NR.12 10-12 ML/XL350_12_2010-03 AUDIPACK...
- Page 16 NOTE: When installing the 260192 power supply be sure that the plugged in. ML/XL350_13_2010-03 AUDIPACK...
- Page 17 ML-350/2 XL-350/2 POWER PRIMAIR - 100-240 V AC, 47~63Hz / SECUNDAIR 24V DC, 1.05A LOAD MAX. 10 kg Dimensions are indications, not to be used for any preparations. No rights can be derived from the above dimensions. ML/XL350-14-2006-05 © AUDIPACK...
- Page 18 After 60 seconds, the controls will function again according to tous commandes fonctionnent conform le dernier réglage the latest adjustments. 10-12 60 sec. AUDIPACK Industriestraat 2-4 2751 GT Moerkapelle the Netherlands Tel: +31(0)795931671 Fax: +31(0)795933115 ® Email: audipack@audipack.com AUDIPACK www.audipack.com Manual 260195_01_2007-02 AUDIPACK...
- Page 19 Pulse or Constant, adjusting Overload Protection Motor connector Section view A External limit switch connector C. External limit switch connector D. DIP switch A DIP switch B on circuit board. on circuit board. Overload potentiometer. Looped Manual 260204_01_2008-10 © AUDIPACK...
- Page 20 Een afschrift hiervan kunt u downloaden van de website van Audipack, www.audipack.com, of wordt u op aanvraag gestuurd per post. Les conditions de vente et de livraison de Audipack s'appliquent à tous les livraisons de Audipack. Cettes conditions sont disponible sur le site internet de Audipack, www.audipack.com, où seront envoyé...
- Page 21 Audipack ® www.audipack.com Industriestraat 2-4 2751 GT Moerkapelle The Netherlands audipack@audipack.com Product Ceiling lift Type ML-350/1, ML-350/2, XL-350/1 and XL-350/2 Konformitätserklärung für Maschinen Wir erklären hiermit daß die Produkte konform sind mit den einschlägigen Bestimmungen der EG-Maschinen richtlinie: Maschinenrichtlinie 89/392/EEG mit 91/368/EEG und 93/44/EEG...
