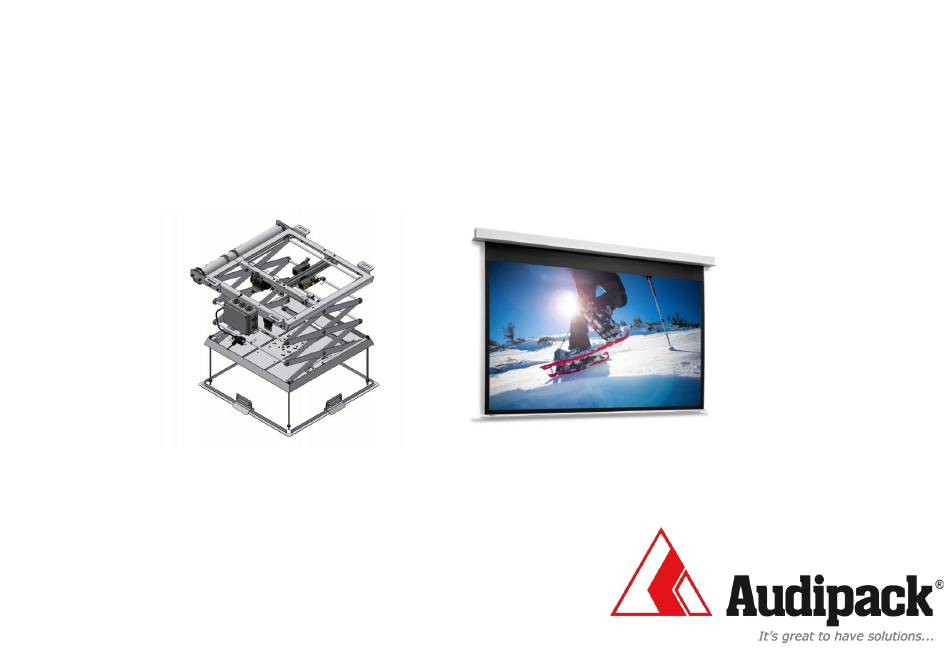

- Page 1 How to connect a projection screen to an Audipack ceiling lift...
- Page 2 • Connect UP wires to the UP of the screen control. Explanation: The end switches of the lift will activate the screen control. Use the standard external control connection of the Audipack lift to control both systems. Use an optional Audipack RF remote (261436) set if required.
- Page 3 Option 2: Control lift & screen with an Audipack screen PCB (261125) 261125 How to connect: • Connect a cable to end-switch UP and end-switch DOWN to the NO (normally opened) side of the switches. • Connect the DOWN switch to command DOWN of the screen control box •...
