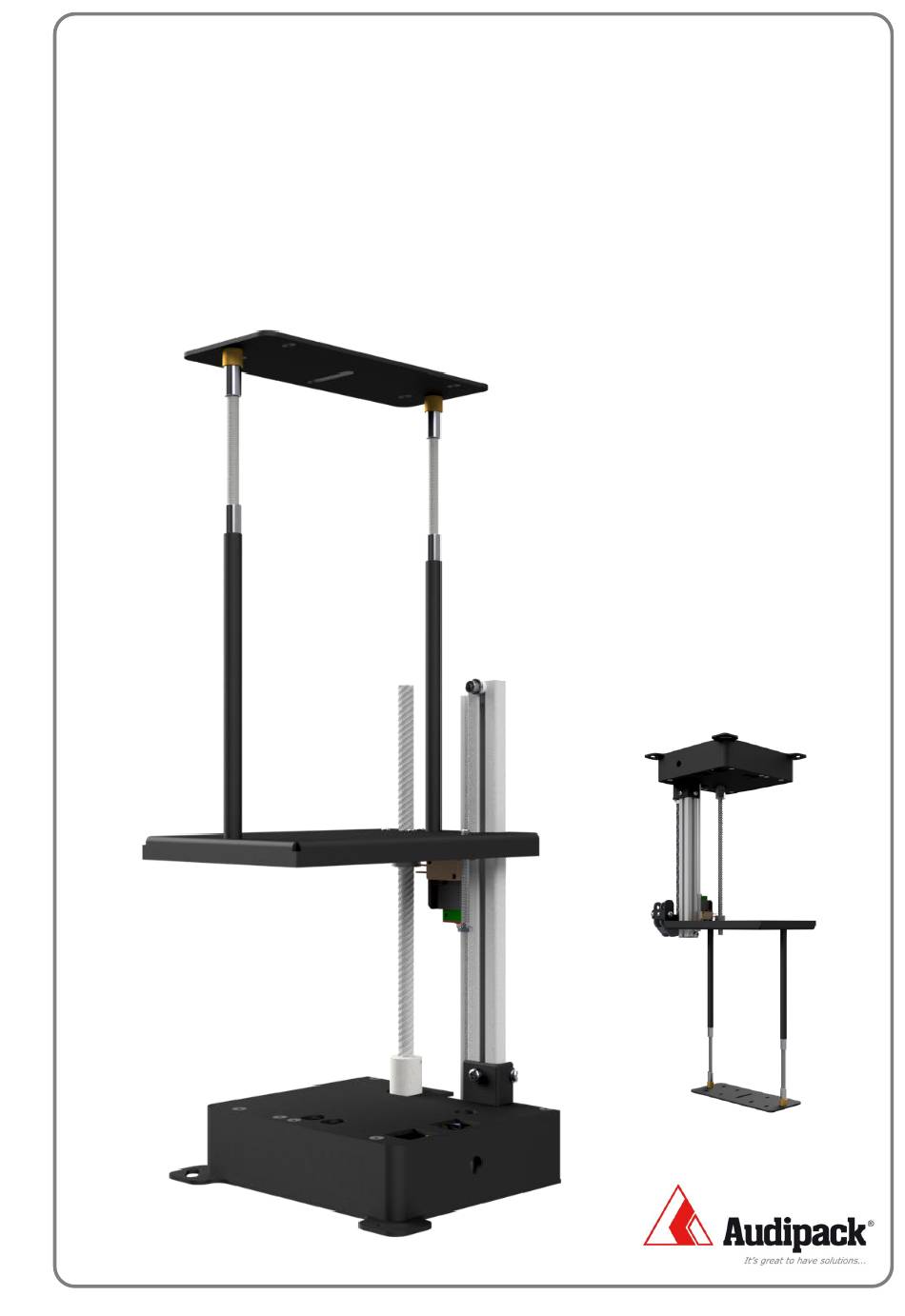

- Page 1 VCL-1UP VCL-1DOWN (appendix) Installation manual Montage handleiding Videoconference Camera Lift © Audipack...
- Page 2 Ones installed it is possible to set the height of the top finishing by adjusting / shortening the winded rods of the top bracket. Eenmaal geinstalleerd in het meubel, is het mogelijk om de top afwerking op j=hoogte te stellen met de verstelbare / in te korten draadeinden in de beugel. © Audipack...
- Page 3 Maximale hoogte afstelling door aangegeven bout positie aan te passen. Adjusting min. height by loosening security nut and change position for bolt. Fasten nut after adjusting. Minimale hoogte afstelling door aangegeven borgmoer te lossen en bout positie aan te passen. Daarna borgmoer weer vastzetten. • © Audipack...
- Page 4 Accessing internals. Toegang tot binnenwerk. • © Audipack...
- Page 5 View internals. Intern aanzicht. • © Audipack...
- Page 6 De VCL is voorzien van een mechanische afknelbeveiliging. Als de lift wordt tegen gehouden in neerwaartse richting i=ontkoppeld de spindelmoer van de camera loopwagen. Dit is merkbaar door een ander geluid of trillend product. IN dat geval kunt u de moer weer terugplaatsen in het patroon van de loopwagen. • © Audipack...
- Page 7 It is free to drill holes in the camera mounting plate to fasten the camera. De camera kan geplaats en gemonteerd worden op het platform gebruikmakend van de camerastatief gat in de camera. Het is vrij om montagegaten te boren in het platform voor de camera. • © Audipack...
- Page 8 VCL-1DOWN The ceiling mounted version, the VCL-1DOWN in phisically the same lift but with a modification on the drive component that makes the lift suitable for ceiling mounting. Function and connections are the same as the VCL-1UP. Deplafond gemonteerde VCL-1DOWN is techniscg gelijk als de VCL-1UP echter heeft deze lift een wijziging op de aandrijving.
- Page 9 Common Information Note: Your Audipack product is equipped with a DC 24 volt control as below. This control has been designed to control an external product suitable for controlling by contact closures. This type of control is also available as a set inclusive a IR remote set part no.
- Page 10 Pin 5: end switch DOWN Pin 6: Connector 6: All below connections are potential free contacts Pin 1: external control DOWN Pin 2: Pin 3: external control UP SW3: Print switch impulse push = OFF ON = ON • © Audipack...
- Page 11 The power cable must be conform (3x1 mm²) EN60227 Binding the wiring together All wiring must be wrapped together by a tie-rap to prevent the wiring from falling out of the connector. The tie-rap will always keep the loose thirds in the connector. • © Audipack...
- Page 12 Installation diagram: • © Audipack...
- Page 13 Audipack reserves the right to make changes in specifications and other information contained in this document without prior written notice. The information provided herein is subject to change without notice. In no event shall Audipack be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Audipack has been advised of, known, or should have known, the possibility of such damages.
