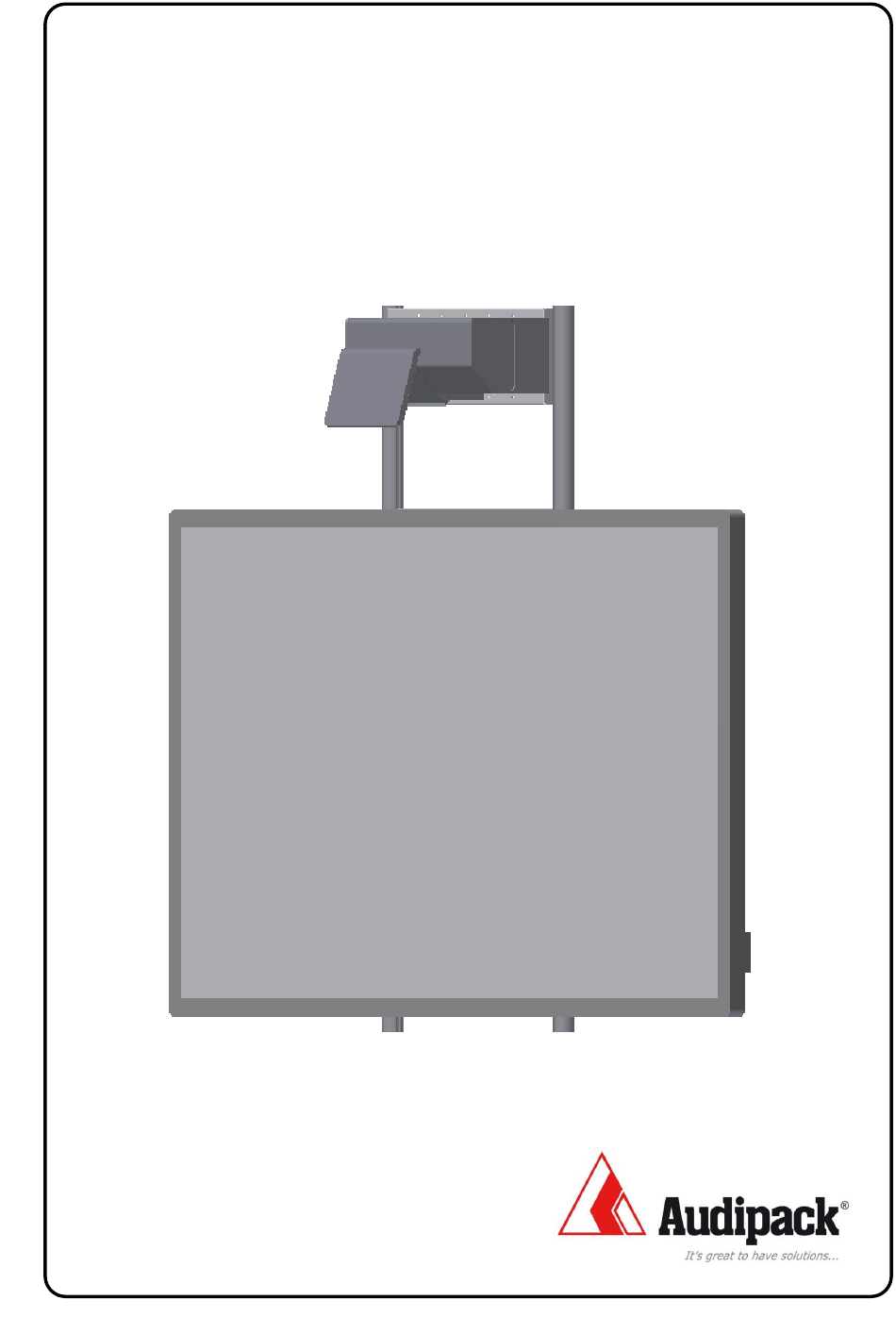

- Page 1 DWS-Smart Wall mounted lift system © Audipack...
- Page 2 18 pieces M8x16 alan screws 8 pieces 8x20 ringen 3 pieces M5x8 schroef 4 pieces M6x20 alan screw with rings 4 pieces M8x25 with rings and nuts for mounting an optional PWM-ST arm Use applicable wall mounting materials. © Audipack...
- Page 3 Install the 4 green bearrings in a way that they are not fixed installed, but that the can settle during assembly in the next steps. Use: 12 pieces M6 x 20 alan screws for the tubes 12 pieces M6 x 25 bolts with rings and nuts for the bearrings © Audipack...
- Page 4 The position of the push bar must be adjusted in position in a later stage. Projector holder Push bar Mounting ear 4x Tube 2x Use: 18 pieces M8 x 16 alan bolts and square nuts Use 8 pieces 8x20 spacer rings for the mounting ears © Audipack...
- Page 5 Slide-in the projector frame assembly in the wall frame assembly. Be sure the green bearrings are not over tightend and they are free to settle. © Audipack...
- Page 6 The over length of cables can be put in the short tube through the bottom; this to organize the cables of the lift system and keep them free from moving parts. Always make sure, that the 2 tubes are 680 mm with the motor retracted in lowest position!!! Cable inlet © Audipack...
- Page 7 Install the lift with a specific distance from the floor. The height position is free to choose, use 1250 mm when the systems is used in combination wit the floor support option. © Audipack...
- Page 8 Install the projector to the projector holder or use an Audipack PWM-ST short throw arm. Use the pre-drilled holes or drill new holes for the projector that is being used. Use proper monting material to install the projector. Please refer to the user guides of the projector to position the projector on the right horizontal position.
- Page 9 / in the plastic strip of the bord. On the board to plastic strips are attached; these are used to lock and secure the board. The supplied M5x8 screws and large washers clamp the plastic strip to the mounting ears. © Audipack © Audipack...
- Page 10 / attached colour scheme to activate the system. Second option is to use a new control cable with an RJ45 connector. Pos. 8 red (down) Pos. 5 green (up) Pos. 4 blue (common) 2011-05 © Audipack...
- Page 11 Single column connecting diagram. Connect column and controll to ports: 1 2011-05 © Audipack...
- Page 12 Audipack reserves the right to make changes in specifications and other information contained in this document without prior written notice. The information provided herein is subject to change without notice. In no event shall Audipack be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Audipack has been advised of, known, or should have known, the possibility of such damages.
