Sabre P PD603 Low-Cost Process Meter
Instruction Manual
•

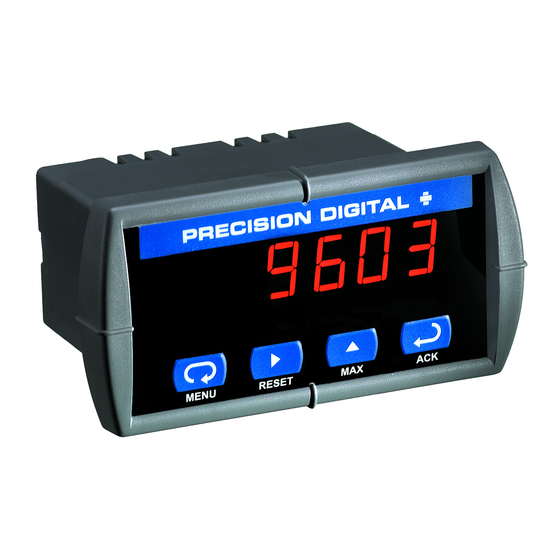

1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
•
0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs
•
4-Digit Display, 0.56" (14.2 mm)
•
Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel
•
Isolated 24 VDC @ 200 mA Transmitter Power Supply Option
•
No Assembly Required
•
Operating Temperature Range: 0 to 65°C (32 to 150°F)
•
UL & C-UL Listed. E160849; 508 Industrial Control Equipment
•
Input Power Options: 85-265 VAC / 90-265 VDC or 12-36 VDC / 12-24 VAC
•
Max/Min Display
•
Easy Front Panel Programming; No Jumpers, Switches or Solder Pads
•
Wide Assortment of NEMA 4X Enclosures for up to Ten Meters
•
1-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
Advertisement
Table of Contents
Related Manuals for PRECISION DIGITAL Sabre Series
Summary of Contents for PRECISION DIGITAL Sabre Series
- Page 1 Easy Front Panel Programming; No Jumpers, Switches or Solder Pads • Wide Assortment of NEMA 4X Enclosures for up to Ten Meters • 1-Year Warranty PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com...
-
Page 2: Introduction
PD603-6R0-0* PD603-7R0-0 Process Meter Anyone using this product for such applications Process Meter with does so at his/her own risk. Precision Digital PD603-6R0-1* 24 V transmitter Corporation shall not be held liable for damages supply resulting from such improper use. -
Page 3: Table Of Contents
Sabre P PD603 Low-Cost Process Meter Instruction Manual Table of Contents Introduction ......................2 Ordering Information ................... 2 Specifications....................... 4 General ......................4 Process Input ....................4 Compliance Information ..................5 Safety ........................ 5 Electromagnetic Compatibility ............... 5 Safety Information ....................5 Installation ...................... -
Page 4: Specifications
Sabre P PD603 Low-Cost Process Meter Instruction Manual Specifications Tightening Screw terminal connectors: 5 lb-in Torque (0.56 Nm) Except where noted all specifications apply to Overall 2.45" x 4.68" x 4.19" operation at +25°C. Dimensions (62 mm x 119 mm x 106 mm) General (H x W x D) Weight... -
Page 5: Compliance Information
Sabre P PD603 Low-Cost Process Meter Instruction Manual Compliance Information Safety Information Safety • Read complete instructions prior to installation USA and Canada UL Listed and operation of the meter. UL 508 Industrial Control Equipment UL File Number E160849 • Risk of electric shock or personal injury. -
Page 6: Installation
Sabre P PD603 Low-Cost Process Meter Instruction Manual Installation Mounting Dimensions There is no need to remove the meter from its case to complete the installation, wiring, and setup of the 1.76" (45mm) meter. Unpacking Remove the meter from box. Inspect the packaging and contents for damage. -
Page 7: Connections
Sabre P PD603 Low-Cost Process Meter Instruction Manual Signal Connections Connections Signal connections are made to a five-terminal All connections are made to removable screw connector labeled SIGNAL. The COM (common) terminal connectors located at the rear of the meter. terminal is the return for all types of input signals. -
Page 8: Setup And Programming
Sabre P PD603 Low-Cost Process Meter Instruction Manual Setup and Programming Display Functions and Messages There are no jumpers involved in the setup process of the meter. The switch, located between the SIGNAL The meter displays various functions and messages and the RJ11 connectors are not used with the during setup/programming and operation. -
Page 9: Main Menu
Sabre P PD603 Low-Cost Process Meter Instruction Manual Main Menu Setting Up the Meter (setu) The main menu consists of the following functions: The Setup menu is used to select: Setup and Password. Input signal the meter will accept • Press Menu button to enter Programming Mode Decimal point position then press Up arrow button to scroll main menu. -
Page 10: Programming The Meter (Prog)
Sabre P PD603 Low-Cost Process Meter Instruction Manual Error Message (Err) Programming the Meter (prog) An error message indicates that the calibration or The meter may either be scaled (ScAL) without scaling process was not successful. applying an input or calibrated (Cal) by applying an After the error message is displayed, the meter input. -
Page 11: Setting Up The Password (Pass)
Sabre P PD603 Low-Cost Process Meter Instruction Manual Operation Setting Up the Password (pass) For process inputs, the meter is capable of accepting The Password menu is used to program a four-digit positive and negative signals and displaying these password to prevent unauthorized changes to the signals in engineering units from -1999 to 9999 (e.g. -
Page 12: Troubleshooting
Sabre P PD603 Low-Cost Process Meter Instruction Manual Troubleshooting The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. Troubleshooting Tips Symptom Check/Action Check power at power connector No display at all Meter is locked, enter correct four-digit password to unlock... -
Page 13: Eu Declaration Of Conformity
EN 55011:2009+A1:2010, EN 61000-6-2:2005, EN 61010-1:2010, and EN 61326:2013 and there were no major technical changes affecting the latest technical knowledge for the products listed above. Product Markings: Signed for and on behalf of Precision Digital Corporation: Name: Jeffrey Peters Company:... - Page 14 Sabre P PD603 Low-Cost Process Meter Instruction Manual Contact Precision Digital Technical Support Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: support@predig.com Sales Support Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com...
