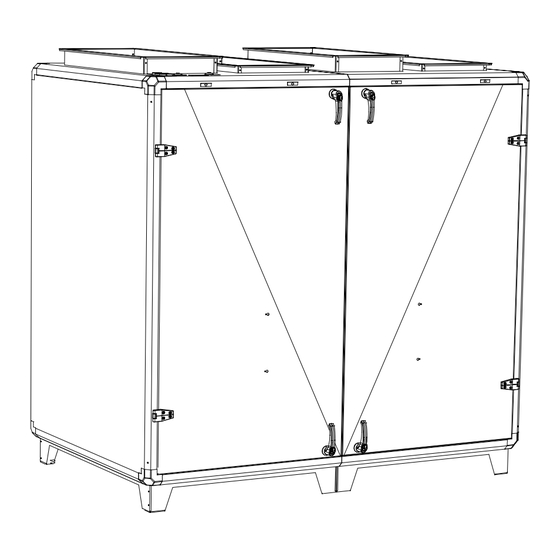

Topvex TR09, TR12, TR15
Compact Air Handling Unit
Operation- and maintenance instructions
GB
Corrigo ver. no. 2.1-1-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Topvex TR09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SystemAir Topvex TR09

Summary of Contents for SystemAir Topvex TR09

  • Page 1 Topvex TR09, TR12, TR15 Compact Air Handling Unit Operation- and maintenance instructions Corrigo ver. no. 2.1-1-02...
  • Page 2 Terminal blocks for mains supply and external connections. Overheating protection EL- heating battery, Manual reset. Overheating protection EL- heating battery, Automatic reset. ADO – tool Fig. 2 _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 3 7a. Yellow cable 3. Write enable LED 7b. Orange cable 4. OK button 7c. Red cable 5. Clearing button 7d. Brown cable 6. Mounting holes 7e. Black cable _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...

  • Page 4: Table Of Contents

    Introduction Installation, operation and maintenance manual concerns air handling unit type Topvex TR, manufactured by Systemair AB. It consists of basic information and recommendations concerning the design, installation, start-up and operation, to ensure a proper fail-free operation of the unit.

  • Page 5: Operation

    To pass a value without changing it, press RIGHT. To abort a change and return to the initial setting, press and hold the C-button until the cursor disappears. _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...

  • Page 6: Alarms

    Switch on the supply voltage  Set present time and date, set the control temperature and program the week schedule. Do the necessary settings for extra functions if any. _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...

  • Page 7: Table Of Contents - Control Unit Manual

    (Log on to any level by entering a 4-digit code) -Log on (Log off from present level to the basic “no-log on” level) -Log off (Change password for accessing different levels) -Change password _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...

  • Page 8: Control Unit, Manual

    Control unit, manual Topvex TR 15 HW flow - Start Screen Headline. 05:10:21 16:03 Can be set to 5 different layouts. System:Normal run (see page 11. Configuration/System/Choose Start Screen ). Sp: 0.0Act: 0.0°C Actual/Setpoint Outdoortemp: 0.0°C Show actual Outdoor temperature and Supply air temperature. Supply air temp Show Setpoint of the Supply air temperature.
  • Page 9 Outdoor comp. setp. Set the outdoor compensation for the flow/pressure regarding to the outdoor temp °C = 0.0 m³/h Set maximum compensation. °C = 0.0 m³/h Set when comp. should start. Act. Comp: 0.0 m³/h Show actual compensation. Flow control EAF Pressure control EAF Used when the unit is configured for constant flow or constant pressure control.
  • Page 10 Timer Reduced Speed Reduced Speed Set the time when the unit should run on Reduced fan speed. It is possible to set two Periods for Monday each weekday. Choose weekday with arrow up and down buttons. N.B. For continuous running set 00:00-24:00 and Normal fan speed time to 00:00- 00:00. Per 1: 00:00- 00:00 Per 2: 00:00- 00:00 Reduced Speed...
  • Page 11 Exchanger Set the output signal to Auto, Manual or Off. Auto Set the output signal to 0-100% (when the output signal is set to Manual). Manual set: 0.0 Cooling Set the output signal to the Cooling to Auto, Manual or Off. Auto Set the output signal to 0-100% (when the output signal is set to Manual).
  • Page 12 Universal inputs Set the Configuration of the Analogue inputs. Set the compensation if there is a deviation between actual and measured value, normaly not needed. Show actual input "Raw" value, 0-10V DC or °C. Set the Configuration of the Digital inputs. Show the status to On or Off.
  • Page 13 Free cooling Free cool active: No Set if the Free cooling function should be active or not. Outd.temp activation Set the lowest outdoor temperature (day temp.) limit when the Free cooling function should be activated. 0 °C Outd.temp night Set between which night temperatures the Free cooling should be activated, High and Low. High: 0.0 °C Set the lowest Room temperature when the Free cooling should stop.
  • Page 14 External setpoint External setpoint Set if the External setpoint function should be active or not. Not active Set the working range (minimum and maximum) for the external setpoint device (PT1000). Min setp.: 0.0 °C Max setp.: 0.0 °C Actuator type Actuator type Set the signal type that works with the actuator Y1, Y2, and Y3.
  • Page 15 System Choose Language Set the menu Language. English Note: A short cut to the menu language is by pressing the OK button at the same time as the main voltage is switched on. Choose Start Screen Set the start screen. Choose between 5 different settings: Type 1 Topvex TR 15 HW flow Type 1 - Second line shows date and time.
  • Page 16 Access Rights Log on Log on In this menu it is possible to log on to any level by entering the appropriate 4-digit code. The log on menu will also be displayed if trying to gain access to a menu or try to do an operation Enter password **** Actual level:None requiring higher authority.

  • Page 17: Warning

    1. Changing Supply/Extract air filter, indicates as “Filter guard” in the control panel (fig.3 and 4). The bag filter cannot be cleaned and must be changed as necessary. New filters can be ordered from Systemair. Pressure guards monitor Supply and Extract air filters.

  • Page 18: Troubleshooting

    Pull the fans out and check that the 2 screws holding the fans are tightened. Service Before calling your service representative, make a note of the specification and production number from the data plate. _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...

  • Page 19: Commissioning Record

    **** 2700 m³/h or 100Pa Topvex TR 15 * 5500 m³/h or 250Pa ** 5500 m³/h or 250Pa *** 3600 m³/h or 100Pa **** 3600 m³/h or 100Pa _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 20 Period 2. 00:00-00:00 Monday-Sunday. 00:00-00:00 inactivates the period. Weekday Period Normal Reduced Mon. Thu. Wed. Thurs. Fri. Sat. Sun. Holidays (month.day) Holidays (month.day) Holidays (month.day) Holidays (month.day) _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 21 * See the Corrigo E manual for this unit in the enclosed CD ROM or in the Online catalogue on www.systemair.com for a comprehensive explanation regarding “Support control”. _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 22 Run Indication Cool Pump Indication Motor Protection Motor Protection Run Indication Run Indication Outdoor Temperature Related Settings Full heat when outdoor temp is 3. °C °C below _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 23 Preset value Function Set value Miscellaneous Extended operation 60. min Min. set point reduction, Supply 5. °C °C air. At DX-Cooling: _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 24 38. Manual Exhaust Air Fan mode Class Class Delay 300 s Delay Stop ventilation unit if alarm active Stop ventilation unit if alarm active Low supply temp 10 °C _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 25 Pressure transmitter, exhaust air 0…10V DC AI 2 De-icing sensor, heat exchanger UAI 4 Frost protection sensor, Hot water heater. (HW units) Room Humidity sensor Duct Humidity sensor _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 26 Activation-signal SAF frequency converter Activation-signal EAF frequency converter DO 3 Activation heating (EL units) Activation cooling Activation heat exchanger Possible choices of Preset Digital output signal Configuration Configuration _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 27 Step controller cooling, step 3 Extra Timer channel 1 Extra Timer channel 2 Extra Timer channel 3 Extra Timer channel 4 Extra Timer channel 5 Notes _________________________________________________________________________________________________________________ Topvex TR 09, TR12 & TR15 Operation- and maintenance instructions 205000 Systemair AB...
  • Page 28 Systemair AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair AB Industrivägen 3 SE-739 30 Skinnskatteberg Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com 205000 (04-06-2009) 09-03...
