- Page 1 Topvex SoftCooler TR09-15 Installation instructions 208767-EN_GB Document in original language 15-03-2016 A004...
-
Page 2: Table Of Contents
Contents 1 Declaration of Conformity ......................1 2 Warnings........................... 2 3 Refrigerant Control/Reporting ..................... 2 4 Product information........................3 4.1 General ........................... 3 4.2 Technical data ........................4 4.2.1 Dimensions and weights Topvex SoftCooler TR09-TR15 ........... 4 4.2.2 Electrical data ......................5 4.3 Components ........................ -
Page 3: Declaration Of Conformity
1 Declaration of Conformity Manufacturer Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg SWEDEN Office: +46 222 440 00 Fax: +46 222 440 99 www.systemair.com hereby confirms that the following products: Cooling unit Topvex SoftCooler TR09 Topvex SoftCooler TR12 Topvex SoftCooler TR15 (The declaration applies only to product in the condition it was delivered in and installed in the facility in accordance with the included installation instructions. -
Page 4: Warnings
("small Piece units" with refrigerants less than 3 kg, e.g. normal refrigerators/freezers does not includes). Reporting shall in occurring cases be done to major inspection authority (normally the municipal environmental office). Different regulations can be valid in different countries. Check with your local government. Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 5: Product Information

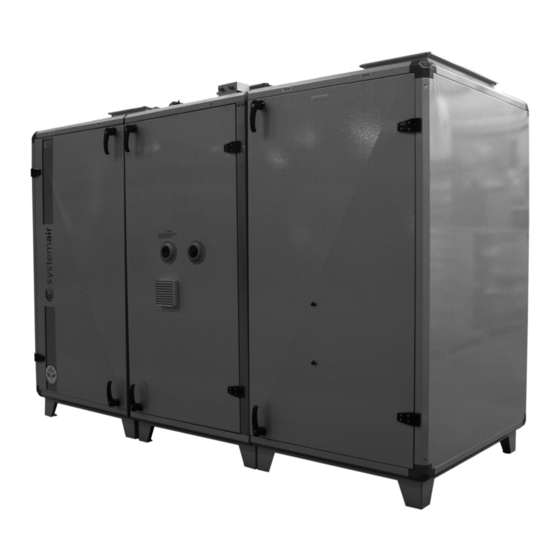

4 Product information 4.1 General This installation manual concerns Topvex SoftCooler TR09-15 manufactured by Systemair AB. Topvex SoftCooler TR09-15 include the following model options: • Model: TR09, TR12, TR15. • Right or left models: R (Right) L (Left). The side of the supply air outlet when viewed from the access side. -
Page 6: Technical Data
Model TR09 2630 1630 1120 TR12 2770 1740 1230 TR15 2820 1980 1470 1180 1000 Weight, Model Total Weight, kg TR09 1030 TR12 1140 TR15 1380 1055 Incl. air handling parts Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 7: Electrical Data
Drip-tray with drain Water seal Cable grommet for external cabling El. cabinet with frequency converter Exhaust air duct connection Exhaust air sensor, EHS Pressure/hot gas switches Measuring points refrigerant system high/low Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 8: Electrical Cabinet
4.4 Electrical cabinet Fig. 3 Electrical cabinet Position Description Terminal block, mains supply Circuit breaker (MCB) oil heaters Relays Terminal block, internal/external connections Frequency converter with display DC Choke Transformer 24 V Display Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 9: Transport And Storage
6.1 Unpacking Verify that all ordered equipment are delivered before starting the installation. Any discrepancies from the ordered equipment must be reported to the supplier of Systemair products. 6.2 Where/how to install Topvex SoftCooler are meant for indoor installation. Place the unit on a horizontal flat surface. It’s important that the unit is completely levelled before it is put into operation. -
Page 10: Installing The Unit
Fig. 4 Installation without by-pass, left hand unit Position Description Supply air Exhaust air Outdoor air Extract air VAV Pressure transmitters (accessory) Damper and motor outdoor air (accessory) Damper and motor exhaust air (accessory) Locked connection Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... - Page 11 Exhaust air Outdoor air Extract air Exhaust air, By-pass VAV Pressure transmitters (accessory) Damper and motor, outdoor air (accessory) Damper and motor, exhaust air (accessory) Damper and motor, exhaust air by-pass (accessory) Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767...
-
Page 12: Installation Procedure
• Make sure that the Mains supply to the unit is disconnected before performing any maintenance or electrical work! • All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 13: Dividing The Topvex Tr Air Handling Unit
A. Remove the plate B. Loose the cable connectors C. Remove the 7 M10 screws that join the two halves of the appliance Fig. 6 Illustration shows the left handed version of the unit Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 14: Assembly The Topvex Softcooler
Exhaust air duct connection on the Topvex SoftCooler module and to the one on the air handling unit. N.B. Motorized spring return dampers must be mounted on each exhaust air duct connection. Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... - Page 15 SoftCooler, is needed. Connect this pipe and make sure that the slope is at a minimum 1:200 to the floor drain and also that the complete drain installation are in a frost free space. Fig. 9 Pipe to floor drain Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767...
-
Page 16: Electrical Connection
6.4.2.1 External/Internal connections See also the enclosed wiring diagram. Mains supply (and in some cases By-pass damper) is the only external connection that should be connected to the Topvex SoftCooler. Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... - Page 17 R1 that is then starting the compressor. Alarm indication cooling (Run Error P1-Cooler). AO ref Reference Control signal from control unit E28 for cooling. 0-10V DC Controls the frequency converter "FC". Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767...
-
Page 18: Function Description
Position Description Extract air fan Supply air fan Temp. sensor supply air Temp. sensor outdoor air Temp. sensor extract air Temp. sensor exhaust air Controller E28 Rotor control Rotor motor Exchanger Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 19: General
(accessory) is opened and thereby the exhaust air does not pass the condenser (CO). At stopped unit all dampers are closed. Note: This instruction contains functions for the Topvex SoftCooler TR, for a complete description of functions see "Topvex SR 09,11, TR 09-15 Installation instruction" Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... -
Page 20: Commissioning Protocol
To receive correct functions the following settings must be done in the control unit E28. Log in into the control unit E28 (3333) before taking action. As an alternative can the settings be done with the PC-software tool “Corrigo E-tool Ventilation” then download the configuration file (.vtc) from the Systemair online catalogue (www.systemair.com). -
Page 21: Before First Compressor Start
Start the compressor by establishing a 100% cooling demand: • Log in to the control unit E28 (2222) • Select menu Hand/Auto • Select Cooler type/coil Set Cooler to Manual output 100.0 Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767... - Page 22 Note: Important! Restore the cooling operation to ”Auto”: • Log in to the control unit E28 (2222) • Select menu Hand/Auto • Select Cooler type/coil • Set Cooler to Auto Notes: Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767...
- Page 23 Topvex SoftCooler TR09-15 Installation instructions Systemair Sverige AB 208767...
- Page 24 Systemair Sverige AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
