DEH40466 INSTALLATION INSTRUCTIONS
Power Break® II Circuit Breakers
Replacement Stop Block Kit
Application
This kit is provided to replace the stop block assembly in the
Power Break II insulated-case circuit breakers. The parts
included in this kit are illustrated in Figure 1 and listed in Table
1. In the following instructions and figures, numbers in
brackets refer to the items in Table 1.
[1]
[3]
—

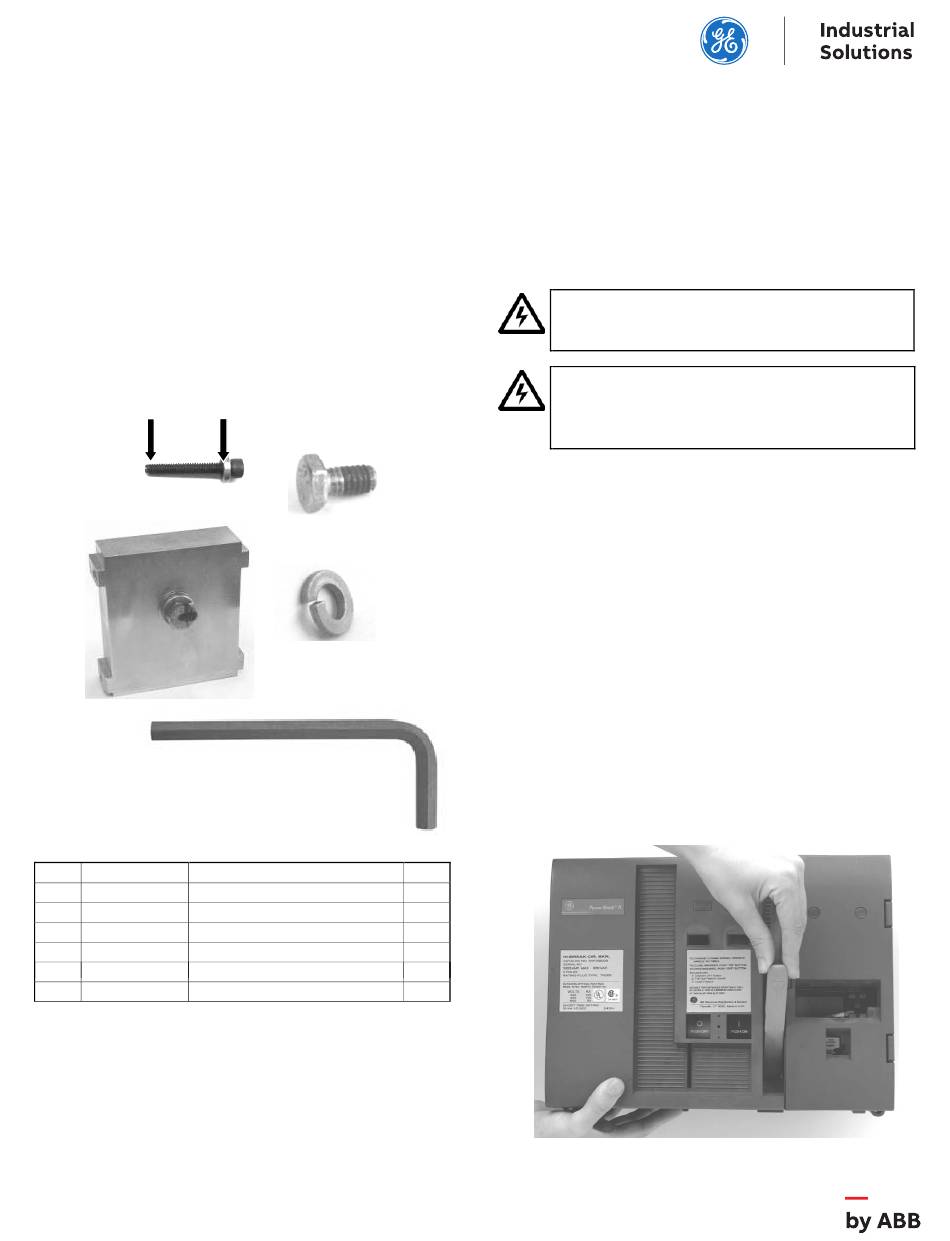

Figure 1:Parts included in the stop block gasket kit
Item Part #
1 N170P19024 SPRING ASSEMBLY SCREW
2 192A6368P1 SPACER
3 10054595G1 ASSEMBLY, STOP BLOCK
BOLT, N22P21008B6 W/NYLON PATCH
4 192A6976P233
5 N405P41B6 LOCKWASHER, STL SPRING 1/4
6 10103502P1 5/32 ALLEN WRENCH TOOL
—
Table 1. Parts list for the stop block gasket kit.
[2 ]
[4]
[5]
[6]
Description
Installation
WARNING: Before beginning this procedure, turn
the breaker OFF, disconnect it from all voltage
sources, and discharge the closing springs.
AVERTISSEMENT: Mettre le disjoncteur à OFF , le
débrancher de toutes les sources de tension et
déclencher les
d'entamer cette procédure.
1. Turn the breaker off and discharge the closing spring
by depressing the OFF and ON buttons in the
sequence OFF-ON-OFF. Verify that the breaker OFF-
ON indicator shows OFF on a green background and
that the charge indicator shows DISCHARGED on a
white background.
2. A draw-out and stationary mounted breaker need not
be removed from their enclosures, but be careful that
all primary and control power to the breakers are
disconnected.
3. Loosen the four #8-32 screws that attach the trim
plate to the breaker, if present, and remove the trim
plate.
4. Loosen the four screws at the corners of the breaker
cover. Operate the charging handle one time and hold
it extended to remove the cover from the breaker
face, as illustrated in Figure 2.
Qty.
1
1
1
4
4
1
—
Figure 2: Removing or installing the breaker top cover.
ressorts de fermeture avant
