3
—

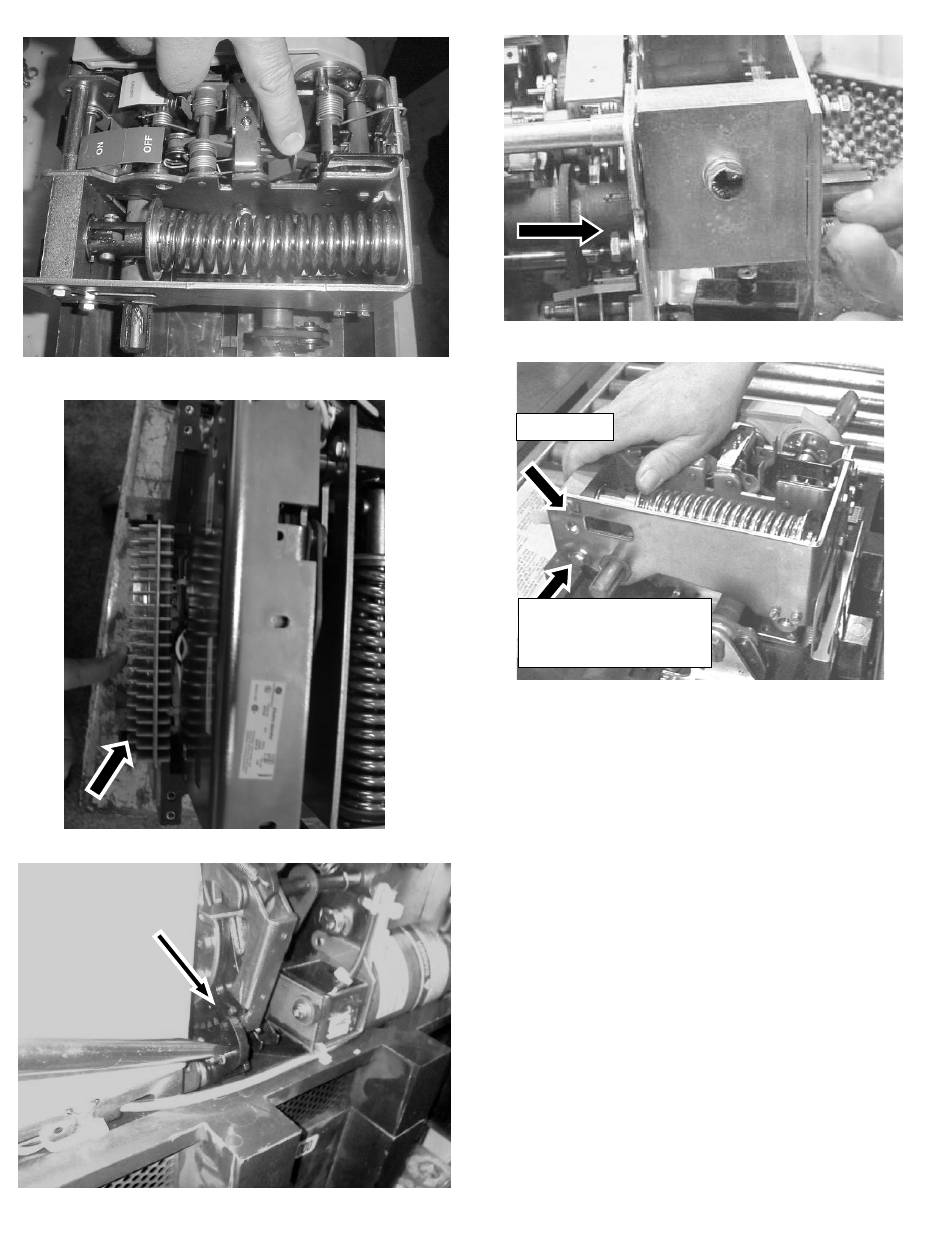

Figure 8: Releasing the breaker mechanism.
—
Figure 9: Secondary Connections Piece to be Removed Before Electric Operator
—
Figure 10: Illustration of ratchet arm being pulled away from sprocket
—
Figure 7: Illustration of Bolt on Handle Side of Assembly Wall
Front Bolt
Rear Bolt
(Not Present with Electric
Operator installed)
—
Figure 11: Pressing the spring assembly to allow removal.
sd
If the Electric Operator is installed on a stationary
9.
breaker it must be detached before the Stop Block is
replaced. First remove the gray plastic secondary
connection piece from the left side of the breaker
(Figure 9). Remove the two long Phillips screws and
external tooth lock washers from the left side of the
Electric Operator (Figure 22 & Figure 23) with a #3

Phillips screwdriver.

If working on the stationary model, support the Electric
10.
Operator with your hand so it does not fall following the
next step. Remove the two smaller hex screws and split
lock washers from the silver bottom plate that secures
the Electric Operator to the assembly walls (Figure 23).
The Electric Operator may now be set-aside without
disconnecting the electric snap connections. The Draw-
out model only requires that the electric operator be slid
to the left slightly allowing for a
the bolt on the side of the assembly wall (Figure 21 &
Figure 22).
11. Remove the front and rear bolts that secure the
stop block to the left side of the spring assembly
wall (Figure 11), and the bolt securing the stop block
7 / wrench to access
