Overlay Frame

(2175WCOL2 Units Only)

FRAME PREPARATION

IMPORTANT
The thickness of the wood overlay panel must be
3/4".
Right-hand
isometric view
shown.
Opposite
for left-hand
NOTE: Final component
is only a picture frame.
No panel inside of rails
and stiles.
NOTE: Front view of
wood panel with
right-hand hinge shown
(mirror image
for left-hand hinge)
2-1/4"
3/4"
Section A-A
Scale 2:1
Typ 4 places
03/2008
2175WC/2175WCOL2 Wine Captain
29-3/4"
A
A
Dim. A
Dim A: 14-3/4"
Dim A: 23-3/4"
2115WCOL2
2275WCOL
2175WCOL2
2175BEVOL2

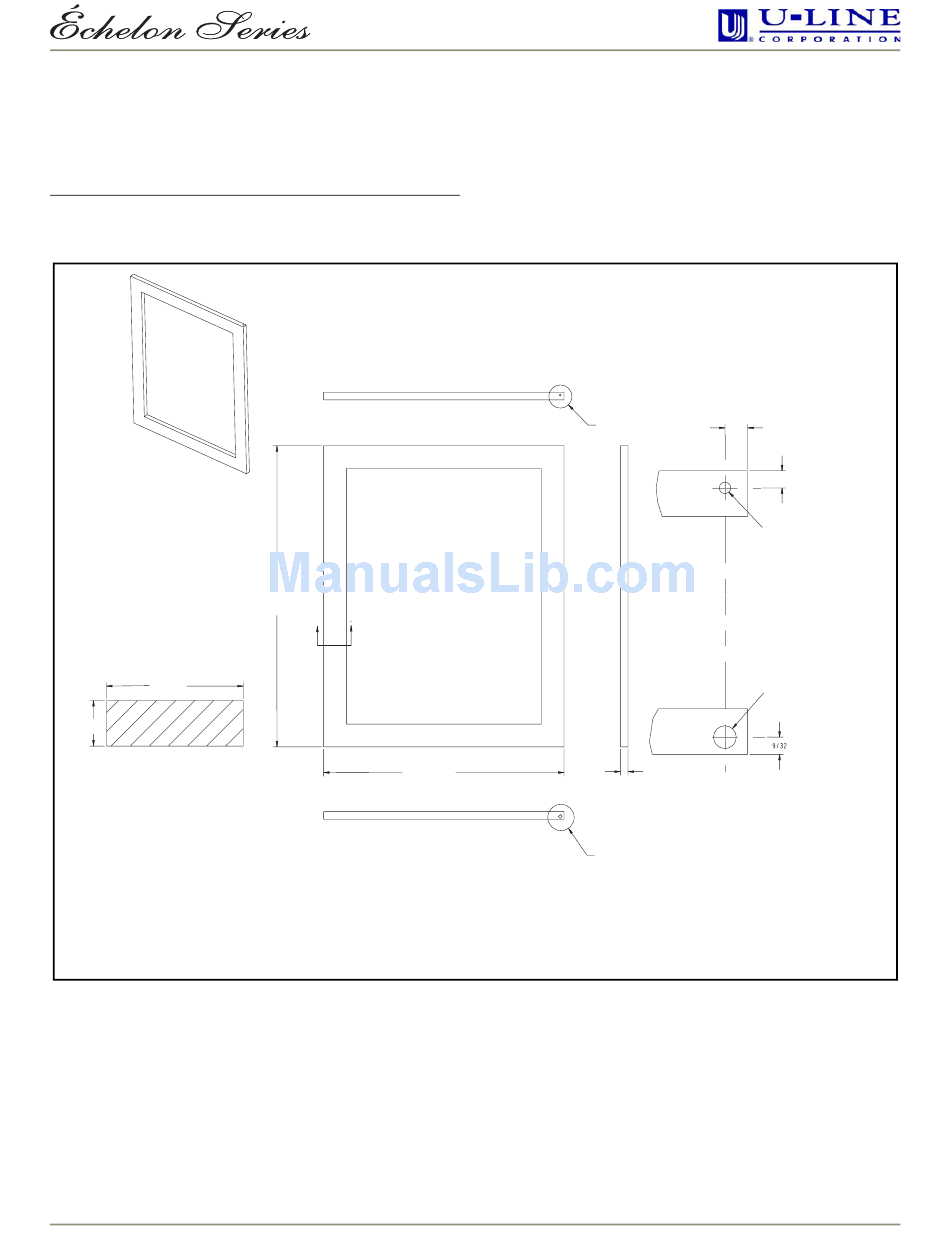

Figure 13
®
1. Use the following instructions to create or have a
wood overlay panel created for your Échelon Wine
Captain or Beverage Center model as shown in Figure
13.
2. Drill holes for pivot pins, upper door hinge and lower
door hinge as shown.
3. The overlay door panel must be installed in accordance
with the Installation Instructions starting on page 9.
See Detail A
3/4"
See Detail C
9
3/8"
9/32"
Detail A Door top
Scale 2:1 Ø 3/16" x 11/16" deep
Detail C Door bottom
Ø 3/8" x 1/4" deep
Scale 2:1
Chamfer 1/32" x 45°
9/32
