Product Dimensions; Door Swing/Clearances Information; Other Site Requirements - U-Line Echelon 2175WC Wine Captain Installation Manual

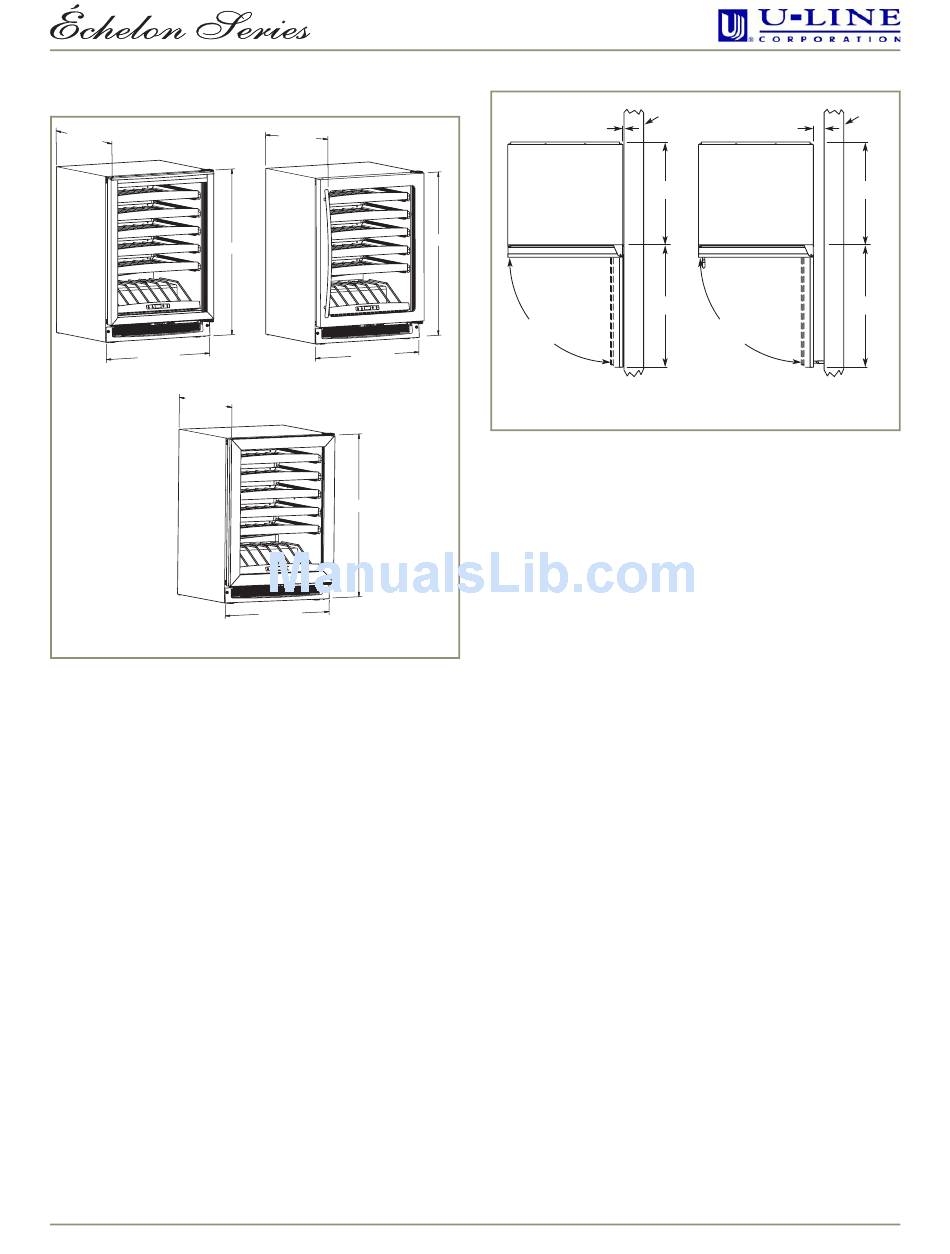

Product Dimensions

23-1/4"
Including
Handle
34-1/8"
23-15/16"
Black
23-1/4"
Including
Wood
Overlay
Figure 2
Please note that the unit has adjustable feet that can add
one additional inch to height during leveling or to match
adjacent cabinets (see Figure 26 on Page 13).

Door Swing/Clearances Information

Black and Wood Overlay units have a zero clearance for
the door to open 90° (see Figure 3). Stainless Steel
models require a minimum of 2-1/8" door clearance to
accommodate the handle if the unit is installed next to a
wall or similar type of structure.
03/2008
2175WC/2175WCOL2 Wine Captain
25-3/8"
Including
Handle
34-1/8"
23-15/16"
Stainless Steel
34-1/8"
23-15/16"
Wood Overlay
®
25-1/2"
90°
Door Swing
Black, White and Wood Overlay
Figure 3

Other Site Requirements

Power Supply
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A circuit (normal household current). See
Electrical Specifications on Page 13.
Environmental Requirements
Many U-Line models are designed to operate in harsh
outdoor/marine environments. Special considerations
include the following:
• The units are designed to operate between 50°F (10°C)
and 110°F (40°C). High ambient temperatures (110°F
[40°C] or higher) may reduce the unit's ability to reach
low temperatures.
• For best performance, keep the unit out of direct
sunlight and away from heat generating equipment.
• In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
disappear when the humidity drops.
• U-Line does not recommend installation of glass front
models (Wine Captain
Beverage Centers) as well as the Combo Drawer model
(Refrigerator/Freezer/Ice Maker) outdoors, or in tropical
climates where high humidity and dew point are present
on a regular basis, unless air-conditioning (typical 72°F,
75%RH) will be used.
5
Wall
2-1/8" Min.
21"
90°
Door Swing
Stainless Steel
®
wine storage models and
www.U-LineService.com
Wall
21"
25-1/2"
