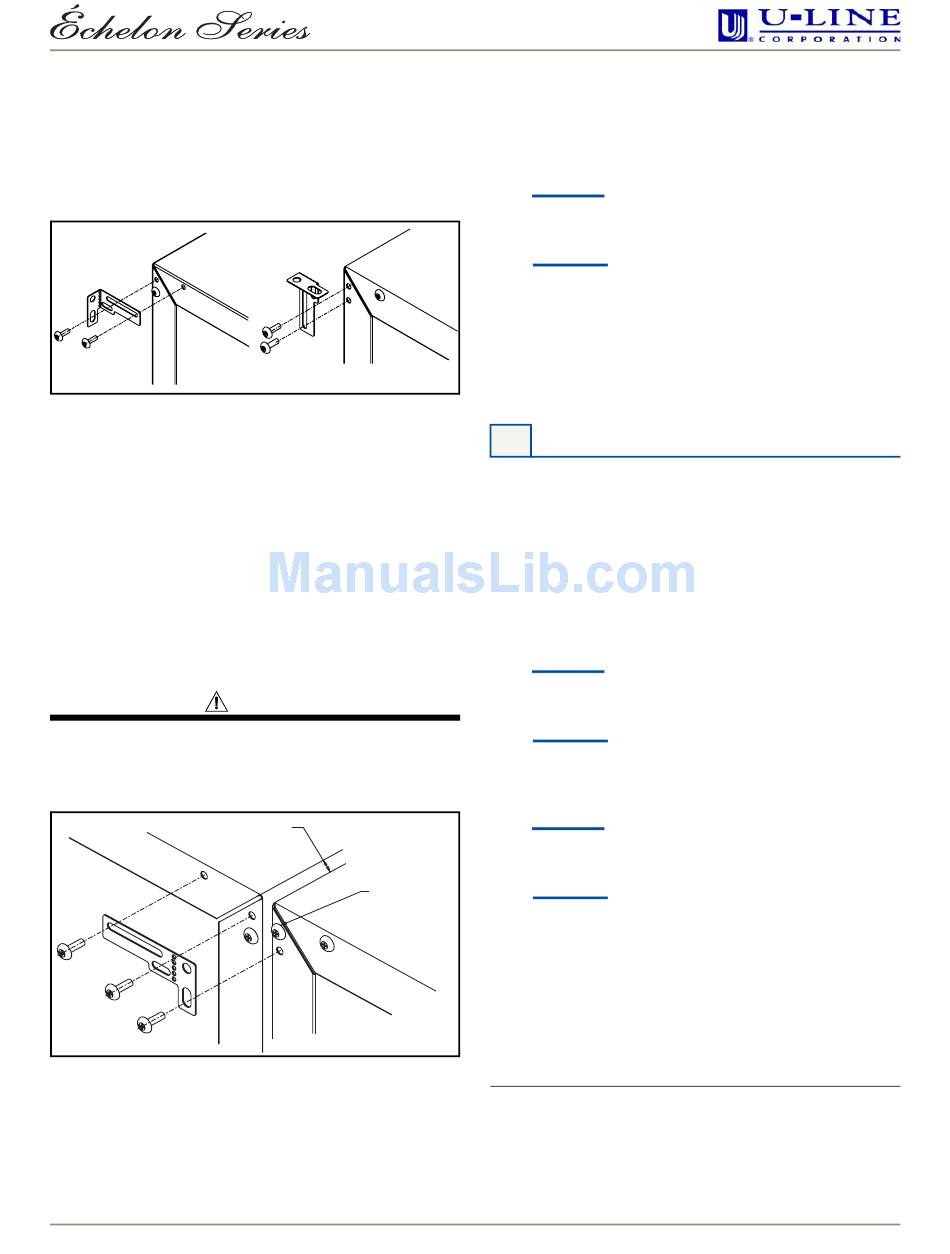

Single Unit Installation

1. Remove the two screws from the opposite side of the
hinge assembly using a Phillips screwdriver (Figure
30).
Right–handed units shown, Left–handed units are mirrored
Figure 30
2. Place bracket (part # 14154) over holes and attach to
unit with two screws removed in step 1 using a Phillips
screwdriver. Tighten screws fully.
3. Recheck the leveling, from front to back and side to
side. Make any necessary adjustments. The unit's top
surface should be approximately 1/8" below the
countertop.
4. Secure bracket into adjoining surface.

Side-by-Side Installation

1. Remove screws shown (Figure 31).
CAUTION
Be sure to remove and discard screw shown. Failure
to do so may cause damage to the bracket and/or
unit.
Figure 31
2. Place bracket as shown, and re-attach screws to unit
using a Phillips screwdriver. Tighten screws fully.
3. Recheck the leveling, from front to back and side to
side. Make any necessary adjustments. The unit's top
03/2008
2175WC/2175WCOL2 Wine Captain
1/4"
Remove and
discard screw
®
surface should be approximately 1/8" below the
countertop.

Installation Troubleshooting

Q:
Problem
The door remains open unless it is pushed closed.
A:
Solution
The hinges should be self-closing when the door is open
approximately 8". If this is not the case, make sure the
closers (at the bottom of the hinge pin) are clean, greased
and installed correctly. Also, re-check leveling from front
to back of the unit and readjust if necessary. Make sure
that pivot plate is installed correctly.
9 Start-Up for the First Time

Initial Start-Up

The unit is shipped with the control preset. No adjustments
should be necessary at this time. For information about
Adjusting the Temperature Control, see the Use and Care
Guide.

Start-Up Troubleshooting

Q:
Problem
Unit does not appear to turn on when plugged in.
A:
Solution
Make sure outlet has power (circuit breaker has not
tripped). Check to see that control is turned on.
Q:
Problem
Light is on with door closed.
A:
Solution
Touch the LIGHT icon on the display panel. This will cancel
out the light function and just allow the light to turn on
and off with the door opening and closing.
®
The Wine Captain
has an interior light that is illuminated
when the door is opened. The light can be left on while
the door is closed by pressing the LIGHT icon. This will
turn interior light on for 4 hours, then it will turn off.
See the Use and Care Guide's Troubleshooting Guide for
more solutions.
15
IMPORTANT
www.U-LineService.com
