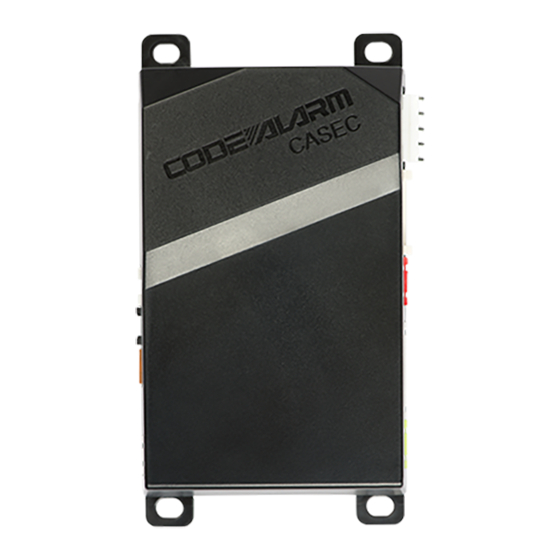

PROFESSIONAL
SERIES
Installation and Reference Guide
caSEC
2 Way Security and Keyless Entry
2017 Voxx Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the caSEC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Code Alarm caSEC

Summary of Contents for Code Alarm caSEC

  • Page 1 PROFESSIONAL SERIES Installation and Reference Guide caSEC 2 Way Security and Keyless Entry 2017 Voxx Electronics Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Testing the Shock Sensor ................ 21 Chirp Delete - User Accessible ..............21 User Selectable LED ................21 Dome Light Delay / Theater Dimming ............. 22 Feature Descriptions ................. 23 Transmitter Button Functions ..............29 Security Trigger Zones................31 System Layout ................... 32 caSEC revB...

  • Page 3: Before You Begin

    Before You Begin Thank you for trusting Code Alarm products! If you are a consumer, please note: Professional installation is strongly recommended. This manual assumes the installer has adequate knowledge of the following expertise, and as such, it does not cover these topics in detail:...

  • Page 4: Wire Connection Guide

    Wire Connection Guide System Layout This diagram shows the available harnesses and connections for the caSEC. Note that you may not use all connections and modules in your installation. Notification Harness (4-Pin) WHITE/RED PARKING LIGHT INPUT Replacement Part WHITE PARKING LIGHT OUTPUT...

  • Page 5: Pin Main Harness

    5 Pin Main Harness WHITE/RED PARKING LIGHT INPUT WHITE PARKING LIGHT OUTPUT BLACK GROUND BROWN SIREN OUTPUT ( + ) BATTERY 12V ( + ) 9 Pin Input / Output Harness BLUE/WHITE INSTANT TRIGGER INPUT ( - ) GREEN DOOR TRIGGER INPUT ( - ) ORANGE GROUND WHEN ARMED OUTPUT ( - ) PURPLE...
  • Page 6 Connect the BLACK siren wire to a chassis ground using a ring terminal and self tapping screw (not supplied). Route the BROWN siren output wire from the control module through the firewall and connect to the RED wire on the siren. NOTE: Be sure to loom the siren wires, and seal the grommet. caSEC revB...
  • Page 7 BATTERY 12V ( + ) Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch. Verification: This wire will register ( + ) voltage in all positions of the ignition switch. Connect the RED wire to the constant 12 Volt battery wire. NOTE: Remove all fuses until all connections are made.
  • Page 8 HORN OUTPUT ( - ) Locate the vehicle’s horn wire. Verification: This wire will register at positive voltage and register ground when the horn switch is pressed. Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current output, 200mA. caSEC revB...
  • Page 9 VIOLET/BLACK AUX 1 This wire provides a ( - ) 200mA output capable of driving relays. For Control of optional accessories (i.e. Power Window/Sunroof, etc.). To activate refer to the transmitter button configuration chart. Please refer to the selectable options for timing. LT GREEN/BLACK FACTORY DISARM OUTPUT ( - ) This wire will supply a ( - ) 200mA pulse upon disarming the system. Locate the factory perimeter alarm disarm wire from the key cylinder inside the drivers door.
  • Page 10 (i.e. Power Window/Sunroof, etc.). To activate refer to the transmitter button configuration chart. Please refer to the selectable options for timing. WHITE/BLACK AUX 2 This wire provides a ( - ) 200mA output capable of driving relays. For Control of optional accessories (i.e. Power Window/Sunroof, etc.). To activate refer to the transmitter button configuration chart. Please refer to the selectable options for timing. caSEC revB...
  • Page 11 3 Pin Lock Output Harness BLUE UNLOCK ( - ) GREEN LOCK ( - ) The door lock / unlock outputs are designed to control several different types of systems which may require additional parts. Please review the wire and location chart to see which type of door lock system is in your vehicle.
  • Page 12 (2) SPDT relays (not supplied). Reverse Polarity Locks: Fused +12 Volt Battery Souce GREEN ( - ) Lock Output Lock To Door Lock Motor Unlock Fused +12 Volt Battery Souce BLUE ( - ) Unlock Output To Door Lock Motor caSEC revB...
  • Page 13 Negative Multiplexed Locks All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch. Verification: This wire will show variable ground when the switch is activated. Please consult the wire and location chart for specific resistor values for your vehicle. Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram below using (2) SPDT relays (not supplied).
  • Page 14 (2) SPDT relays (not supplied). Fused +12 Volt Battery Source Door Lock GREEN ( - ) Lock Output Actuator Chassis Ground Fused +12 Volt Battery Source BLUE ( - ) Unlock Output Chassis Ground caSEC revB...

  • Page 15: Additional Ports

    Additional Ports Antenna / LED / Programming Port Mount the supplied antenna/receiver to a clear spot on the vehicle’s windshield that will not block the driver’s vision. A good location is usually high on the windshield near the rear view mirror. Be careful not to mount the antenna/receiver on any metallic window film, as this will effect system range. Route the antenna/receiver cable to the control module and plug into the antenna port.

  • Page 16: Set Up & Programming

    Enter the transmitter into 2 Car Mode. (Refer to transmitter operation in the owners manual for 2 car operation) Follow the steps above for transmitter programming. NOTE: 2 car mode requires an additional security system installed in a second vehicle. caSEC revB...

  • Page 17: Manual Feature Programming

    Manual Feature Programming - Feature Bank 2 & 3 Turn the ignition ON. Press and hold the valet/override button. Within 10 seconds the system will chirp (3) three times. Use the valet/override button to advance through each option bank. For feature programming advance to Feature Bank 2 or 3, which is (4) four and (5) five chirps.
  • Page 18 1 - Disarm 2 - Disarm 11 LED Indicator 12 Auto Re-lock Lock Only Arm & Lock After Lock & 13 Extended Parking Lights After Unlock After Lock Unlock Parking Light Relay / Trunk ( - ) Standard Inverted Output caSEC revB...
  • Page 19 Feature Bank 3 - 5 Chirps 1 LED Flash 2 LED Flash 3 LED Flash 4 LED Flash 5 LED Flash 6 LED Flash Output Control 1 Sec. Lock, 30 Sec. Lock, 2x Lock, 1 Sec. 1 Lock / Unlock Timing 3.5 Sec.
  • Page 20 Code Alarm Utility App Feature Programming / Firmware Updates (optional) The new Code Alarm Utility App is able to set feature options, save frequently used feature configurations as well as update module firmware. PC System Requirements: Windows XP SP3 or above Min 1GB RAM Net Framework 4.0 or above Screen Resolution - Suggested 1280x1024 or above Required Accessory &...

  • Page 21: Programming Feature Banks

    Adjusting the Shock Sensor Increase sensitivity by turning the adjustment dial clockwise. Decrease sensitivity by turning the adjustment dial counter clockwise. Testing the Shock Sensor Arm the system and wait 6 seconds for the zone to stabilize, then firmly strike the vehicles bumper. Chirp Delete - User Accessible System ARM/DISARM chirps can be toggled ON or OFF without entering the programming feature banks.

  • Page 22: Dome Light Delay / Theater Dimming

    Defaulting the Dome Light Delay: Turn the ignition ON then OFF 3 times then press and hold the valet button for 5 seconds, the system will chirp 1 time indicating the learned delay time has been cleared. caSEC revB...

  • Page 23: Feature Descriptions

    Feature Descriptions Feature Bank 2 - Security 1 - Silent Choice: Controls the normal arm/disarm chirps of the security system. ON - Silent arming/disarming upon first press of lock/unlock, pressing lock/ unlock a second time will activate the arm/disarm chirps respectively. The system will only sound the arm/disarm chirps upon a second press of the lock/unlock buttons.
  • Page 24 11 - LED Indicator: Control of the status LED when the system is armed / locked. ON - LED will flash when system is armed / locked OFF - LED will not flash when system is armed / locked. Only applies to normal operation (armed/locked) and does not affect programming, valet mode, diagnostics, passive lock countdown or PTN. caSEC revB...
  • Page 25 12 - Auto Re-Lock: When Auto Re-lock is selected, the system will re-lock the vehicle after 3 minutes if the system was disarmed and a door was NOT opened within that set amount of time. A door opening within this time cancels Auto Re-Lock. Note: This feature is separate from Passive/Active Arming OFF - Standard operation.
  • Page 26 Lock / Unlock - Doors lock when ignition is turned on and unlock when ignition is turned off. Lock Only - Doors lock when ignition is turned on. Unlock Only - Doors unlock when ignition is turned off. caSEC revB...
  • Page 27 4 - Trunk Output Timing: Controls the output timing/type of the RED/WHITE Trunk output. 1 Sec. - 1 second pulse output. 10 Sec. - Continuous output for 10 seconds. 20 Sec. - Continuous output for 20 seconds. Latched until IGN ON - Continuous output until the vehicle’s ignition is turned Latched ON until Button Press - Continuous output until the activation button is pressed again.
  • Page 28 Latched until IGN ON - Output stays active until the ignition is turned on. 10 Sec. w/ Arm - Output stays active for 10 seconds with press of lock button. 10 Sec. w/ Disarm - Output stays active for 10 seconds with press of unlock button. L.E.D. Output - Output will mimic the flash patterns of the systems status LED. caSEC revB...

  • Page 29: Transmitter Button Functions

    Transmitter Button Functions 4-Button Car Find / Lock Unlock Trunk Operation Method Transmitter Panic Lock Press and Release Unlock Press and Release 2 Step Unlock Press and Release 2 times Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) AUX 1...
  • Page 30 Press and Hold F for 2 seconds Enter AUX Mode LCD displays AU AUX 2 Push and Hold (3 Sec) AUX 3 Push and Hold (3 Sec) AUX 4 Push and Hold (3 Sec) AUX 5 Push and Hold (3 Sec) caSEC revB...

  • Page 31: Security Trigger Zones

    Security Trigger Zones If the security system has been triggered the LED will flash one of the patterns below indicating the zone. LED FLASHES TRIGGER ZONE 2 Flashes Hood / Trunk Input 3 Flashes Door Input 4 Flashes Shock Sensor 5 Flashes Ignition Input 2017 Voxx Electronics Corporation. All rights reserved.

  • Page 32: System Layout

    85 - IGNITION ( + ) BLUE FULL TRIGGER ( - ) BLACK 87A - STARTER OUTPUT - MOTOR SIDE GREEN WARN AWAY TRIGGER ( - ) WHITE / BLACK 30 - STARTER INPUT - KEY SIDE OPEN 87 - OPEN caSEC revB...
  • Page 33 Voxx Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
