FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of Industry
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that
Warning!
Changes or modifications not expressly approved by the party responsible for

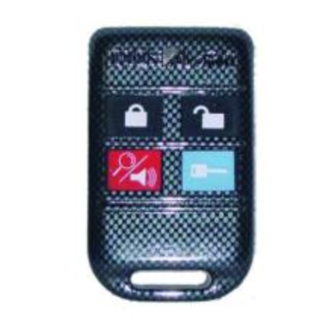

CA-130 install rev 7-04.pmd
Installation
Instructions
PROFESSIONAL INSTALLATION
STRONGLY RECOMMENDED

Installation Precautions:

Roll down window to avoid locking
keys in vehicle during installation
Avoid mounting components or
routing wires near hot surfaces
Avoid mounting components or
routing wires near moving parts
Tape or loom wires under hood
for protection and appearance
Use grommets when routing wires
through metal surfaces
Use a voltmeter for testing and
verifying circuits
Technical Support
For Authorized Dealers - (800) 421-3209
Canada. Operation is subject to the following two conditions:
may cause undesired operation.
compliance could void the user's authority to operate the equipment.
1
1
7/28/2004, 3:32 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-130 and is the answer not in the manual?

Questions and answers

Related Manuals for Code Alarm CA-130

Summary of Contents for Code Alarm CA-130

  • Page 1 2. This device must accept any interference received, including any interference that may cause undesired operation. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 2 GRN/VT 21. Horn Relay Drive (-) 500ma ( BRN/BLK 22. LED 2 (Red) ( PLUG IN 23. LED 1 (Black) ( PLUG IN 24. Second Door Unl o ck (-) 500ma ( BLU/GRN CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 3 Connect the 2/B wire to the vehicle lock wire. Use a SPDT relay (not supplied) To vehicle unlock wire and connect the 24/B wire to the vehicle unlock wire as shown in Diagram 1. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 4 Diagram 4 (below). Connect wires 14/B, 3/A as shown in Diagram 2 (above). Diagram 4 Fused +12v 24/B From Door Unlock To Door Unlock Switch or Relay Motor CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 5 Note: Two-stage unlock will not work with this type of system. Diagram 6 2 / B Lock Motor 3 / A Unlock Switch 14 / B Unlock Motor Master Vehicle To Control Pump LOCK Door Lock Switch Cut Here UNLOCK or Plunger CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 6 Diagram 9 +12v fused To vehicle door lock module Ground for positive polarity system 14/B +12v fused for negative polarity system From Switch To Driver’s Door Unlock Side of Driver’s Door Unlock Motor CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 7 Verification: This wire registers voltage when the key is turned to the ON (or RUN) position. The voltage does not drop out when the key is turned to the START (or CRANK) position. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 8 19/B Hood Safety Input (20 AWG -) (GRAY) Install the supplied pin switch and attach the 19/B wire. Verification: When connected, the 19/B wire will register ground when the vehicle hood is opened. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 9 Drill a " hole and snap the Status Indicator into place. Connect the Status Indicator Red Wire to the 22/B LED2 wire. Connect the Status Indicator Black Wire to the 23/B LED1 wire. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 10 Note: See 13/B description (Basic Harness). 10/A Aux 1 500mA (20 AWG -) (RED/WHITE) This wire provides a 500mA negative output capable of driving relays. For control of optional accessories (i.e.: power window/ sunroof, etc. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 11 This wire will show a ground when the security system is armed. 15/A External Sensor Input (20 AWG -) (BLACK) This wire is a ground input for an external sensor. Connect this wire to the negative output of the external sensor. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 12 Programming Selectable Options (next page). Otherwise, turn the vehicle ignition off to exit the programming mode. Test all remote transmitters to ensure that they work properly by toggling the LOCK and UNLOCK buttons. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 13 6. To reset all options back to factory defaults, press the UNLOCK button. Note: Option Bank 5 will never reset. 7. Turn ignition off to exit programming. See Options Chart on pages 15-16. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 14 Decreasing sensitivity one more step from the lowest end of the scale will shut that zone off. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...

  • Page 15: System Programming

    Option Bank Five - 8 Chirps (Installer Options) STATUS INDICATOR 1.Door Trigger Polarity (1) Positive (2) Negative ON(1) OFF(2) 2.Retained Accessory Power (1) RAP (2) Factory Arm ON (1) OFF(2) 3. E-Code Entry Coded Override-Refer to Pg 17 for Instructions CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 16 4. System Programming Auxilary Adjustment Table 1.1 r i h r i h & Fuse Size & Location Trunk Dome Parking Door Output Light Lights Locks Heater 1 Heater 2 Ignition 1/2 Main Power CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 17 4. Repeat this procedure until all 4 digits are entered, system will disarm upon turning ignition off after 4th digit. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 18 4. Program as many transmitters (up to 8) as desired . The last 2 transmitters that are learned will activate the auxilliaries when unlocked. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 19 Note: If entrance is secured after 4 minutes, the system will immediately begin to monitor the entrance for intrusion. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 20 Siren/horn sounds and lights flash for 30 seconds or until any remote control button is pressed. Press and hold ARM Headlights (or other device) turn on for 20 seconds or until LOCK is pressed again. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...

  • Page 21: Valet Mode

    VALET MODE Press LOCK and UNLOCK simultaneously with vehicle ignition On System enters Valet mode, LED double-blinks.. Press LOCK and UNLOCK simultaneously with vehicle ignition On System exits Valet mode, LED turns off. CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 22 • Antenna should be mounted as shown below. 5. Plug antenna into the Antenna Plug located in the back of module as shown below. Headliner Antenna Cable Antenna Rear-View Mirror Antenna Plug View of Back of Module CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 23 CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
  • Page 24 CA-130 install rev 7-04.pmd 7/28/2004, 3:32 PM...
