Adding Aftermarket Actuators

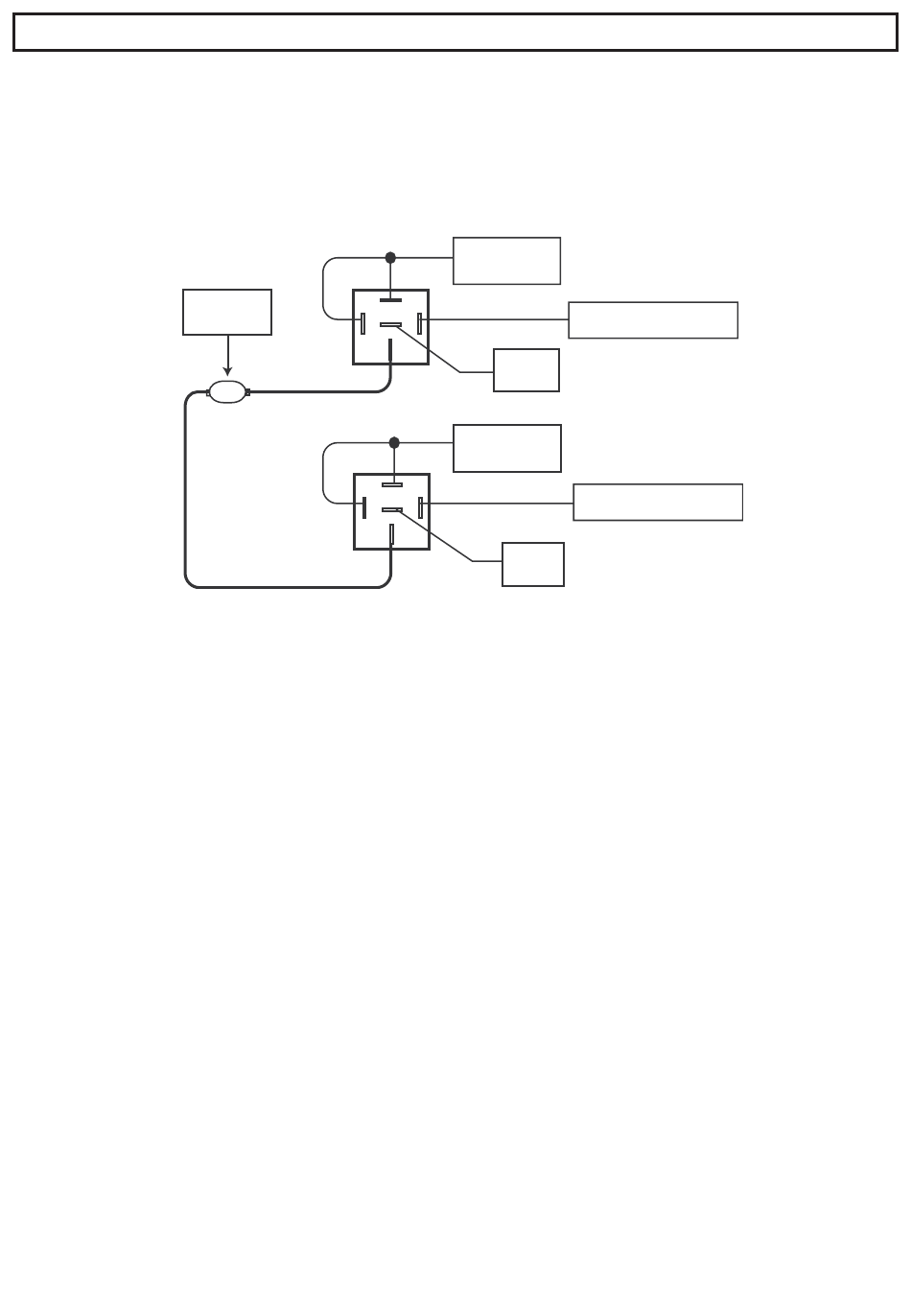

After installing aftermarket actuators, (not supplied). Connect the GREEN and BLUE
wires shown in the diagram below using (2) SPDT relays (not supplied).
14
Door Lock
Actuator
86
30
M
86
30
Fused +12 Volt
Battery Source
87
87a
85
Chassis
Ground
Fused +12 Volt
Battery Source
87
87a
85
Chassis
Ground
GREEN ( - ) Lock Output
BLUE ( - ) Unlock Output
caSEC revB
