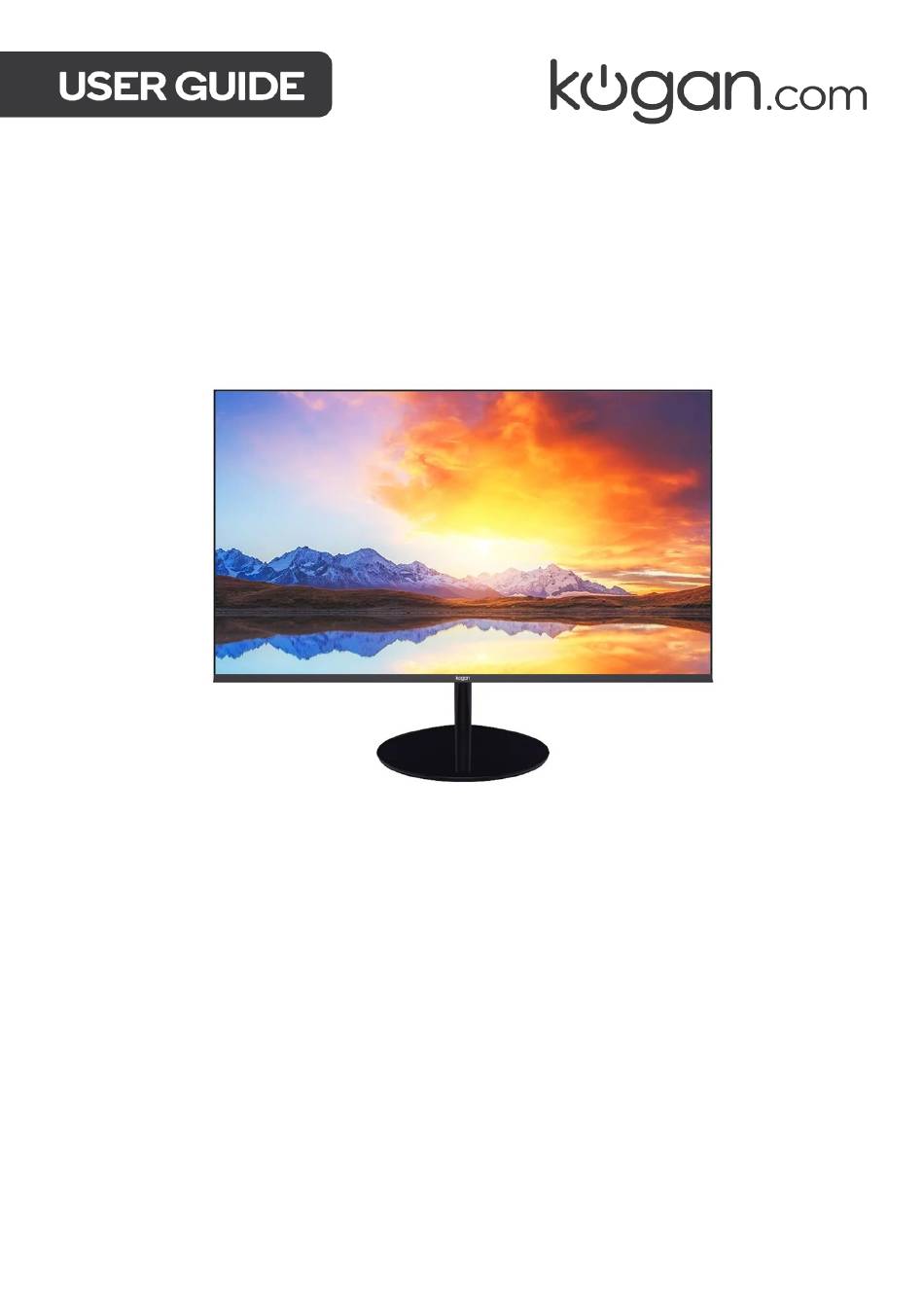

- Page 1 24" FULL HD FREESYNC 75HZ FRAMELESS MONITOR (1920 x 1080) KAMN24FLSB...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions before using the appliance and retain for reference. • Unplug the monitor before cleaning it. • Use a clean, slightly dampened cloth to wipe the main monitor body. • To clean the screen: turn it OFF, unplug it and wait for it to cool completely, then wipe it with a dry micro-fibre cloth. - Page 4 COMPONENTS Monitor Stand connector Stand base Screws (x2) VESA screws (x4) HDMI cable Power cable User guide...
- Page 5 OVERVIEW Monitor Controls Menu button Press to display the OSD menu or enter sub-menus. Press to move down in the menu. Down button Up button Press to move up in the menu. Exit button Press to exit. Power button Press to turn the monitor on/off. Monitor Ports Power connector Audio In...
-
Page 6: Stand Assembly
STAND ASSEMBLY Attention: Panel is fragile. Keep the foam underneath the monitor while assembling the stand. Carefully remove the monitor from the packaging with foam attached and place it face down on a soft cloth spread across a stable surface such as a table. Remove and assemble the stand base and connector. - Page 7 Remove the connection block from the back of the monitor by pressing the detach button. Connection Block Insert the Connection Block into the back of the monitor, then push down until it snaps into place. Close Open Remove the bottom foam and place the monitor on the desk or other location intended for use: installation is complete.
-
Page 8: Vesa Mount
VESA MOUNT Carefully remove the monitor from the packaging with foam attached and place it face down on a soft cloth spread across a stable surface such as a table. Remove the connection block from the back of the monitor by pressing the detach button. - Page 9 CONNECTIVITY Power Cable Connect the included power cable to the monitor power port and then connect the other end to a power outlet. Power cable Audio In Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm audio port on your computer.
- Page 10 HDMI Connect an HDMI cable from the computer’s display output to the monitor’s display input. HDMI cable (Included) HDMI Output Connect a VGA cable from the computer’s display output to the monitor’s display input. VGA cable (Not Included) VGA Output...
-
Page 11: Basic Operation
BASIC OPERATION Connect the monitor to your input device via HDMI or VGA. Connect the power cable to your monitor and then connect the other end directly to a power socket. Use the power button to turn the monitor on. FreeSync •... -
Page 12: Operation
OPERATION The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the “ ” button. When using the monitor for the first time, the monitor will configure optimal settings automatically. - Page 13 List of Functions Main Menu Sub-Menu Options Description Brightness ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast Black equalizer ~0-100 Adjust display Black equalizer Low blue Enable/disable blue light reduction Brightness STANDARD/ PHOTO/GAME/ Preset colour modes MOVIE/ FPS/RTS Enable/disable dynamic contrast ratio Horizontal Adjust video display area left to right ~0-100...
- Page 14 Image None Restore VGA image defaults Automatically configure VGA colour Colour None settings Reset None Restore factory defaults Reset Power down Enable/disable Power down function Time count 10-90min Adjust Time count Signal source VGA/HDMI Adjust input source Enable or disable monitor speaker Misc Mute output...
- Page 15 ECO MODES & GAMEPLUS SWITCHING Press “Exit” button to activate the navigation window. Press “Menu” button to switch GamePlus modes. These overlay icons are primarily designed to assist aim during FPS games, though they can be used for other scenarios.
-
Page 16: Specifications
SPECIFICATIONS Screen size 24" Aspect ratio 16:9 Brightness 250cd/m²(Typ.) Panel Resolution 1920x1080 Refresh rate 75Hz Response time 14ms Viewing angle ≥178°(H) / 178°(V) Contrast ratio 1000:1 VESA mounting 75x75mm Colours 16.7M Signal input HDMI1. 4 x 1, VGA x 1 Power AC 100-240V ~50/60Hz 1.1A Audio... - Page 17 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
