24 CURVED FULL HD 180Hz
FREESYNC GAMING
MONITOR
KAMN24F18CSA

Advertisement

loading
Need help?

Need help?

Do you have a question about the KAMN24F18CSA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kogan KAMN24F18CSA

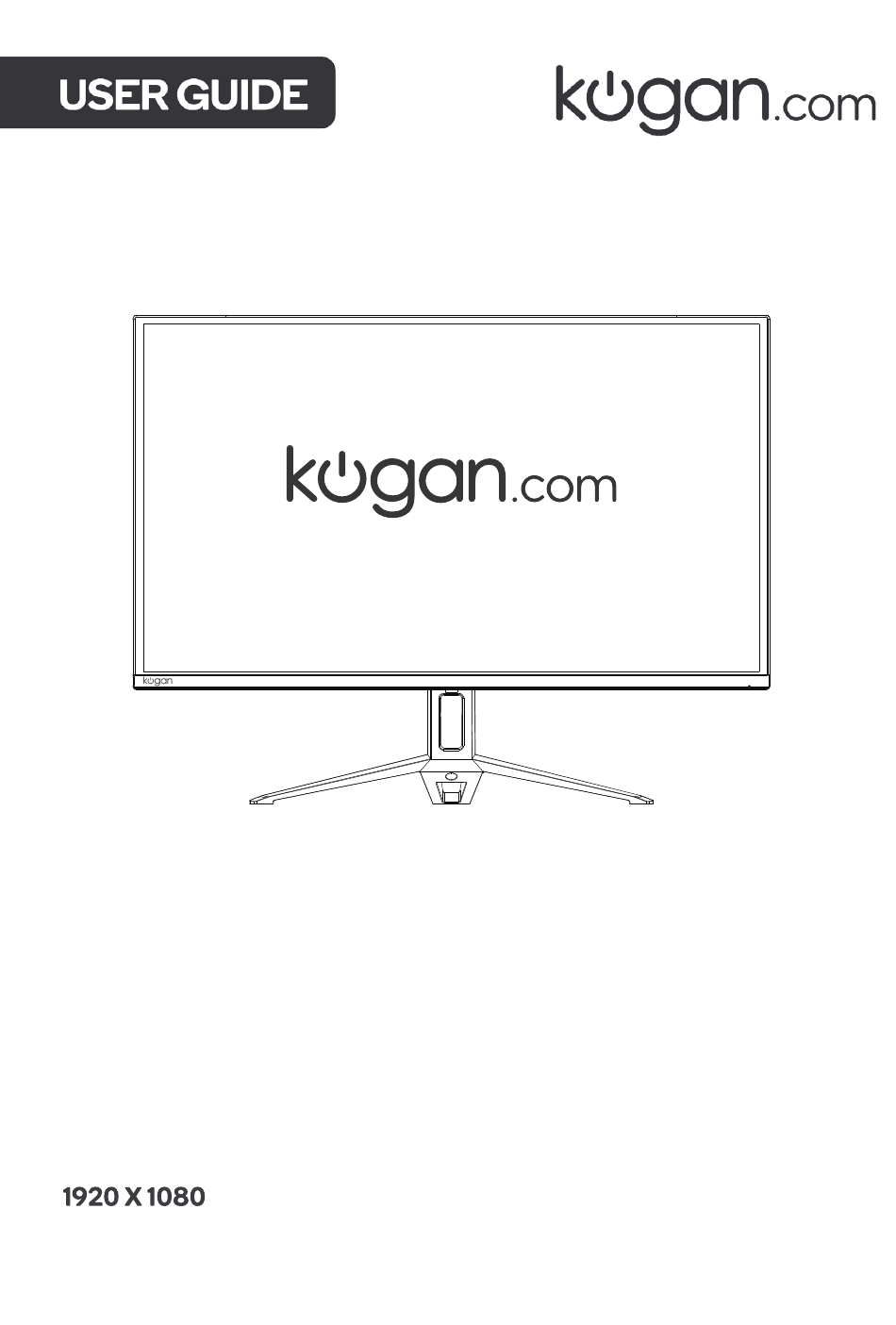

  • Page 1 24 CURVED FULL HD 180Hz FREESYNC GAMING MONITOR KAMN24F18CSA...
  • Page 3 The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 4 DP cable...
  • Page 6: Audio Out

    Power port (DC 12V) HDMI2 connector HDMI1 connector DP connector AUDIO OUT...
  • Page 10 Connect the included Power Adapter to the monitor power port, then connect the other end to a power outlet. Power Adapter Earphones (Audio Out) Earphones, headphones or other audio devices can be connected to the 3.5mm output on the monitor. The monitor may need to be set as the PC’s default sound output device. Earphones (Not Included)
  • Page 11 HDMI In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer. HDMI Cable (Not Included) HDMI OUTPUT DisplayPort In order for the monitor to receive DisplayPort signals from the computer, use the DisplayPort cable to connect the monitor to the computer.
  • Page 12 Connect the monitor to the input device via HDMI/ DisplayPort . Connect the power cable to the monitor, then connect the other end directly to a power socket. Use the power button to turn the monitor on. FreeSync...
  • Page 13 The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen a er turning on the monitor and pressing the “OK key” button. When using the monitor for the first time, it will configure optimal settings automatically. Press "...
  • Page 14 Refer to the following pages for a detailed list of the OSD menu functions. Menu Sub-Menu Options Description Brightness ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast Turns dynamic contrast ratio On/ O on/o STANDARD/TEXT/GAME/ Preset colour modes MOVIE/FPS/RTS Standard Warm Select colour temperature mode or...
  • Page 15 Full Screen Display Size Auto Select the display's aspect ratio Low blue Weak Blue light reduction adjustment Strong Enable or disable overdrive Over Drive On/ O for faster response time FreeSync On/ O Enable or disable AMD FreeSync On/ O /Auto Enable or disable HDR ECO MODES 1.
  • Page 16 180Hz 12ms HDMI 1.4 x 2, DP 1.2 x 1 3.0A Power Adapter DP Cable...
