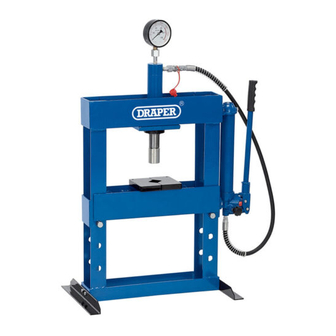

- Page 1 10 TONNE HYDRAULIC BENCH PRESS STOCK No.58157. PART No.HBP/10. • INSTRUCTIONS • IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL. 01/2000...
-
Page 2: Specification
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the 12 month period. - Page 3 Please read the following instructions carefully, failure to do so could lead to serious personal injury. IMPORTANT Draper Tools Limited recommends that this hydraulic press should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.
- Page 4 ADDITIONAL SAFETY RULES FOR HYDRAULIC BENCH PRESS 1. Never exceed the maximum load capacity of the ram. 2. Do not over extend the ram, as it is possible to force the plunger out of the top of the ram. 3. When coupler valves are disconnected always insert dust cap to keep the oil lines clean. 4.
- Page 5 ASSEMBLY 1. Attach both base supports ✖✌ to the main frame ✕✌ using bolts ✗✌, washers ✘✌, spring washers ✙✌ and nuts ✚✌. 2. Stand the frame in the upright position. 3. Support plate ✜✌ and ram plate ✛✌ are held in position on the frame ✕✌ by using bolts ✢✌, washers ✘✌, spring washers ✙✌...
- Page 6 OPERATING INSTRUCTIONS PUMP UNIT Fig. 1 ✬✌ 1. Connect the hydraulic ram and pump unit hose together, ensure you have securely fastened the couplings before pumping. 2. Firmly close the release valve ✪✌ by turning it in ✪✌ a clockwise direction. Fig. 1. 3.
-
Page 7: Care And Maintenance
CARE AND MAINTENANCE 1. When the body repair kit is not in use, the pump unit should be stored with the release valve open. 2. To check oil level, place the pump unit in an upright position. As indicated on the diagram opposite. -
Page 8: Troubleshooting
TROUBLE SHOOTING TROUBLE PROBABLE CAUSE REMEDY Pump unit will not work. Dirt on valve seats/worn seals. Replace with new seals. Pump unit will not produce Air block (1) Open the release valve pressure and remove oil filler plug. (2) Pump handle a couple of full strokes and close the release Pump unit feels unsteady Air block... - Page 9 10 TONNE HYDRAULIC BENCH PRESS STOCK No.58157 PART No.HBP/10 SPARE PARTS DRAWING 01/2000 POWER DIVISION HELPLINE: (023) 8049 4333 DRAPER TOOLS LIMITED, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HAMPSHIRE. SO53 1YF. ENGLAND. - 9 -...
-
Page 10: Spare Parts Listing
YHBP/10-10 60619 Support pins YHBP/10-11 60620 Table support YHBP/10-12 60621 Table YHBP/10-13 60622 YHBP/10-14 60623 Pump YHBP/10-15 60624 Adaptor YHBP/10-16 60625 Adaptor YHBP/10-17 60626 Hose DRAPER TOOLS LIMITED, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HAMPSHIRE. SO53 1YF. ENGLAND. - 10 -... - Page 11 NOTES - 11 -...
- Page 12 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
