speaker installation
final connection of the system
With receiver/amplifier located, speaker and sensor cables neatly routed, we are ready to complete the
installation.
1. Cut the speaker wire to the appropriate length
Strip about 3 /8" off the end of each speaker wire.
2.
3. Twist the wire and if you have a soldering iron, tin the wire ends
4. Unplug the phoenix connector from amplifier. Reference amplifier insert diagram on amplifier
(Figure H) (+) wire (with printed writing) into either outside (+) terminal.
5. Plug the other (-) wire into center (-).
5. Tighten set screws.
6. Repeat for other pair and insert plug firmly into speaker output receptacle.
7. Plug amplifier power supply into AC outlet.
8. Connect audio sources and set output to desired levels.

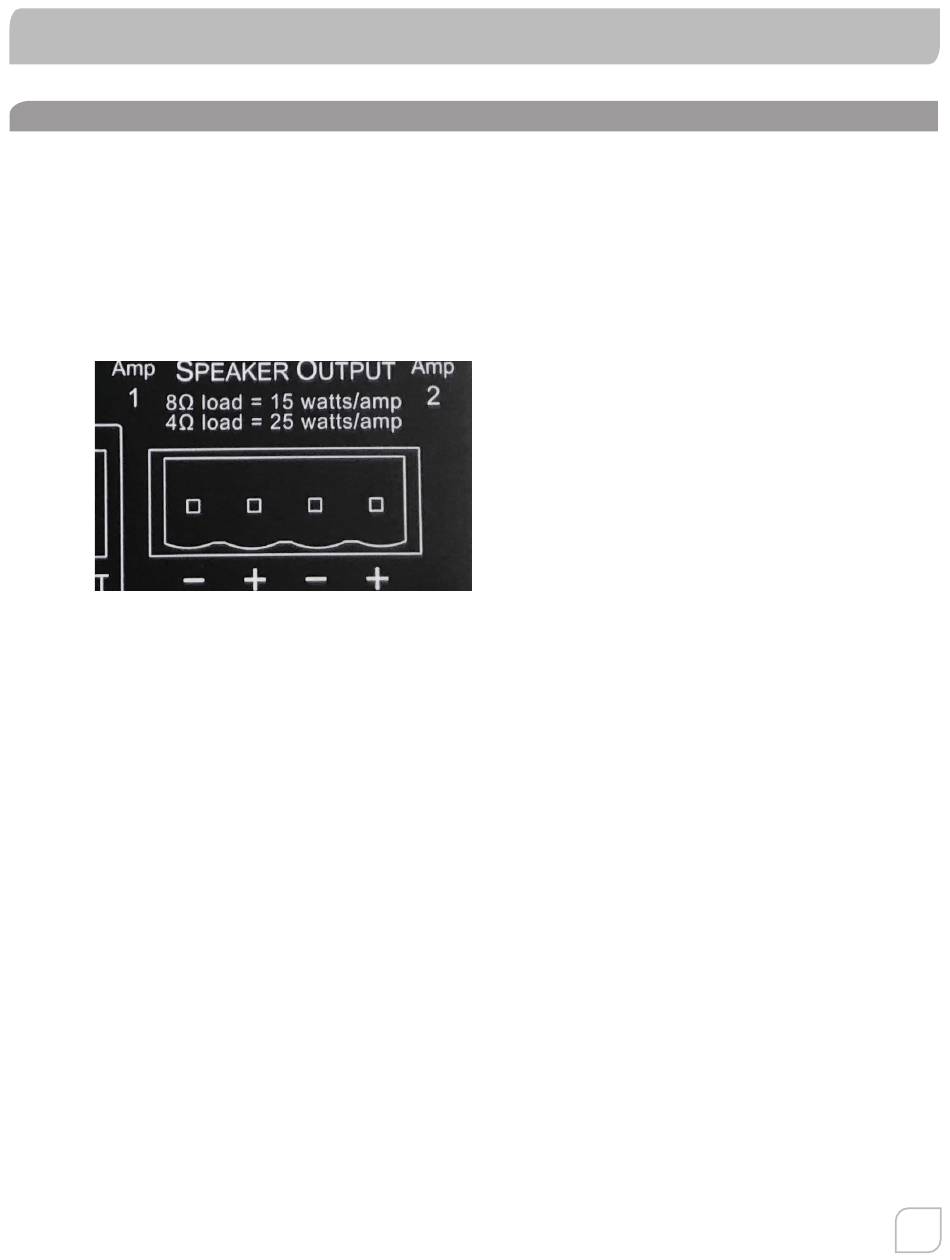

Figure H
Speaker Output Phoenix Connector
16
