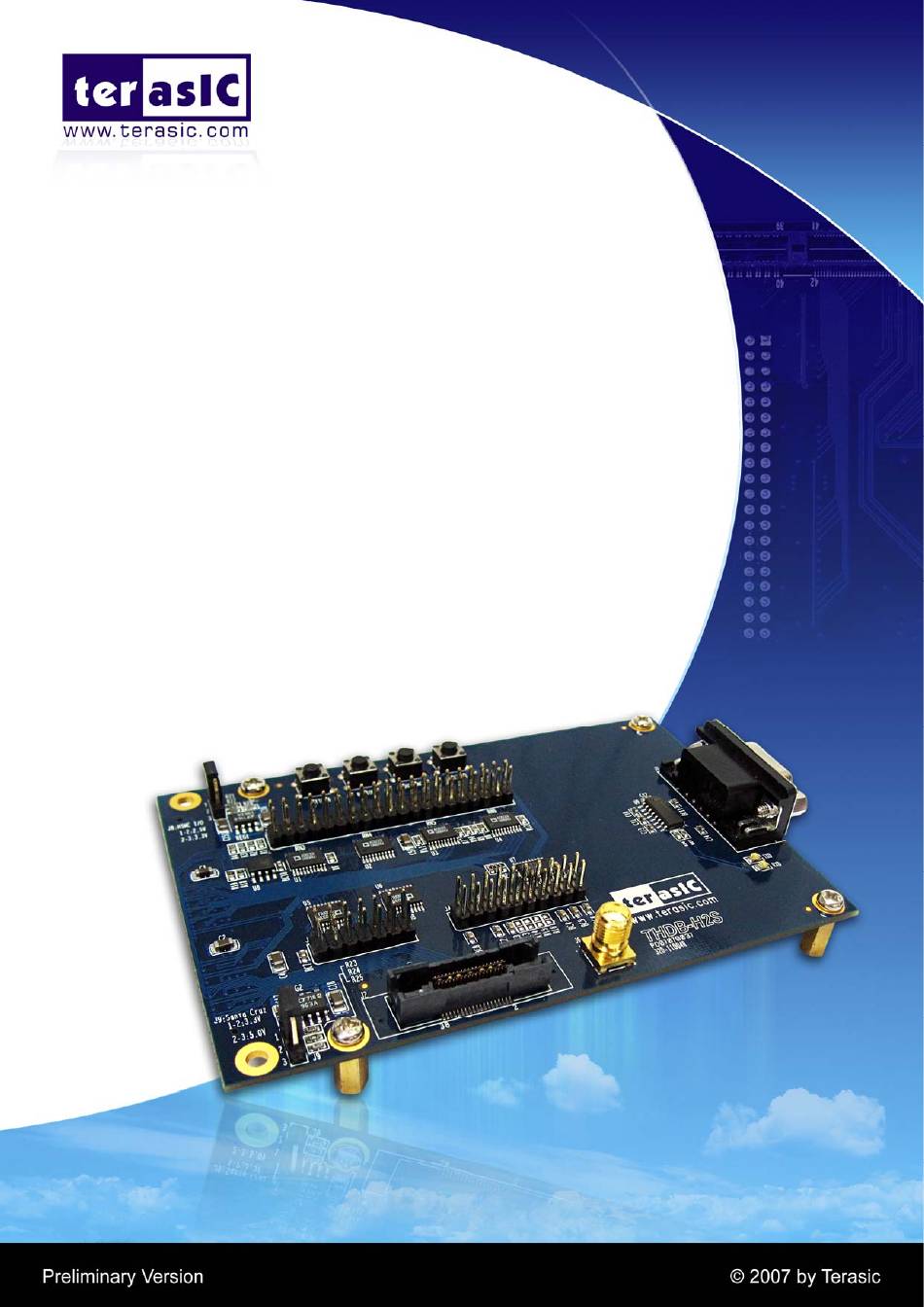

- Page 1 Terasic THDB-H2S THDB-H2S Terasic HSMC to Santa Cruz Daughter Board User Manual Document Version 0.1 AUG. 15, 2007 by Terasic...
-
Page 2: Table Of Contents
................................. 15 ONNECTOR 1-11 I2C S EEPROM ................................16 ERIAL 1-12 P ..................................16 OWER UPPLY DEMONSTRATION ..................................17 1-13 C THDB-H2S B III S ..................17 ONNECTING OARD TO YCLONE TART OARD APPENDIX ......................................19 1-14 R ................................19... -
Page 3: Introduction
(SC) interface which allows users to use the SC interface boards on a board with a HSMC connector. Also, the source signals form the HSMC connector to the SC header on the THDB-H2S board pass through level shifters to adjust the logic level difference between the HSMC and SC interface board. -
Page 4: Getting Help
Introduction Getting Help Here are some places to get help if you encounter any problem: Email to support@terasic.com Taiwan & China: +886-3-550-8800 Korea : +82-2-512-7661 Japan: +81-428-77-7000... -
Page 5: Architecture
Architecture Architecture This chapter describes the architecture of the THDB-H2S board including its PCB and block diagram. Layout and Componets The picture of the TDRB-H2S board is shown in Figure 2.1 and Figure 2.2. It depicts the layout of the board and indicates the location of the connectors and key components. - Page 6 Architecture Figure 2.2 The TDRB-H2S Back side – HSMC connector view The following components are provided on the THDB-H2S board : • HSMC expansion connector (J1) • Santa Cruz Headers(J3,J4,J5) • Mictor connector (J2) • SMA connector (J6) • 9-pin connector (J7) and RS232 Transceiver (U9) •...
-
Page 7: Block Diagram
Architecture Block Diagram Figure 2.3 shows the block diagram of the THDB-H2S board THDB-H2S HSMC Connector HSPROTO_IO PROTO_IO Level Santa Cruz Translator Connector Mictor Mictor Connector Interface Connector HSMC Interface RS232 Serial RS232 Interface Host Board Connector Push General User-Interface... -
Page 8: Board Components
This section describes the HSMC connector on the THDB-H2S board THDB-H2S board contains an Altera standard HSMC connector. All the other connector interfaces on the THDB-H2S board are connected to the HSMC connector. Figure 3.1, Figure 3.2, and Figure 3.3 show the pin-outs of the HSMC connector. - Page 9 Board Components HSPROTO_RESET HSPROTO_IO0 HSPROTO_IO2 HSPROTO_IO1 VCC33 HSPROTO_IO4 HSPROTO_IO3 HSPROTO_IO6 HSPROTO_IO5 VCC33 HSPROTO_IO8 HSPROTO_IO7 HSPROTO_IO10 HSPROTO_IO9 VCC33 HSPROTO_IO12 HSPROTO_IO11 HSPROTO_IO14 HSPROTO_IO13 VCC33 HSPROTO_IO16 HSPROTO_IO15 HSPROTO_IO18 HSPROTO_IO17 VCC33 HSPROTO_IO20 HSPROTO_IO19 HSPROTO_IO22 HSPROTO_IO21 VCC33 HSPROTO_IO24 HSPROTO_IO23 HSPROTO_IO26 HSPROTO_IO25 VCC33 HSPROTO_CARDSEL HSPROTO_IO27 HSPROTO_IO40 HSPROTO_IO28 VCC33 HSMC_RX_IO30...
- Page 10 Board Components HSPROTO_IO34 HSPROTO_IO33 HSPROTO_IO36 HSPROTO_IO35 VCC33 HSPROTO_IO38 HSPROTO_IO37 BUTTON1 HSPROTO_IO39 VCC33 MICTOR_D13 BUTTON2 MICTOR_D12 BUTTON3 VCC33 MICTOR_D11 BUTTON4 MICTOR_D10 MICTOR_D24 VCC33 MICTOR_D9 MICTOR_D23 MICTOR_D8 MICTOR_D22 VCC33 MICTOR_D7 MICTOR_D21 MICTOR_D6 MICTOR_D20 VCC33 MICTOR_D5 MICTOR_D19 MICTOR_D4 MICTOR_D18 VCC33 MICTOR_D3 MICTOR_D17 MICTOR_D2 MICTOR_D16 VCC33 MICTOR_D1...
-
Page 11: Level Translators And Configuration Headers
This section describes how to use the level translators and configuration headers on the THDB-H2S board The level translators of the THDB-H2S board convert the signal levels between the HSMC and Santa Cruz connectors according to the configurations of the headers (J8, J9). Figure 3.4 shows the block diagram of such function. -
Page 12: Santa Cruz Connector
This section describes the Santa Cruz connector on the THDB-H2S board The THDB-H2S board comes with Santa Cruz connectors (J3, J4 and J5) to connect to a daughter board with Santa Cruz interface. Figure 3.5 shows the pin-outs of the Santa Cruz connector. Detailed pin mappings between J3, J4, and J5 to the HSMC connector is listed in Table 3.3, Table 3.4, and Table 3.5, respectively. - Page 13 Board Components Table 3.3 The pin assignments of the Santa Cruz connector J3 Santa Cruz connector J3 HSMC Pin SC Pin Number SC Signal Name HSMC Pin Signal Name Number PROTO_IO40 HSPROTO_IO40 PROTO_IO29 HSPROTO_IO29 PROTO_IO30 HSPROTO_IO30 PROTO_IO31 HSPROTO_IO31 PROTO_IO32 HSPROTO_IO32 PROTO_IO33 HSPROTO_IO33 PROTO_IO34...
-
Page 14: Mictor Connector
HSPROTO_IO28 Mictor Connector This section describes how to use the Mictor connector on the THDB-H2S board The Mictor connector (J2) can be used for logic analysis on the HSMC-interfaced host board by connecting an external scope or a logic analyzer to it. Figure 3.6 shows the pin-outs of the Mictor connector. Table 3.6 shows... - Page 15 Board Components Figure 3.6 Mictor connector pin-outs Table 3.6 The pin assignments of the Mictor connector (J2) Mictor Connector Mictor Connector HSMC Pin Number Signal Name Pin Number MICTOR_CLK TR_CLK MICTOR_D24 MICTOR_ D13 MICTOR_ D23 MICTOR_ D12 MICTOR_TDO MICTOR_D22 MICTOR_TCK MICTOR_D11 MICTOR_TMS MICTOR_D10...
- Page 16 Cyclone III start board using Mictor interface is shown below: 1. Connecting the THDB-H2S board to the Cyclone III Start Board. 2. Removing the jumpers of JP1 and JP2 of the Cyclone III Start Board to connect the JTAG interface between Cyclone III FPGA and the THDB-H2S board.
-
Page 17: Rs232 Transceiver And The 9-Pin Connector
This section describes the RS232 Transceiver and 9-Pin Connector on the THDB-H2S board The THDB-H2S is equipped with a RS232 transceiver (U9) and a 9-pin connector (J7) to provide RS232 serial I/O interface to the HSMC interface host board. The pin assignments of the RS232 interface are shown in Table3.7. -
Page 18: I2C Serial Eeprom
This section describes the I2C Serial EEPROM on the THDB-H2S board The THDB-H2S board provides an EEPROM (U8) which can be configured by the I2C interface. The size of the EEPROM is 128 bit that can store the board information or user’s data. The detailed pin description between EEPROM and HSMC connector is listed in the Table 3.9. -
Page 19: Demonstration
Demonstration Demonstration This chapter illustrates how to connect the THDB-H2S board to a HSMC interface host board using a Cyclone III Starter Board as an example Connecting THDB-H2S Board to Cyclone III Start Board 1-13 This section describes how to use THD-H2S board the Cyclone III start board and what users need to know during the operation Figure 4.1 Connecting the THDB-H2S board to the Cyclone III start board... - Page 20 Users MUST short Pin 1 and Pin 2 of the J8 on the THDB-H2S to force the voltage level to 2.5V to match the 2.5V IO pins of the Cyclone III board. Configure J9 of the THDB-H2S according to the logic level of the Santa Cruz daughter board (refer to Table 3.2)
-
Page 21: Appendix
Revision History 1-14 Date Change Log AUG 15, 2007 Initial Version Always Visit THDB-H2S Webpage for New Main board 1-15 We will be continuing providing interesting examples and labs on our THDB-H2S webpage. Please visit www.altera.com or h2s.terasic.com for more information. - Page 22 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Terasic P0309...
