4.

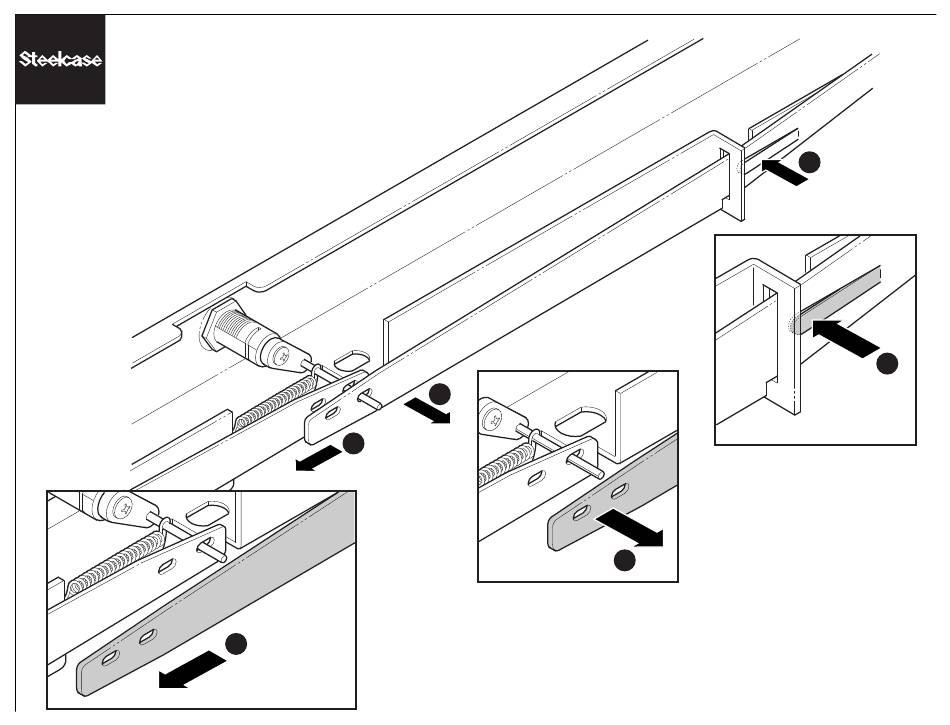

Remove two (2) lock bars.
a
a. Push in locking tab on rear lock bar.
b. Pull rearward off lock pin.
c. Slide lock bar in direction shown (to the left).
d. Repeat for opposite lock bar.
a
b
c
b
c
