Field replacement of trim assembly for lateral file with lock
Hide thumbs Also See for Ellipse:

Advertisement

®
1.

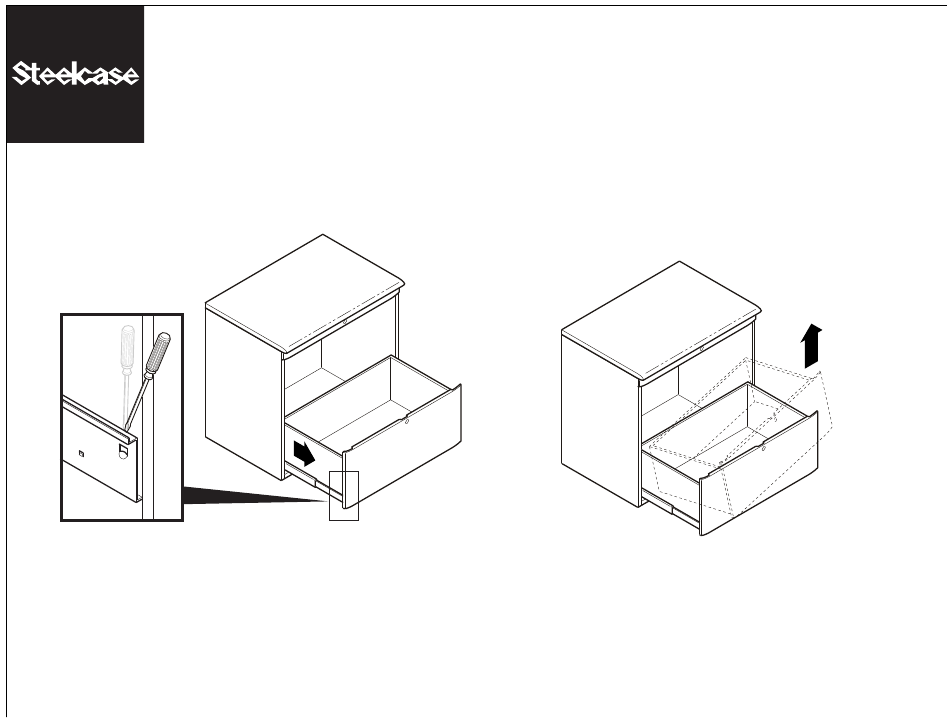

Remove both lateral file drawers.

a. Pull bottom drawer all the way out
b. Disconnect from suspension
as shown in sketch
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2000 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
Field Replacement of Trim Assembly for
Ellipse
c.
Remove drawer by lifting up and out as shown
d.
Repeat with upper drawer
®
Lateral File with Lock
939504793 Rev A
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ellipse and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase Ellipse

  • Page 1 Disconnect from suspension as shown in sketch If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 Remove veneer or laminate top (when required) Remove push nut at rear by removing five (5) screws. of lock cam pin. Page 2 of 5 939504793 Rev A...
  • Page 3 Remove two (2) lock bars. a. Push in locking tab on rear lock bar. b. Pull rearward off lock pin. c. Slide lock bar in direction shown (to the left). d. Repeat for opposite lock bar. Page 3 of 5 939504793 Rev A...
  • Page 4 Remove trim assembly from file cabinet: Place new trim assembly in same position a. Remove the four (4) screws holding the as removed assembly. file lock trim assembly to the cabinet. b. Pull the trim assembly upward and away from the cabinet. NOTE: Push nut and (4) screws come in a Assemble to cabinet with four (4) screws.
  • Page 5 RH FRONT Install two (2) lock bars as shown: UPRIGHT RH shown-LH opposite a. Insert outside ends into vertical lock bar uprights as shown (it may be necessary to raise lock upright slightly). ACTUATOR BAR, LOCK RH LOCK BAR Install ends of lock bars over lock cam pin (note position of slots in lock bars).
