Ellipse
'H' Junction - American General
®
Left hand installation
Right hand installation

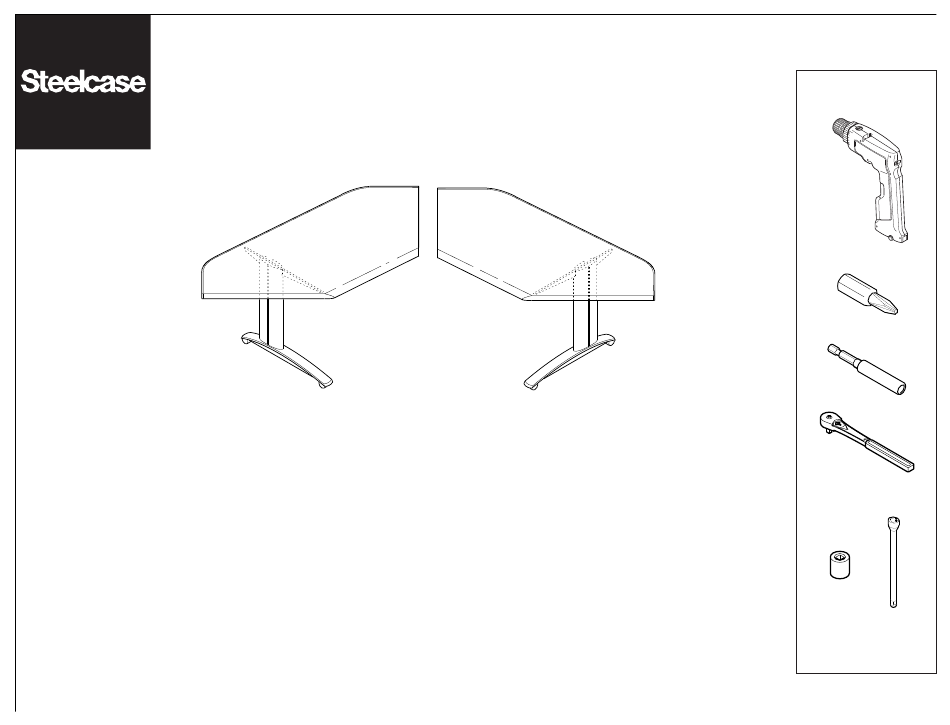

The 'H' style worksurface may be attached adjacent right or left of
your desk worksurface. A right handed configuration is shown
throughout this instruction. Left hand installation is typical.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
3/8"
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2003 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 3
Printed in U.S.A.
939504516 Rev D
Advertisement
Related Manuals for Steelcase Ellipse H Junction
Summary of Contents for Steelcase Ellipse H Junction
- Page 1 A right handed configuration is shown throughout this instruction. Left hand installation is typical. If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 3/8" 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
- Page 2 POWERBEAM INTERIOR GUSSET Position 'H' top on non-abrasive surface. Locate leg above desired mounting side of worksurface and fasten leg. Do not tighten screws. Remove outer leg cover and attach exterior gusset to leg, align gusset mounting holes to worksurface and attach with screws.
- Page 3 Attach top brackets and worksurface straps to adjacent worksurface. Invert 'H' Style Worksurface and attach. Secure modesty panel brackets (insert into leg and push down) and secure all screws. This completes the 'H' Style Top attachment. Align modesty panel mounting holes with powerbeam holes and fasten together with silver colored screws.
