Control Panel Replacement - Saber Compact R33CC0312 Manual

Replacement Procedure - Before you Begin
IMPORTANT! Before beginning the replacement procedure:
Read through this entire procedure to familiarize yourself with the steps.
•
Ensure that your Grill is cool and all Control Knobs are in the OFF ( ) position.
•
Disconnect and remove the LP Cylinder.
•
Retain your hardware for use in reassembling your Grill, unless instructed to do otherwise.
•
Keep the shipping carton and supplied shipping label for use in returning your old parts to Saber Grills.
•
Some steps will require bending and extended reaching. Please review this guide before attempting to
•
replace these parts. If you determine that you are unable to complete these steps, please contact Saber
Grills for assistance.
Please note that extra Wires, Wire Ties, and Screws are included should you need them.
After completion of this procedure, you will have installed a completely new Control Panel and Hose/Regulator assembly into
your Saber Grill. If your Grill has a Side Burner - you will also replace it as well.

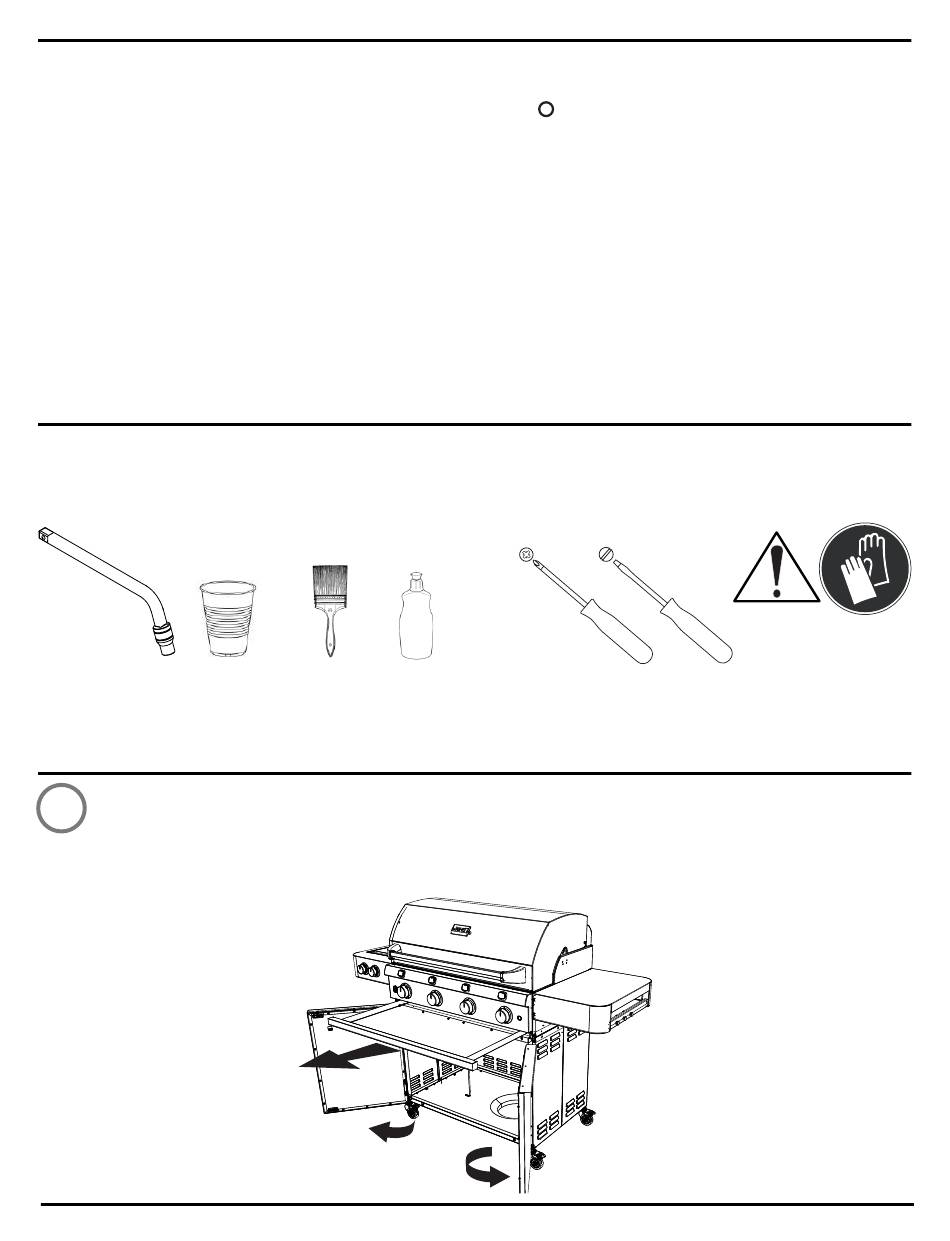

Tools and Safety Equipment Recommended -
NOTE: Some Tools are not included. We recommend the use of the tools listed below to complete the replacement of the
Control Panel.
Wear gloves to protect your hands during the replacement procedure.
7/16" Socket
Tool (Included)
Small bucket or cup
NOTE: You will need the 7/16" socket tool (included) to complete the replacement of the Side Burner. This Tool is needed only
for the replacement of the Side Burner.
Procedure - Replacing your Control Panel
Open the Cart Panel Door(s)
1
Remove the Grease Tray for easy access to components.
NOTE: We will not show the Doors in the steps after this step - this will help make the images easier to follow. Please
DO NOT remove your Doors.
© Saber Grills, LLC
Soft Bristle Brush
Liquid Soap

Control Panel Replacement

Phillips Screwdriver
2
80028080 ● 09/13/17 ● Revision 03
Printed in U.S.A.
Flat Blade
Screwdriver
These symbols mean to use
caution and to wear your Gloves.
