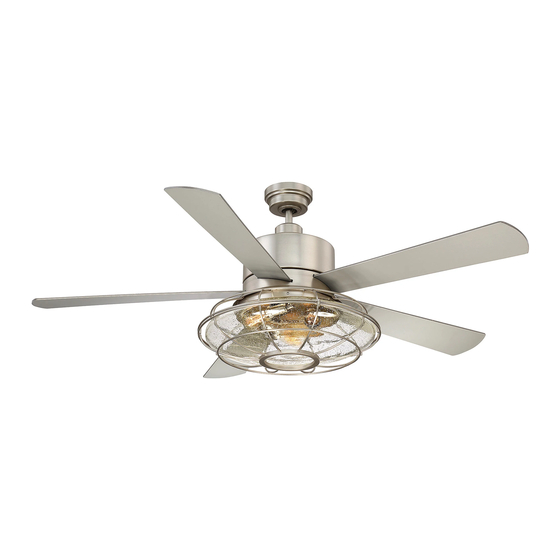

CEILING FAN
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
MODEL: 56-578-5SV-SN
56-578-5WA-13
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56-578-5SV-SN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Savoy House 56-578-5SV-SN

  • Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 56-578-5SV-SN 56-578-5WA-13 FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552A...
  • Page 2: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (5) b.
  • Page 3: Safety Rules

    3. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan.
  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials.
  • Page 5: Hanging The Fan

    5. HANGING THE FAN Hanger REMEMBER to turn off the power. Follow bracket the steps below to hang your fan properly: Ceiling Step 1. Remove the decorative canopy canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Step 2.
  • Page 6: Installation Of Safety Support

    6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 9. Figure 9 7.
  • Page 7: Finishing The Installation

    Step 3. (Figure 12) Receiver to House Supply Wires Electrical Connections: Outlet box Connect the black (hot) wire from the ceiling to the black wire marked "AC in L" White (neutral) Black (hot) from the receiver. Connect the white Green or bare (neutral) wire from the ceiling to the white copper (ground) Black ("AC IN L")
  • Page 8: Attaching The Fan Blades

    9. ATTACHING THE FAN BLADES Step 1. Insert the blade through the slot in the housing. Align the holes in the blade, the blade support plate, and the fan motor assenbly and secure with a blade attachment screw with lock washer. (Fig. Slot Blade Blades support...
  • Page 9: Installing The Light Kit

    11. INSTALLING THE LIGHT KIT NOTE: Before starting installation, discon- nect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1.
  • Page 10: Installing The Battery

    13. INSTALLING THE BATTERY Insert the 3 volt battery (included) and make sure they are seated correctly in each recess with the Positive + sign facing up. (Fig. 19) 14. OPERATING Figure 19 INSTRUCTIONS Restore power to ceiling fan and test for proper operation.
  • Page 11: Care Of Your Fan

    The Reverse switch is located on the top of the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. NOTE: Wait for fan to stop before chan ing the setting of the slide switch.
  • Page 12: Troubleshooting

    16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
