ADDENDUM to INSTALLATION INSTRUCTIONS
When installing with:
- 787RGL—Reflective Glass Liners or
- 785RGP—Reflective Glass Panel
Installation the 787RGL—Reflective Glass
Liners
When installing the glass panels on the 780M, the
following items are not used:
• 4004883AH—Glass retainer
• 4002482—LH base panel*
• 4002481—RH base panel*
*The base panels are supplied with appliance.
x
Remove burner cover
Remove the burner cover plate (2 screws at rear). Lift
the front edge up and pull the plate toward you.
© Copyright Miles Industries Ltd., 2020
780MN / MP
x
x

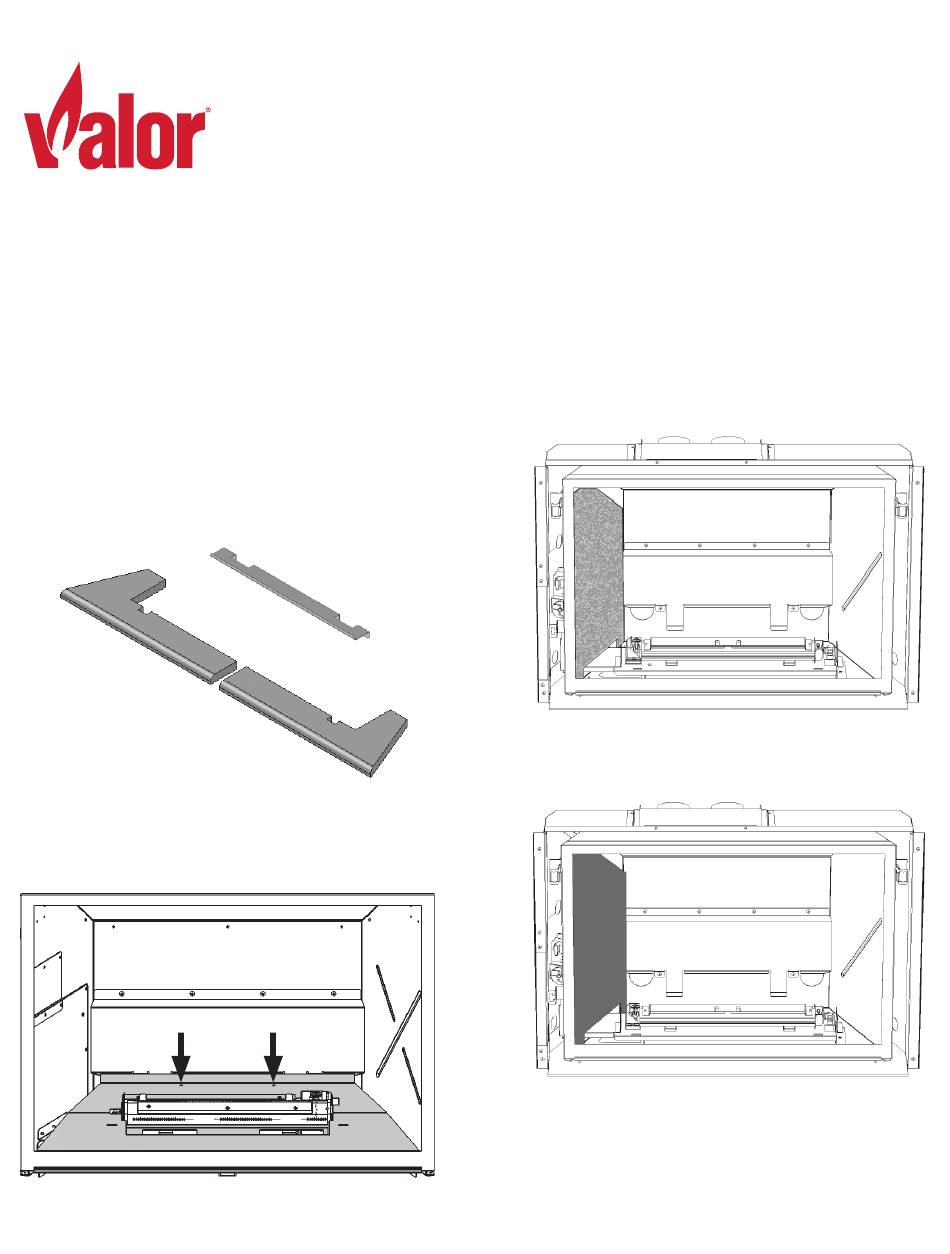

Installation of glass panels

1. Inside the fi rebox, on the top left side, rotate the
brick anchor up and out of the way and slide one of
the side fi ller panels against the fi rebox left side.
2. Place the left hand side glass panel, smooth side vis-
ible, on top of the fi ller panel and rotate the anchor
back down to hold the panels.
