Rugged Ridge 11425.15 Manual

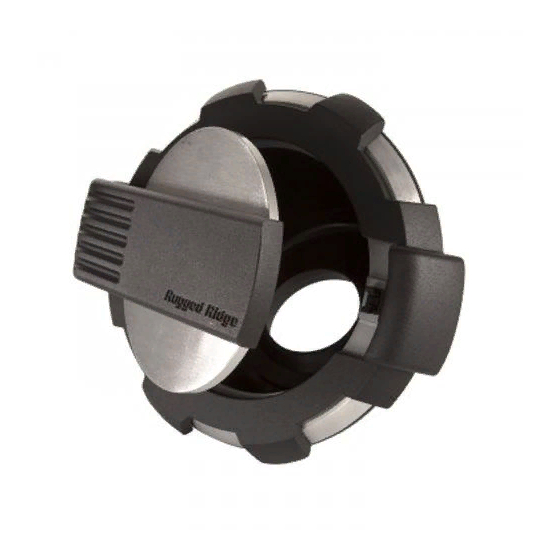

Elite locking fuel door & cap kit

Table of Contents

Download this manual

Installation Time: 10 minutes

 Flat head screwdriver

 Phillips head screwdriver

 Plastic pry tool

1. Start by removing the driver's side rear taillight. Remove taillight by remove the (2) Phillips head screws along

the inside edge of the light. Unplug light and set aside.

2. Unscrew and remove the factory gas cap. Use a plastic pry tool to unclip the retaining wire.

Rugged Ridge Elite Locking Fuel Door & Cap Kit

Table of Contents

Need help?

Do you have a question about the 11425.15 and is the answer not in the manual?

Page 1 Rugged Ridge Elite Locking Fuel Door & Cap Kit Installation Time: 10 minutes Tools Required  Flat head screwdriver  Phillips head screwdriver  Plastic pry tool Installation Instructions: 1. Start by removing the driver’s side rear taillight. Remove taillight by remove the (2) Phillips head screws along the inside edge of the light.
Page 2 4. Slide the rubber gasket, from the new Rugged Ridge Elite fuel door, over the factory gas tank filler neck. 5. Position the fuel door and push into the rear fender of the Jeep, using medium pressure until the (4) locking tabs...
Page 3 6. Screw the new locking gas cap in until you hear a click. Turn the key to lock into place. 7. Reinstall the rear taillight to complete the install. Before After Installation Instructions Written by ExtremeTerrain Customer Louis Orellana 11/10/17...
