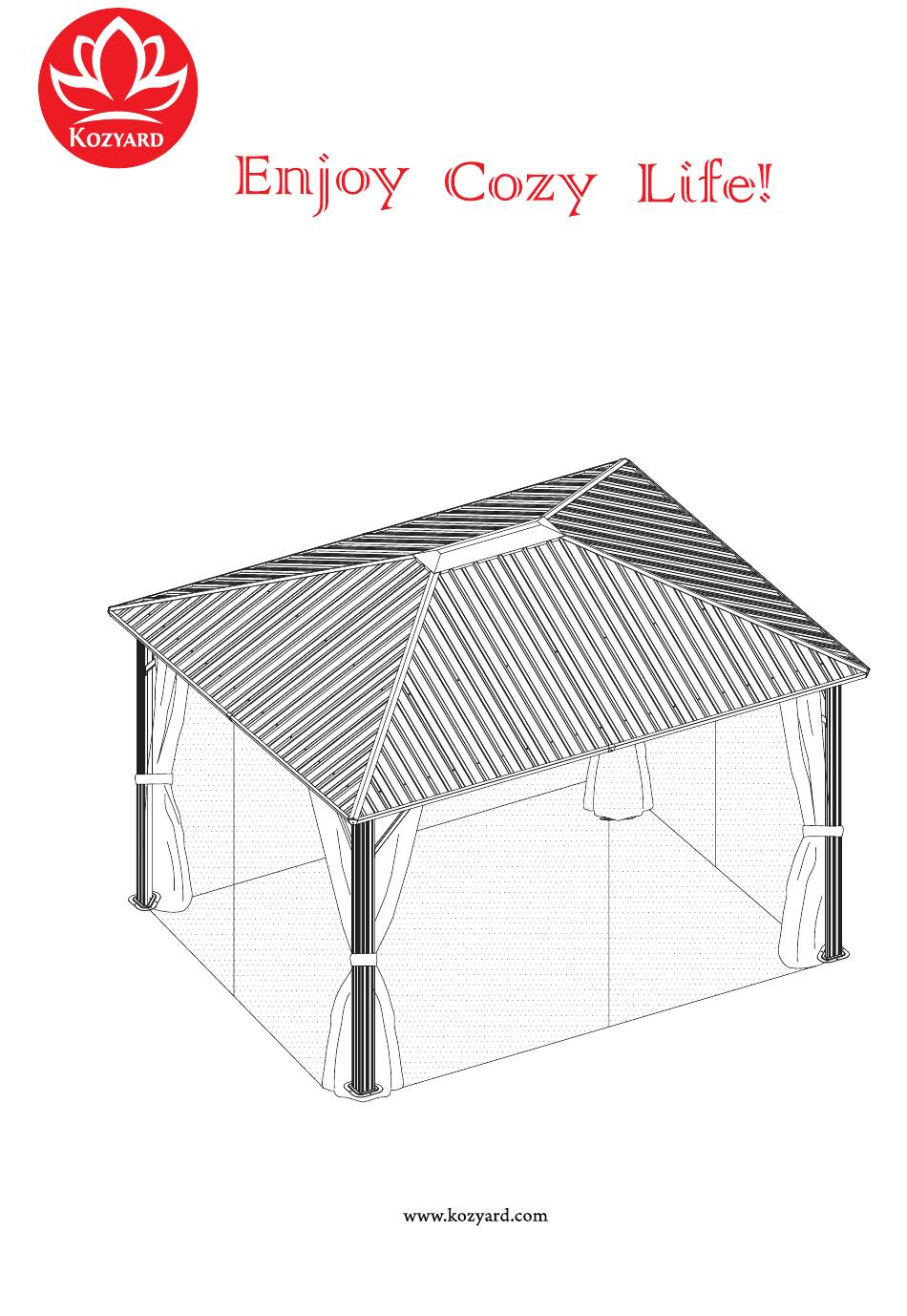

- Page 1 10’x12’ Rosana hardtop gazebo Assembly Manual Kozyard LLC Products © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
- Page 2 1.Two or more people are required for assembly. 2.You will need one or more stepladders. 3. Wearing protective gloves is recommended. 4.You may need a safety hat. 5.Use the hex keys in the box. 6.Please use a Phillips screwdriver. 7.Do not fully tighten screws prior to complete assembly.
- Page 3 H1X2 C1X2 J1X4 C2X2 KX104 C3X2 N1X1 P1X4 D1X4 ITEM DESCRIPTION Pole Beam Beam Beam Beam Corner Roof Bar Roof Bar E1X2 Finishing Bar Finishing Bar Finishing Bar Finishing Bar Solidifying Bar Solidifying Bar Solidifying Bar F1X2 Solidifying Bar Corner Solidifying Bar Corner Solidifying Bar Base Hook...
- Page 4 Q1X2 Q2X2 Q3X2 Q5X2 Q4X2 R1X2 R2X2 R3X2 S1X2 S2X2 S3X2 T1X4 ITEM DESCRIPTION Panels Panels Panels Panels Panels Panels UX100 XX56 Panels Panels Panels Panels Panels X2X4 X1X4 Panels X111+6 X4+1 Panels Panels Solide Sidewall Mosquito Sidewall Spacer Allon Key/Wrench X4+1 X28+2 X24+2...
- Page 5 Step 1： Parts Required: Set up poles (Part A) with stand paletes (Part B) using screws AA as shown in diagram. Parts Required: Step 2： Put 6 hooks to each slot of sidewall track (Part C&C1). Then connect Part C and Part C1 into one beam using screws AA as shown in diagram.
- Page 6 Step 3： Parts Required: Use screws AA to contect poles and beams together as shown in diagram. Finish connecting beams using corner covers Parts Required: Step 4： (Part M)and screws I as shown in diagram. Affix middle beams using joint cover (Part L&W) and screws I&BB as shown in diagram.
- Page 7 Step 5： Parts Required: Affix the frame with corner Solidifying Bars (Part J and J1) by using Screws AA as shown in diagram. Step 6： Parts Required: Set up roof frame. Connect the inside roof connect (Part N1) with the corner roof bar (Part D) using Screws AA as shown in dragram.
- Page 8 Step 7： Parts Required: Attach roof bar (Part D1) to inside roof connector using screws AA as shown in diagram. Attach roof bar (Part D1&D) to main frame using screws AA as shown in diagram. Step 8： Parts Required: Connect outside roof connector (Part N) to inside roof connector (Part N1) using screw AA as shown in diagram.
- Page 9 Step 9： Parts Required: Affix solidifying bars (Part G & G1) to roof bar (Part D1) and corner roof bar (Part D) using screw (AA&T) as shown in diagram. page 7...
- Page 10 Step 10： Parts Required: Cover metal bracket (Part X,X1&X2) to roof panels as shown in diagram. page 8...
- Page 11 Step 11： Parts Required: page 9...
- Page 12 Step 12： Overall roof assembly. Connect roof as below: page 10...
- Page 13 Step 13： Parts Required: Affix roof panels using screws and spacer (Part U) as shown in diagram. X100 page 11...
- Page 14 Step 14： Parts Required: Attach finishing bars (Part E & E1) by (Part P & P1) using screws AA to roof bar and corner roof bar as shown in diagram. page 12...
- Page 15 Step 15: Hang up solid sidewall as shown in diagram. Parts Required: Attention：Change hook: take out Part W and Part K into the slot. In the end check all screws are fixed tightly before using. page 13...
- Page 16 Kozyar © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
