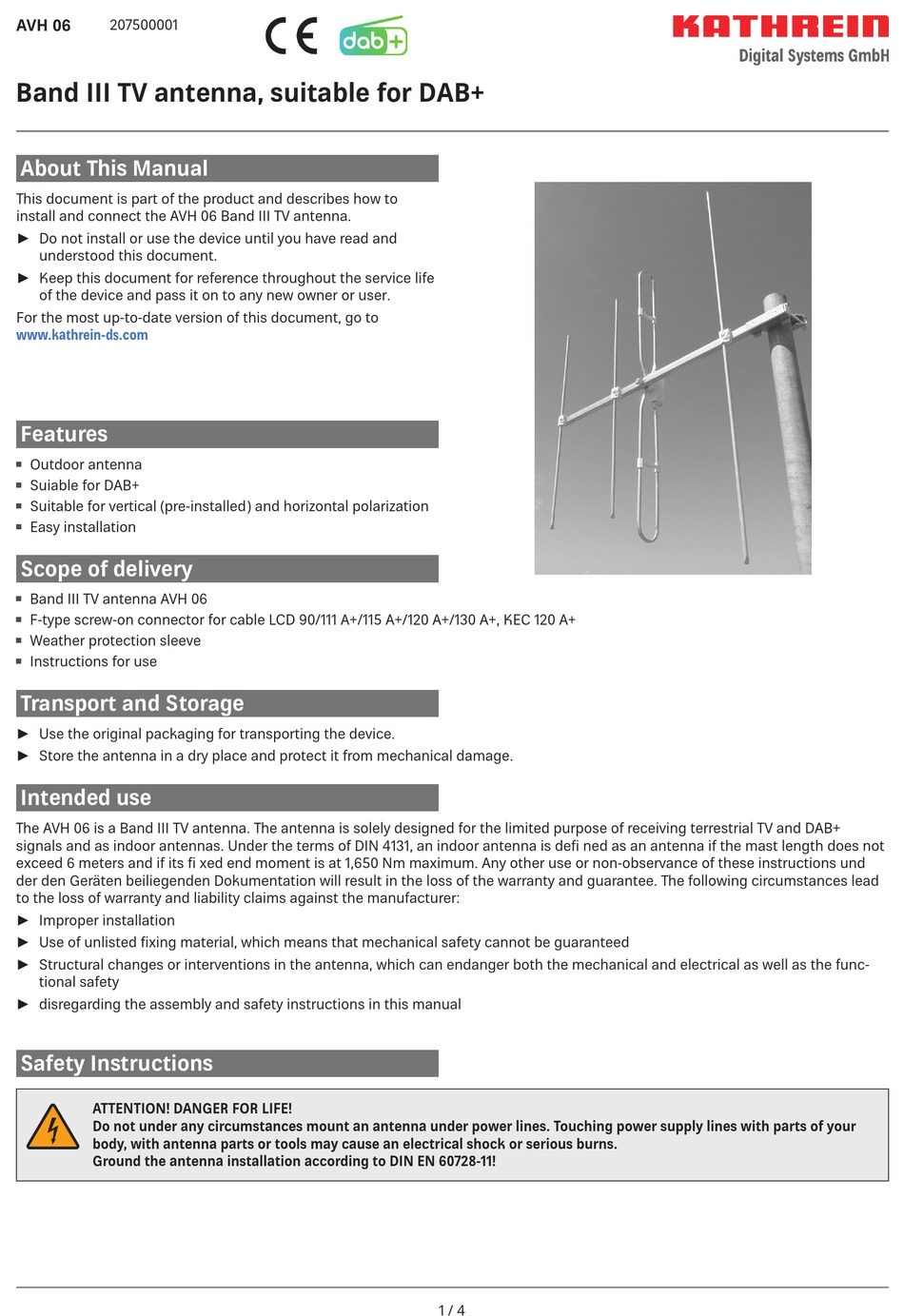

AVH 06
207500001

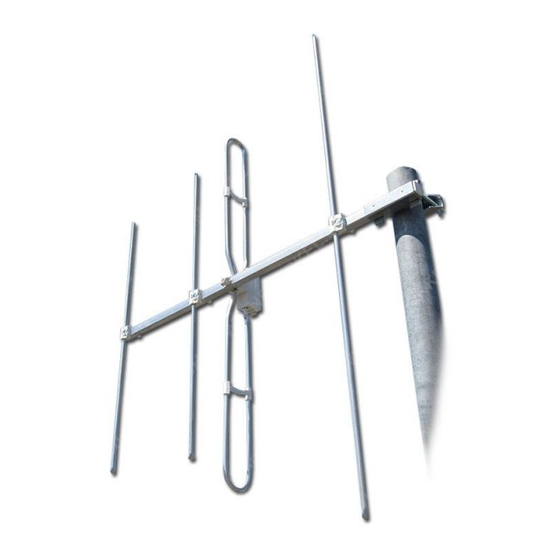

Band III TV antenna, suitable for DAB+
About This Manual
This document is part of the product and describes how to
install and connect the AVH 06 Band III TV antenna.
► Do not install or use the device until you have read and
understood this document.
► Keep this document for reference throughout the service life
of the device and pass it on to any new owner or user.
For the most up-to-date version of this document, go to
www.kathrein-ds.com
Features
•
Outdoor antenna
•
Suiable for DAB+
•
Suitable for vertical (pre-installed) and horizontal polarization
•
Easy installation
Scope of delivery
•
Band III TV antenna AVH 06
•
F-type screw-on connector for cable LCD 90/111 A+/115 A+/120 A+/130 A+, KEC 120 A+
•
Weather protection sleeve
•
Instructions for use
Transport and Storage
► Use the original packaging for transporting the device.
► Store the antenna in a dry place and protect it from mechanical damage.
Intended use
The AVH 06 is a Band III TV antenna. The antenna is solely designed for the limited purpose of receiving terrestrial TV and DAB+
signals and as indoor antennas. Under the terms of DIN 4131, an indoor antenna is defi ned as an antenna if the mast length does not
exceed 6 meters and if its fi xed end moment is at 1,650 Nm maximum. Any other use or non-observance of these instructions und
der den Geräten beiliegenden Dokumentation will result in the loss of the warranty and guarantee. The following circumstances lead
to the loss of warranty and liability claims against the manufacturer:
► Improper installation
► Use of unlisted fi xing material, which means that mechanical safety cannot be guaranteed
► Structural changes or interventions in the antenna, which can endanger both the mechanical and electrical as well as the func-
tional safety
► disregarding the assembly and safety instructions in this manual
Safety Instructions
ATTENTION! DANGER FOR LIFE!
Do not under any circumstances mount an antenna under power lines. Touching power supply lines with parts of your
body, with antenna parts or tools may cause an electrical shock or serious burns.
Ground the antenna installation according to DIN EN 60728-11!
1 / 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kathrein AVH 06
Summary of Contents for Kathrein AVH 06
- Page 1 Intended use The AVH 06 is a Band III TV antenna. The antenna is solely designed for the limited purpose of receiving terrestrial TV and DAB+ signals and as indoor antennas. Under the terms of DIN 4131, an indoor antenna is defi ned as an antenna if the mast length does not exceed 6 meters and if its fi...
- Page 2 ► Ensure that the technical values (e.g. wind load) of the antenna mast are not exceed. Consult the manufacturer if you do not know these values. See „Suitable Kathrein masts“ on page 4 for an overview of the masts o ered by KATHREIN Digital Systems.
- Page 3 Antenna installation 1. Unpacking the antenna 2. Turn the rods by 90°, push them in the middle (observe marking) and tighten the screws 3. Dipole mounting (Position according to picture) 4. Connect the cable to the F-socket, put the weather protection sleeve The antenna can also be mounted horizontally.
- Page 4 • ZAS 41 Only the upper mast can be used, as the diameter of the lower mast is too large for the mast clamp. Further information and the technical data for the masts can be found at https://www.kathrein-ds.com. Repair and replacement autronic electronic-service GmbH Hauptstraße 2a...
