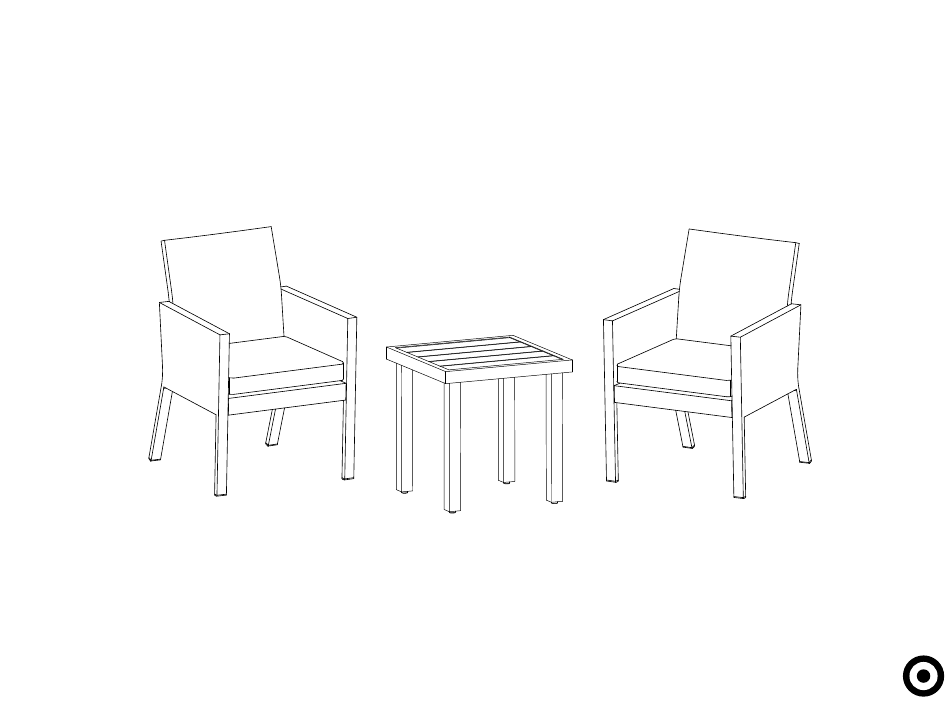

- Page 1 Howell upholstered small space chat set style # FCS60615ST dpci # 009003842 >>assembly instructions...
-
Page 2: Important Warning
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time. -
Page 3: Warranty
These Chairs and Side Table come with a one year limited warranty against original manufacture defects. If you experience trouble with your new chair and side table, please call the customer service number below. Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday. - Page 4 table of contents introduction hardware parts list assembly 7-12 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
- Page 5 hardware (Part G)×4 (Part H)×8 (Part I)×12 (Part J)×1 M6*20mm bolt with washer M6*30mm bolt with washer M6*15mm bolt with washer allen wrench ATTENTION: THE HARDWARE KIT IS FOR 1 SET.
-
Page 6: Description Quantity
ITEM DESCRIPTION QUANTITY right armrest left armrest chair seat chair back table top table leg... - Page 7 step 01: (Part H)×2 (Part J)×1 M6*30mm bolt with washer allen wrench ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly. 1.
- Page 8 step 02: (Part G)×1 (Part J)×1 M6*20mm bolt with washer allen wrench 1. Attach the chair back (D) to the right armrest (A) by lining up the bolt holes on the end of the chair back (D) with the corresponding bolt holes on the right armrest (A). 2.
- Page 9 step 03: (Part H)×2 (Part J)×1 (Part G)×1 M6*30mm bolt with washer M6*20mm bolt with washer allen wrench 1. Attach the left armrest (B) to the chair seat (C) and chair back (D) by lining up the bolt holes on the end of the chair seat (C) and chair back (D) with the corresponding bolt holes on the left armrest (B).
- Page 10 step 04 1. Tighten all the bolts. Please lift the chair back up when tightening the bolts. 2. Turn the chair to upright position onto a flat level surface. Put the cushion on the chair. You are now ready to enjoy your new chair.
- Page 11 step 05: (Part I)×12 (Part J)×1 M6*15mm bolt with washer allen wrench 1. Attach the table leg (F) to the table top (E) by lining up the bolt holes on the table top (E) with the corresponding bolt holes on the table leg (F). 2.
- Page 12 step 06 1. Tighten all the bolts. 2. Turn the table to upright position onto a flat level surface. You are now ready to enjoy your new table.
