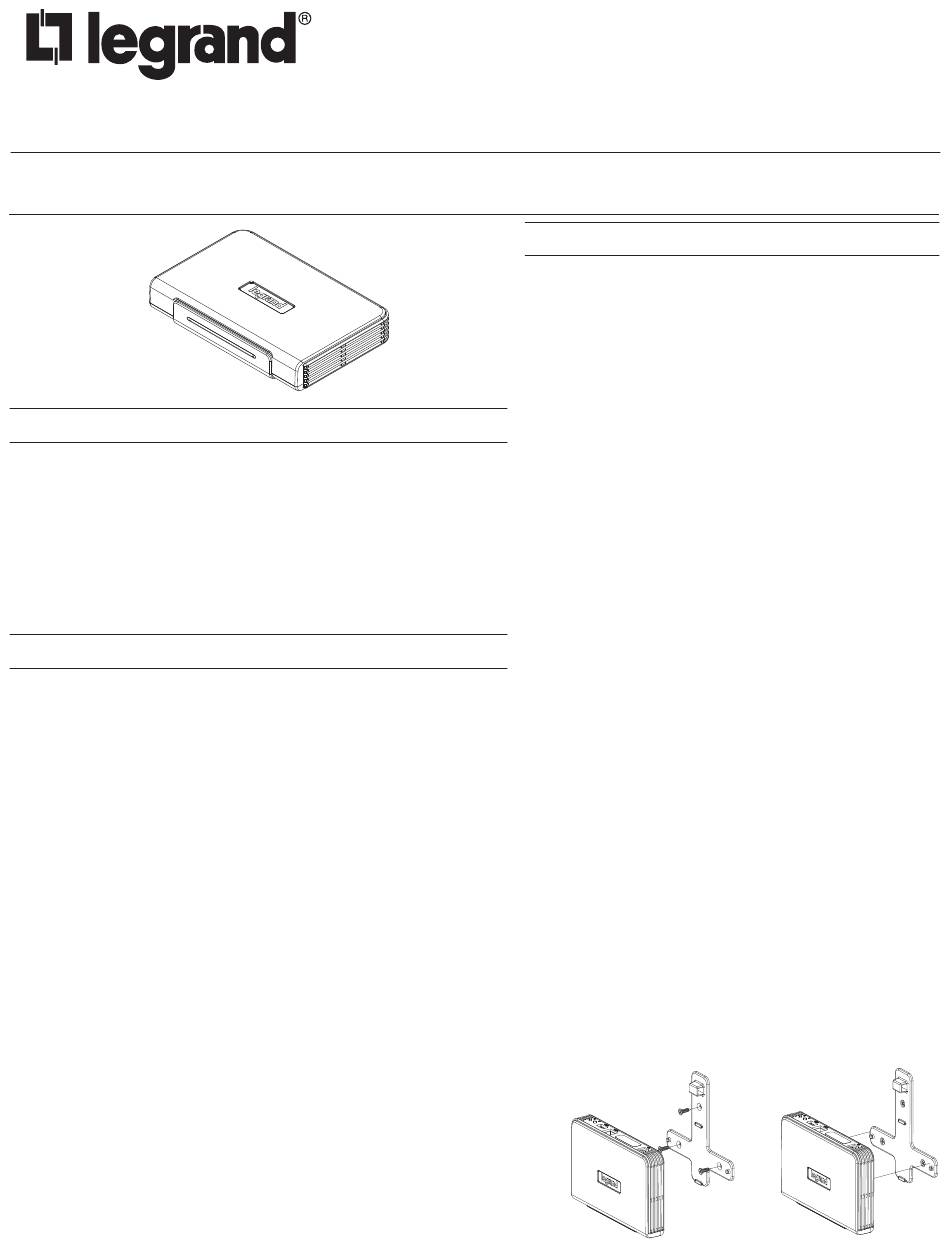

No: 26814 – 04/20 rev. r6
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMBR-650
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
The wireless border router manages the formation and configuration of
the 6LoWPAN wireless network and provides network connectivity via
wired Ethernet to a local area network (LAN). Wireless REED (powered)/
Routing devices connect to the border router to establish mesh routing
paths. The border router also provides key information about the
health of the mesh network in the form of signal quality, device status,
network status, and other real-time network information such as energy
monitoring. The border router allows cloud connectivity, which can be
used to update firmware in all connected wireless devices, as well the
LMBR-650 itself.
MOUNTING AND INSTALLATION
Each border router ships with the following components:
• LMBR-650 border router
• LMPB-100 Power Supply
• DC power adapter cable, DC barrel to RJ45 jack
• T-shaped mounting bracket
• Self tapping screws x 3
• Cable tie
Not included:
• LMRJ cable connection between power adapter cable and LMPB-100
• CAT5e network cable for connection to LAN, DLM Management software, and other BACnet devices
If the site will only have a single LMBR-650, it should be mounted as described below. If there are multiple LMBR-650s, one of them will
be designated as the Primary LMBR and all others will be Secondary LMBRs. It is Wattstopper best practice that the Primary LMBR
be used only for communication with other LMBRs and not have any wireless devices assigned to its network. Therefore, the Primary
LMBR will often be mounted in a network enclosure and will only communicate via ethernet cable and not with its wireless radio.
A single (or secondary) LMBR-650 is intended to be mounted in a central location for optimal communication with wireless devices. It is
rated for installation in plenum or non-plenum ceiling spaces. The LMBR-650 should be mounted to a vertical surface, using the included
T-shaped bracket, for optimum efficiency of wireless transmission/reception. For projects designed by Wattstopper services, check the
drawing for optimal border router placement. Wattstopper recommends a minimum of 10' between the LMBR-650 and another LMBR-
650 or any wireless bridges or wireless room controllers.
1. Using T-shaped mounting bracket, locate a suitable vertical surface to
mount the T-shaped bracket with the two screw holes facing down (T upside
down orientation as shown). Use provided self tapping screws to mount the
T-adapter.
2. Once T-adapter is secure, locate the mounting holes on back side of border
router and T-shaped adapter. With the border router network connections
facing upward align the border router over the mounting pegs and slide
down to lock into place.
NOTE: A single LMBR-650 or a secondary LMBR-650 in a multi-LMBR network
should not be installed in an enclosure. A primary LMBR-650 can be installed
in a network enclosure, since it will communicate via ethernet cable.
DESCRIPTION
Wattstopper
Wireless DLM Border Router
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
SPECIFICATIONS
Power
Either ....................IRB powered using dedicated LMPB-100
.............(included) with DC barrel-to-RJ-45 connector cable
Or ...............optional 120VAC plug-in power supply (NB-PS)
Current Consumption ......................................... 65mA @24VDC
Wireless ....................................................IEEE 802.15.4, 2.4gHZ
......IPv6 Mesh (6LoWPAN / 802.15.4 / 2.4GHz), range 100 ft.
....................................................Available Channels: 13-24
...................Built-in Antennas: Two IPv6 Mesh with diversity
.................................................... Bandwidth: up to 156kbps
Wireless Encryption
Connections ........ RJ45 10/100 Ethernet, 1 DC Barrel Connector
Storage ...................................................... Internal MicroSD Card
Time .................... Real-time clock with supercap 14 day back-up
Device Capacity .................. up to 50 REED/Routing devices and
...................................................................250 total devices
1 Primary LMBR-650 can support up to 10 Secondary LMBR-650's
LEDs .....................................................power and network status
Environment ................................................... For indoor use only
Operating Temp ....................................32 to 131F(0 to 55C)
Storage Temp .................................... 23 to 176F(-5 to 80C)
Relative Humidity .......................... 5–95% Non-condensing
Compliance/Regulatory
UL 2043 Plenum Rated, UL/C-UL (E101196), FCC, RoHS
®
AES-128 bit symmetric key
