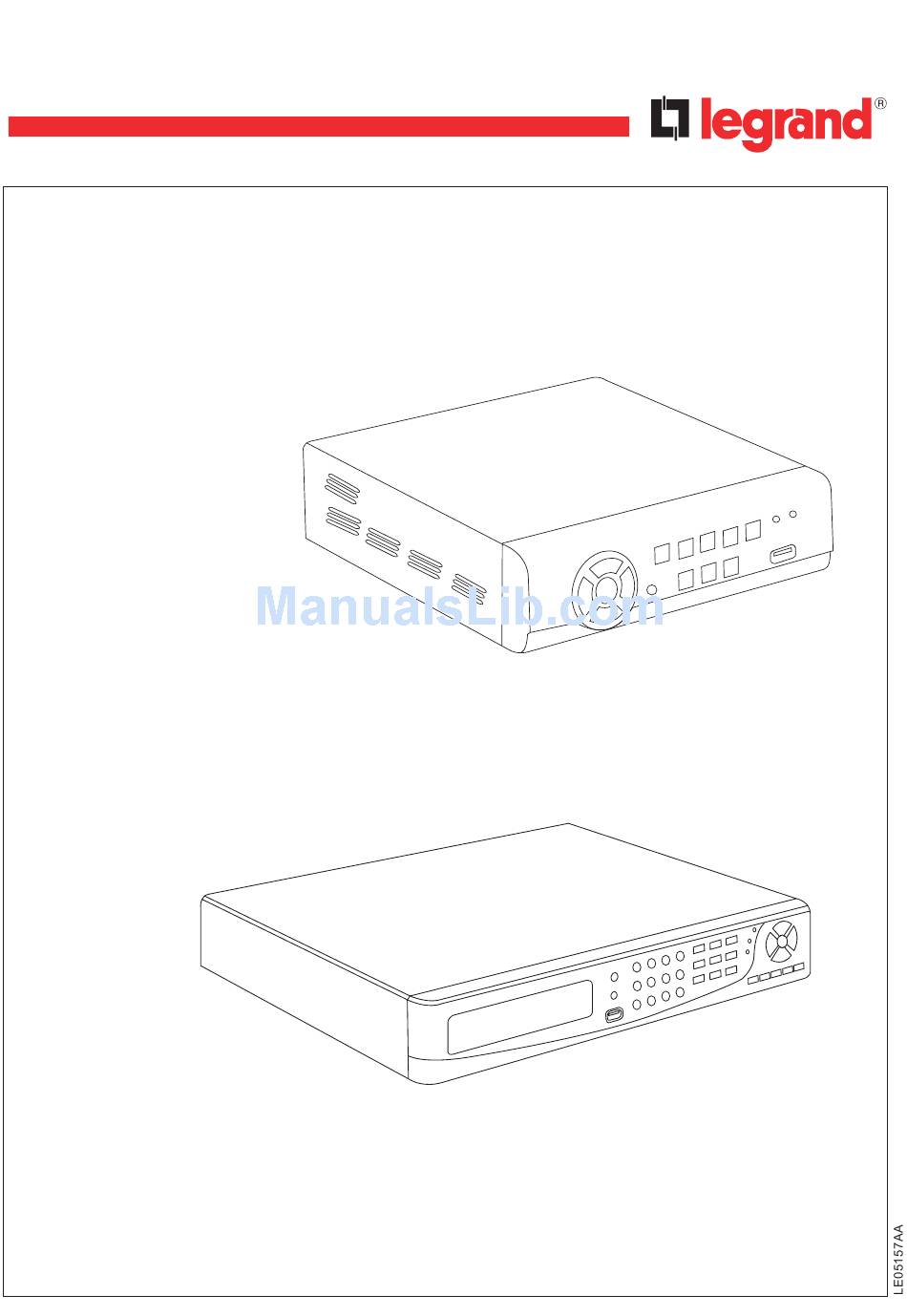

- Page 1 ADSL modem routers and recorders settings • 4 305 53 / 54 / 55 4 305 53 4 305 54 4 305 55...
-
Page 2: Table Of Contents
Contents 1. Rules .................... 3 2. Recorders settings ................. 4 Define a recorder name ....................4 Local network setting .......................4 Enable http server ......................5 3. Modem-router settings ................6 Fixed IP ...........................6 Dynamic IP .........................6 4. Remote acces to the recorder ............... 8... -
Page 3: Rules
1. Rules To allow remote ADSL access to the recorder, the modem router have to be set and the access way the recorder defined. The port used by the recorder is the port nb. 80. The modem router network address (IP address) can be either fixed (always the same) either dynamic (regularly changed, DHCP mode). -
Page 4: Recorders Settings
2. Recorder settings For a detailed explanation of the setting, refer to the recorder manual. 2.1 Define a recorder name Icon “SyStEM SEtuP” - Enter a name without space. - “OK” to validate. DVR - home 2.2 Local network setting Icon “NEtwoRk SEtuP”... -
Page 5: Enable Http Server
2.3 Enable http server Icon “NEtwoRk SEtuP”, “HttP SEtuP” - Check the box “Enable”. - Select the port number “80” (default setup). - Validate with 2 times “OK”. Note: If the port number “80” is used by another application, choose an other unused port number (for example in the range 14 000 to 14 999). -
Page 6: Modem-Router Settings
3. Modem-router settings For a detailed explanation of the setting, refer to the modem router manual. Pictures are given as example. They are coming from NETGEAR® modem routers manual. 3.1 Fixed IP NAT setting (Network Address Translation): - Service definition: give a name (“DVR” for example), type = TCP , start port = 80, end port = 80 (default setup, or the number previously chosen). - Page 7 Enable the automatic updating of Ip address. This is often done by a little soft installed on a Pc connected on the local network (“DynDNS updater” for the www.dyndns.com site). Enable DNS service: - Enable DNS account on the modem router: (for the example: Host name: “peter_home_dvr”, user name / password: it is the crea- ted DNS account user name and password).
-
Page 8: Remote Acces To The Recorder
4. Remote acces to the recorder - Fixed IP : Enter the modem router IP address in the Internet Explorer address bar, the IP address is furnished by the IAP following with the port number (for example : 80.10.50.1:80). - Dynamic IP with DNS account : Enter the modem router name in the Internet Explorer address bar (for the example of the §...
