No: 29188 - 01/20 rev. 1
Connecting LMCS-100 to a Network and Creating a Site ........................................................................................... 1
Connecting to a Network or Room ............................................................................................................................ 2
Logging in to Your Account or Requesting an Account ............................................................................................. 2
Creating a Site .......................................................................................................................................................... 3
Connecting to a Network with both Wired and Wireless Rooms .............................................................................. 3
LMBR-650 Network Setup ............................................................................................................................................. 3
Network/Device Discovery and Device Pairing Wizard .............................................................................................. 4
Adding Unassigned Devices to a Room and Pairing Them ..................................................................................... 13
Discovering Wired Devices Connected to an LMBC-650 ......................................................................................... 13
Viewing LMBR-650 and Wireless Network Information ............................................................................................ 14
Changing the Primary LMBR-650 in a Multi-LMBR Project .................................................................................... 15
BACnet Information Section ................................................................................................................................... 16
Using the Diagnostics Section to Check and View Network Information. ............................................................... 16
Resetting or Replacing an LMBR-650 in an Already Commissioned Network ...................................................... 16
If Replacing or Resetting an LMBR-650 ................................................................................................................. 16

CONNECTING LMCS-100 TO A NETWORK AND CREATING A SITE

Connecting to a wireless network requires creating a site, so that the network is secure and accessible only to those with proper
permissions.
The following is a basic summary of these steps:
• Open LMCS-100
• Log into your user account or request an account if you do not have one.
• Create a site, or open a previously created site.
• Select the connection Type and Adapter use to connect to the network. (This can be done before or after logging in and creating a site.)
• Discover the LMBR-650s used in this site. This will lock the LMBRs so that they can only be accessed by your account or other
authorized accounts.
• Discover all wireless DLM devices within range of the LMBR. Only devices wit the same Network and Channel settings as the
LMBR will be found. New devices all ship with default values, so in a new site all devices should be found.
• Select the devices that you want to be part of the network with the LMBR. After selection they will migrate to a new Network with the
LMBR. In a scenario with multiple LMBRs, each LMBR will have its own Network and Channel settings, so each group of devices
you select will migrate to the Network of that LMBR.
• For each room pair the wireless devices together so that they only communicate with each other and not with devices in other rooms.
Once these steps are complete, you can adjust device parameter values for rooms that were already creating using an off-line project,
or modify current parameters in real time and send them to the devices.

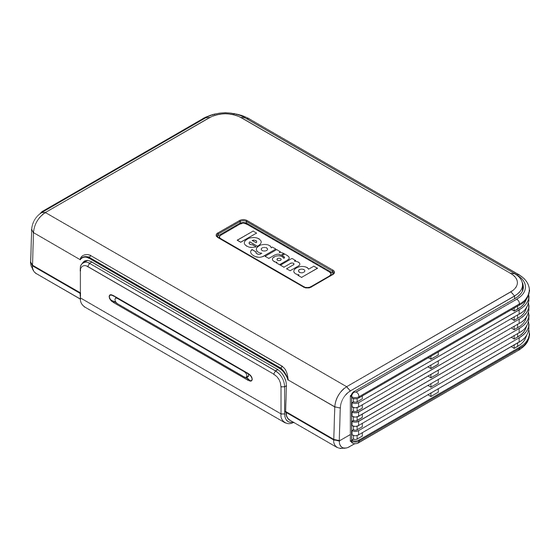

Wattstopper
LMBR-650 Setup and Commissioning
User Guide
This document provides step-by-step details on the process needed to commission
one or more LMBR-650s and discover all wireless devices in a DLM network.
This document covers only the steps needed for commissioning and wireless
discovery. For further details on LMCS programming, including creating wireless
scenes and schedules, see the LMCS-100 Operation Manual, available at:
https://www.legrand.us/wattstopper/digital-lighting-management/configuration-
controls/dlm-computer-interface-tools-and-software.aspx.
For details on using DLM Dashboard software with the LMBR-650, see the DLM
Dashboard User Guide.
CONTENTS
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wattstopper LMBR-650 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND Wattstopper LMBR-650

Summary of Contents for LEGRAND Wattstopper LMBR-650

  • Page 1: Table Of Contents

    This document covers only the steps needed for commissioning and wireless discovery. For further details on LMCS programming, including creating wireless scenes and schedules, see the LMCS-100 Operation Manual, available at: https://www.legrand.us/wattstopper/digital-lighting-management/configuration- controls/dlm-computer-interface-tools-and-software.aspx. For details on using DLM Dashboard software with the LMBR-650, see the DLM Dashboard User Guide.

  • Page 2: Connecting To A Network Or Room

    Connecting to a Network or Room Select the connection appropriate to the project you are working on. Select “Network”, then select the Adapter that provides the connection to that network. Double-click here to refresh the list of all the currently available ways to connect to the DLM system...

  • Page 3: Creating A Site

    3. After requesting an account, an email will be sent to the address entered here once the account has been authorized. LMCS will not provide any indication that the account has been authorized. Creating a Site After logging in, the next step is to create a Site. A site allows you to save all Project parameters onto the cloud, so they can easily be accessed from more than one computer.

  • Page 4: Network/Device Discovery And Device Pairing Wizard

    NOTE: It is Wattstopper best practice that the Primary LMBR be used only for communication with other LMBRs and not have any wireless devices assigned to its network. Therefore, the Primary LMBR will often be mounted in a network enclosure and will only communicate via Ethernet cable and not with its wireless radio.
  • Page 5 LMBR Network Configuration Network Configuration with fields enabled 4. Click Create. The LMBR will be configured for the chosen Network ID and Channel. A pop-up will appear informing you that the clock on the LMBR has been reset. You can update the time in the LMBR using the Site Time/Location Tool. See the LMCS-100 Operation Manual for details.
  • Page 6 LMBR IP Configuration 9. Select “Use the following IP Address:”. The fields are enabled and populated with default values. 10. Change the values of the different parameters, if needed. Note that the default IP address will be different from the value assigned through DHCP.
  • Page 7 Discovering Commissioned Devices The next series of steps allow you to discover the uncommissioned (at default) wireless DLM Devices and assign them to the same Network ID and Channel as a specific LMBR. 15. Click Next. The LMBR Selection dialog displays, showing each LMBR that you previously configured, with a Wireless network below each LMBR.
  • Page 8 Config Button Config Button (Behind Switch Plate) Once woken up, the battery devices will remain awake for five minutes while the LMBR establishes contact. However, once you begin the next series of steps, LMCS takes control of the devices and they will remain awake for as long as is needed for LMCS to complete the process of moving the devices to the LMBR’s network and pairing the devices in rooms.
  • Page 9 17. Once all the desired devices have been fully discovered, click on the checkbox next to each device that you want to move to LMBR’s network. The LMBR begins the process of moving the device to the new Network ID and Channel of the LMBR, and the checkbox will turn blue when complete.
  • Page 10 Room Assignment 19. Highlight the building name to enable the Add Area and Add Room buttons, then click Add Room. A dialog pops up. Enter the room name and click OK. Repeat, adding as many rooms as desired. You can also click Add Area to name and add areas. You can then drag and drop the rooms into the areas, exactly the same as when creating areas and rooms in the Devices tree.
  • Page 11 22. The status bar at the bottom shows the pairing process. Once the process completes, click Next or Finish. IMPORTANT: If there is more than one LMBR and you still need to assign, click Next. Do not click Finish until all LMBRs and devices have been configured and assigned.
  • Page 12 Read Devices 25. Wattstopper recommends at this point that you read information from all devices in the project. This will read in the default wireless scenes that are created automatically when devices are paired, along with any other current values for device parameters. Click Read in the Commission section of the top ribbon.

  • Page 13: Adding Unassigned Devices To A Room And Pairing Them

    ADDING UNASSIGNED DEVICES TO A ROOM AND PAIRING THEM If you did not assign all devices to a room during the discovery wizard, or if you have added additional devices and discovered them after having assigned other devices, you can easily add them to a room and pair them. 1.

  • Page 14: Viewing Lmbr-650 And Wireless Network Information

    Discover Wired Devices Once the “Finished LMBC-650 discovery” message displays, click Close. The wired devices will now show up under the LMBC-650 in the tree and can be edited like any other wired DLM devices. To discover wired devices that are connected to a single LMBC-650, select the LMBC-650 in the Devices tree and click Discover in the information section.

  • Page 15: Changing The Primary Lmbr-650 In A Multi-Lmbr Project

    LMBR IP Configuration You can obtain the IP address automatically, or select “Use the Following IP Address” to manually enter all of the details. NOTE: You will need to rediscover the LMBR after changing the values. If you expand the tree to show a wireless network and highlight it, the Info section displays information about the network and provides a few useful tools.

  • Page 16: Bacnet Information Section

    BACnet Information Section If you have completed the Discovery process (the normal situation), this section will be disabled and will display the current values for the various parameters. They cannot be changed. However, if you manually add an LMBR-650 to the building, this section will be available for editing.
  • Page 17 It is not necessary to use the same static IP address as was used previously. In order to enhance the security of our products, Legrand ships its products with all insecure ports closed and insecure protocols disabled. You are free to configure your device as needed, but in doing so note that you may be decreasing the security of your device and any information contained in the device.
