No: 24260 – 09/16 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: EW-205-24
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Box Contents
• One (1) EW-205-24
• Accessory bag:
Cover plate for 4" round outdoor junction box, with two
cover plate attachment hole plugs, cover plate gasket,
cover plate screws & screw covers (4 ea), lens mask,
wire nuts (3)
• Installation instructions
Please read all of the installation instructions before installing
this product.

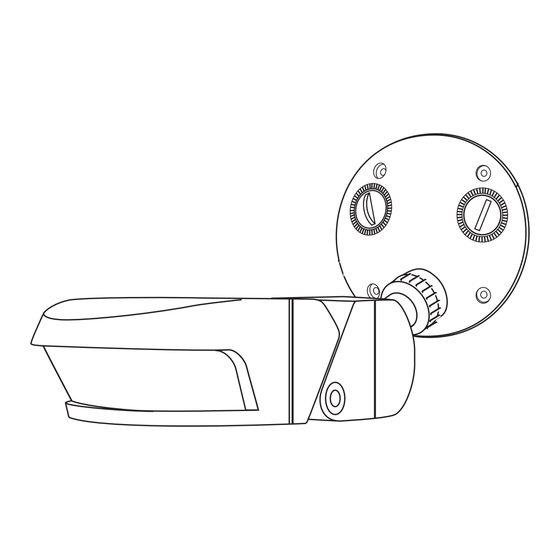

The EW-205 sensor is an outdoor passive infrared (PIR) motion sensor rated for wet conditions. It installs onto a standard round
outdoor junction box using the supplied junction box cover plate.
The EW-205 sensor uses advanced PIR technology and a superior lens design to detect motion. PIR sensing is passive, and detects
the difference between infrared energy in motion and the background space.
The EW-205 sensor provides a +24VDC control output upon motion detection. This output can be connected to a WattStopper power
pack for on/off lighting control, or to a WattStopper DM-105 or DM-115-WP Outdoor HID Bi-Level control module for high/low control.
Coverage is shown as tested in a controlled setting with the unit mounted at 8 ft at a 10° tilt from the horizontal surface. The actual
outside coverage pattern may vary substantially at the specific installation site and is dependent on several factors including weather
conditions, external light sources, mounting height and sensor tilt.
UNIT DESCRIPTION
COVERAGE PATTERN
Coverage adjustment:
The front of the sensor housing can be moved
up and down for easy coverage adjustment.
Wattstopper
Low Voltage Outdoor Motion Sensor
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación

SPECIFICATIONS

Voltage:
EW-205-24 ............................................................................. +24VDC
Current Consumption ....................................................................7mA
Power Supply ........................Wattstopper Power Pack or DM-105 module
B Series power packs supply power for up to 11 sensors.
BZ Series power packs supply power for up to 15 sensors.
DM-105 HID Bi-Level control module supplies power for up to two
sensors.
DM-115-WP Outdoor HID Bi-Level control module supplies power for
up to two sensors.
Coverage ..............................................................................................270°
Time Delay Adjustment ........................................................12sec.–16min.
Light Level Adjustment ......................................................... 0.5FC–200FC
Operating Temperature ...................................-40° to 130°F (-40° to 55°C)
Mountable Locations .............................. Pole, wall, ceiling or under eaves
IEC-IP-55 Raintight Rated
U.S.Patents: 4,787,722; 5,640,113
®

Advertisement

Table of Contents
loading

Related Manuals for LEGRAND Wattstopper

Summary of Contents for LEGRAND Wattstopper

  • Page 1: Specifications

    The EW-205 sensor provides a +24VDC control output upon motion detection. This output can be connected to a WattStopper power pack for on/off lighting control, or to a WattStopper DM-105 or DM-115-WP Outdoor HID Bi-Level control module for high/low control.

  • Page 2: Motion Sensor Placement

    COVERAGE PATTERN (CONT’D) View Masking: Opaque adhesive tape is supplied so that sections of the sensor’s 8 ft lens can be masked to restrict (2.4 m) coverage in unwanted areas. EW-205-24 Side 9.5 ft 25 ft 52.5 ft 270° coverage View (3 m) (8 m)

  • Page 3: Mounting And Sensor Positioning Guidelines

    MOUNTING AND SENSOR POSITIONING GUIDELINES WARNING: LAMP BULB MUST BE 1/2 INCH OR MORE FROM SENSOR HOUSING Avoid runoff; sheltered locations preferred Mount to flat, stable, vibration-free surface Install sensor no higher than 20’ from ground Mount motion sensor level Aim motion sensor downward to limit sensing Do not mount by vents or above lamps...

  • Page 4: Wiring And Installation

    WARNING: TURN POWER OFF AT THE Pack, or a Wattstopper HID Dimming Module. CIRCUIT BREAKER BEFORE INSTALLING • Each Wattstopper B series power pack can supply power for SENSOR.SENSOR MUST BE INSTALLED up to 11 sensors. BY QUALIFIED PERSONNEL ONLY.

  • Page 5: Testing After Installation

    Connecting to a DM-115-WP HID Dimming Module Wire the sensor to a WattStopper DM-115-WP as shown below: • RED wire from sensor to RED wire from the DM-115-WP cable. • BLACK (common) wire from sensor to BLACK wire from the DM-115-WP cable.

  • Page 6: Making Changes

    MAKING CHANGES If you want the lights to turn on/high sooner—turn the light level dial toward the sun icon, as desired; this raises the light level setting. (Remember, the sensor must detect motion for lights to turn on.) • The lights turn on sooner in the evening. •...

  • Page 7: Ordering Information

    ORDERING INFORMATION Catalog # Description EW-205-24 +24VDC, 270° Outdoor PIR Motion Sensor, includes cover plate B230E-P Power Pack: 230VAC, 50/60Hz, 150mA 20A ballast/13A incandescent B347D-P Power Pack: 347VAC, 60Hz, 150mA. 15A ballast BZ-50 Power Pack: 120/277VAC, 50/60Hz, 20A ballast or incandescent BZ-150 Power Pack: 120/277VAC, 50/60Hz, 20A ballast or incandescent, with Hold-On and Hold-Off capability BZ-200...
  • Page 8 (5) years. There are no obligations pour une période de cinq (5) ans. Wattstopper de obra por un período de cinco (5) años. No or liabilities on the part of Wattstopper for ne peut être tenu responsable de tout dommage...
