- Page 1 4 Port Gigabit Enhanced Router/Switch (P/N DA1054) User’s Guide 1308150 REV. C 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
-
Page 2: Ce Mark Warning
All trademarks and brand names are the property of their respective proprietors. Specifications are subject to change without prior notification. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com... -
Page 3: Table Of Contents
2.3.1.2 WAN Interface Setup ................19 DHCP Client ....................20 Static IP ....................... 21 PPPoE ......................22 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com... -
Page 4: Introduction

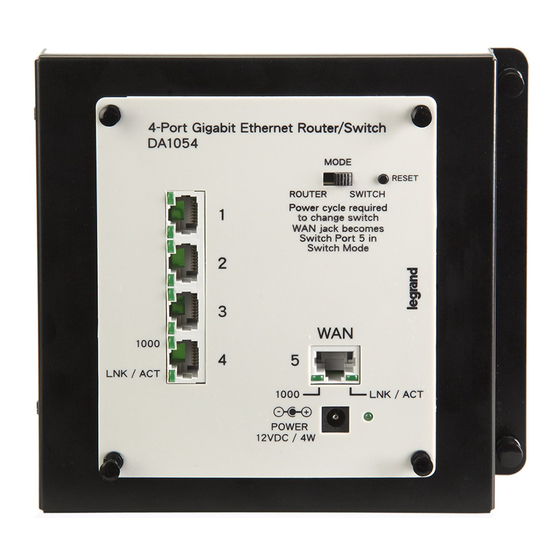

1.0 Introduction The Legrand 4 Port Gigabit Enhanced Router/Switch (P/N DA1054) is a flexible hardware configurable switch/router product designed to be used as a router with an integrated 4-port Gigabit Ethernet switch, or as a 5-port Gigabit Ethernet switch for use with a 3 party external router. -
Page 5: Features
LAN Features DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. DA1054 can act as a DHCP Server for devices on your local LAN and WLAN. PC database. LAN users can be added manually or discovered automatically by DA1054, through this built-in user database, administrators are able to have a centralized networking management. -
Page 6: Minimum Requirements
Network Interface Card (NIC) for each Personal Computer (PC) PCs with a Web-Browser (Internet Explorer 7.0 or higher, or or higher) Firefox 3.6 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343... -
Page 7: Detailed Physical Description
Off means no LAN or WAN connection. 1000 – On solid green indicates port is operating at 1000 Mbps. Off indicates otherwise. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. -
Page 8: Installation
1.4 Installation The DA1054 4 Port Router/Switch is best installed during new construction in two steps; at “rough- in” after the Electricians are done, but prior to drywall being installed, and at “trim-out” after the drywall is installed and painted. These steps are detailed below: A. - Page 9 NOTE: Use proper tools and standard TIA 568A rules to prep and terminate the Cat 5e/6 cable, such as a Cat 5 Cable Stripper, an RJ45 Crimp Tool and a 110 Punchdown Tool. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
-
Page 10: Initial Configuration
1.5 Initial Configuration The DA1054 4 Port Gigabit Router/Switch is typically configured in one of two ways; (1) From a portable PC connected through one of the Local Switch Ports on the Router/Switch Module in the enclosure, or (2) From a PC in one of the rooms of the house, connected through an outlet in the room to the enclosure where it is patched to (or directly connected to) one of the Local Switch Ports (see Figure 3). - Page 11 “Operation Mode” or “Management” to change your User Name or Password, perform a firmware upgrade, restore factory defaults, or backup/restore system settings. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
- Page 12 To start Broadband router web configuration, you must have one of these web browsers installed on computer for management. Microsoft Internet Explorer 6.00 or higher with Java support 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
-
Page 13: Network Settings
Via standard web browser, you can configure and check machine status from anywhere around the world. This User’s Guide introduces you to the steps necessary to get the DA1054 functioning. For more advanced settings and features refer to the Owner’s Manual for this product. - Page 14 Step 1. Select the WAN Access Type In this page, you can accord your network environment to select the Gateway mode or the Bridge mode. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
- Page 15 Step 3. Setup LAN Interface The default IP address and the subnet mask is 192.168.40.254 and 255.255.255.0, you can change the parameter in this page. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
- Page 16 Step 5. Click the Finished button. You will then see the Finish page as shown below. The Router will reboot automatically to make your configuration to take effect and finish the Setup. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
-
Page 17: Network Operation Mode
IP to ISP through WAN port. The connection type can be setup in WAN page by using Static, DHCP Client, PPPOE, PPTP or L2TP. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com... -
Page 18: Tcp/Ip Settings
Internet to. Type in this section to replace the WAN MAC address with the MAC address of that PC. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. -
Page 19: Wan Interface Setup
The default MTU (Maximum Transmission Unit) value is 1492 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com... -
Page 20: Dhcp Client
After completing the settings on this page, click Apply changes Apply Changes button to save the settings. Reset Click Reset to restore to default values. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com... -
Page 21: Static Ip
You can enter another DNS server’s IP address as a backup. DNS 2 and 3 servers will be used when the DNS 1 server fails. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. -
Page 22: Pppoe
The default MTU (Maximum Transmission Unit) value is 1452 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
