LEGRAND Wattstopper Installation Instructions Manual

No: IS-00708 – rev. B
EQ73-LCAP • Les Numéros de Catalogue • Los Números de Catálogo:
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Project
• Widescreen orientation only
• Equinox platform provides built-in widgets using Legrand proprietary auto discovery methods for fast automatic screen design
• Equinox 73-LCAP fully incorporates Legrand's consistent user experience interface, eliminating learning curves normally
associated with switching between interface devices
• Powered over PoE*/PoE+ Ethernet
- *PoE optional Ethernet 4 Port PoE Injector part number DA2400 or COM-POE-SWITCH
• Communicates over Ethernet Bus (InFusion controller and Equinox should be connected to the same local network)
• Firmware upgradeable from Design Center over Ethernet
• Built-in ambient light sensor for "active," AUTO mode screen brightness and off when dark option when "inactive"
• Inactive mode dims or turns screen off in 1 minute if no activity
• Built-in proximity activation, 6" maximum, sets screen to active brightness when approached
• Dual operation mechanical buttons, bottom left and right;
- Left navigates to default widget
- Right may be programmed with a task from Design Center
• Equinox 73-LCAP uses the same widgets as Android tablets and phones, and iPads
• Three types of users are supported on the system. Using a variety of users you can limit what is available to specific individuals
as well as limit permissions.
- Administrators - All permissions and visibility into the system. Only one system-wide administrator can be assigned whose
password is set up at system startup. The admin password can be created or changed from within EQ view. It is not
dependent on the first time initialization screen.
- Managed Users - A password protected user who can have a wide variety of permissions granted to them, including the
creation of other users. There is no limit to the number of managed users.
- Guest Users - Recommended to be the default user on all screens in public areas, guest users cannot make any changes
to the system and have no permissions to set. They cannot be password protected.
• Top of screen displays:
- Administrator/user details
- Access help topics
- Manage settings including appearance, access/permissions, areas and rooms, devices, events, groups, repair, schedules,
scenes, and systems
• Main screen automatically displays widgets (order may be changed in user/settings directly from the app) including shades,
lighting, home, scenes, and divide/combine
• Raise/lower dimmable loads with graphical icons and text track color load status
No: IS-00708 Rev. B
Wattstopper
Architectural Dimming Equinox 73 LCD Touchscreen
French Description
Spanish Description
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
OVERVIEW

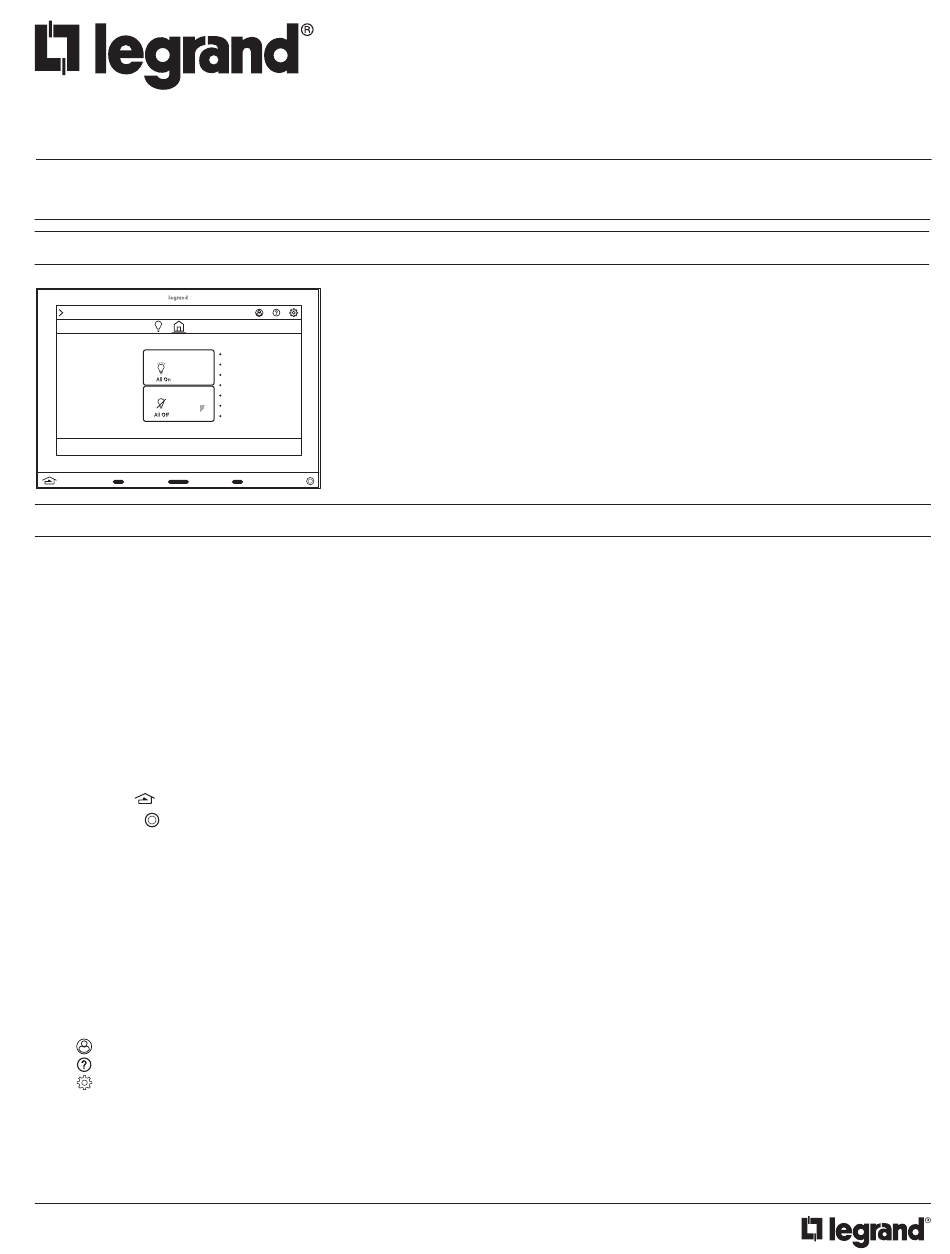

Legrand's Equinox 73-LCAP active matrix LCD touchscreen continues Legrand's
commitment to LCD in-wall control centers. The Equinox 73-LCAP LCD interface
is a dedicated system portal to whole system control. The 7" touchscreen displays
media rich widgets in a dashboard layout. Each widget's content has been carefully
designed to provide the ultimate user experience. Legrand's Equinox 73-LCAP
system uses self discovering technology, eliminating countless hours of tedious
programming. Navigate and control, with real time feedback, lighting, shades, timers,
scenes, and more through a single layer navigation experience.
FEATURES AND OPERATION OVERVIEW
1
®
, iPhones, and iPods
®
