LEGRAND LMBR-650 Installation Instructions

No: 26814 – 07/18 rev. r1
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: LMBR-650
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
The wireless border router manages the formation and configuration of
the 6LoWPAN wireless network and provides network connectivity via
wired Ethernet to a local area network (LAN). Wireless nodes connect
to the border router to establish mesh routing paths. The border router
also provides key information about the health of the mesh network in
the form of signal quality, device status, network status, and other real-
time network information such as energy monitoring. The border router
allows cloud connectivity, which can be used to update firmware in all
connected wireless devices, as well the LMBR-650 itself.
Each border router ships with the following components:
• LMBR-650 border router
• LMPB-100 Power Supply
• DC power adapter cable, DC barrel to RJ45 jack
• T- shaped mounting bracket
• Self tapping screws x 2
• Cable tie x 2
Not included:
• LMRJ cable connection between power adapter cable and LMPB-100
• CAT5e network cable for connection to LAN, DLM
Management software, and other BACnet devices
The LMBR-650 is intended to be mounted in a central location
for optimal communication with wireless bridges. It is rated
for installation in plenum or non-plenum ceiling spaces. For
projects designed by Wattstopper services, check drawing for
optimal border router placement.

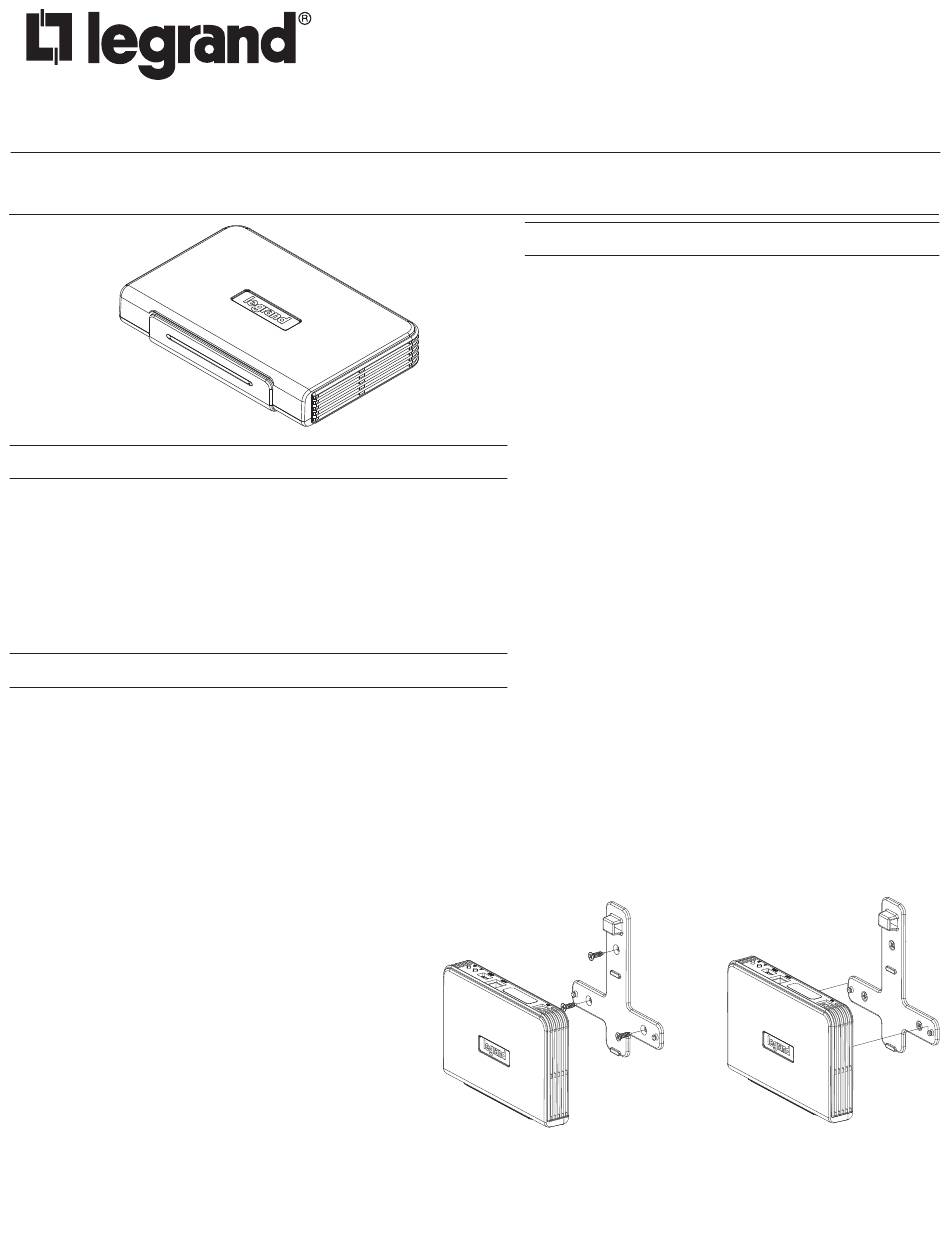

1. Using T-shaped mounting bracket, locate a suitable
vertical surface to mount the T-shaped bracket with
the two screw holes facing down (T upside down
orientation as shown) Use provided self tapping
screws to mount the T-adapter.
2. Once T-adapter is secure, locate the mounting holes
on back side of border router and T-shaped adapter.
With the border router network connections facing upward align the
border router over the mounting pegs and slide down to lock into
place.
NOTE: Typical coverage is a diameter of 100'. Wattstopper recommends that the LMBR-650 NOT be installed in an enclosure. If code
requires this, then the coverage area for the router is reduced by up to 50%.

DESCRIPTION

MOUNTING

Wattstopper
Wireless DLM Border Router
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación

SPECIFICATIONS

Power
Either ....................IRB powered using dedicated LMPB-100
.............(included) with DC barrel-to-RJ-45 connector cable
Or ............................. optional 120VAC plug-in power supply
Current Consumption ......................................... 65mA @24VDC
Wireless ...................................................IEEE 802.15.4 , 2.4gHZ
.... IPv6 Mesh (6LoWPAN / 802.15.4 / 2.4GHz), range 100 ft.*
............... Available Channels: 11–13, 15–17, 19–21, 23–25
...................Built-in Antennas: Two IPv6 Mesh with diversity
.................................................... Bandwidth: up to 156kbps
Device Security ......Secure-factory provisioned trusted hardware
................................... with Legrand-private certificate chain
....................................................... and signed ECC keypair
Network/IOT protocols
IEEE IPV6, BACnet, 6WLoWPAN
Connections ........ RJ45 10/100 Ethernet, 1 DC Barrel Connector
Storage ...................................................... Internal MicroSD Card
Time .................... Real-time clock with supercap 14 day back-up
Device Capacity ...........up to 50 LMBC-600 wireless bridges and
................................................................. 400 room devices
Wireless range ........................................................up to 100 feet
LEDs .....................................................power and network status
Dimensions .................................................W=6.8" L=4.4" H=1.2"
Environment ................................................... For indoor use only
Operating Temp ....................................32 to 131F(0 to 55C)
Storage Temp .................................... 23 to 176F(-5 to 80C)
Relative Humidity ........................... 5-95% Non-condensing
UL 2043 Plenum Rated, UL/C-UL (E101196), FCC, RoHS
*If LMBR-650 is mounted inside a metal enclosure, range
reduced by up to 50%
®
